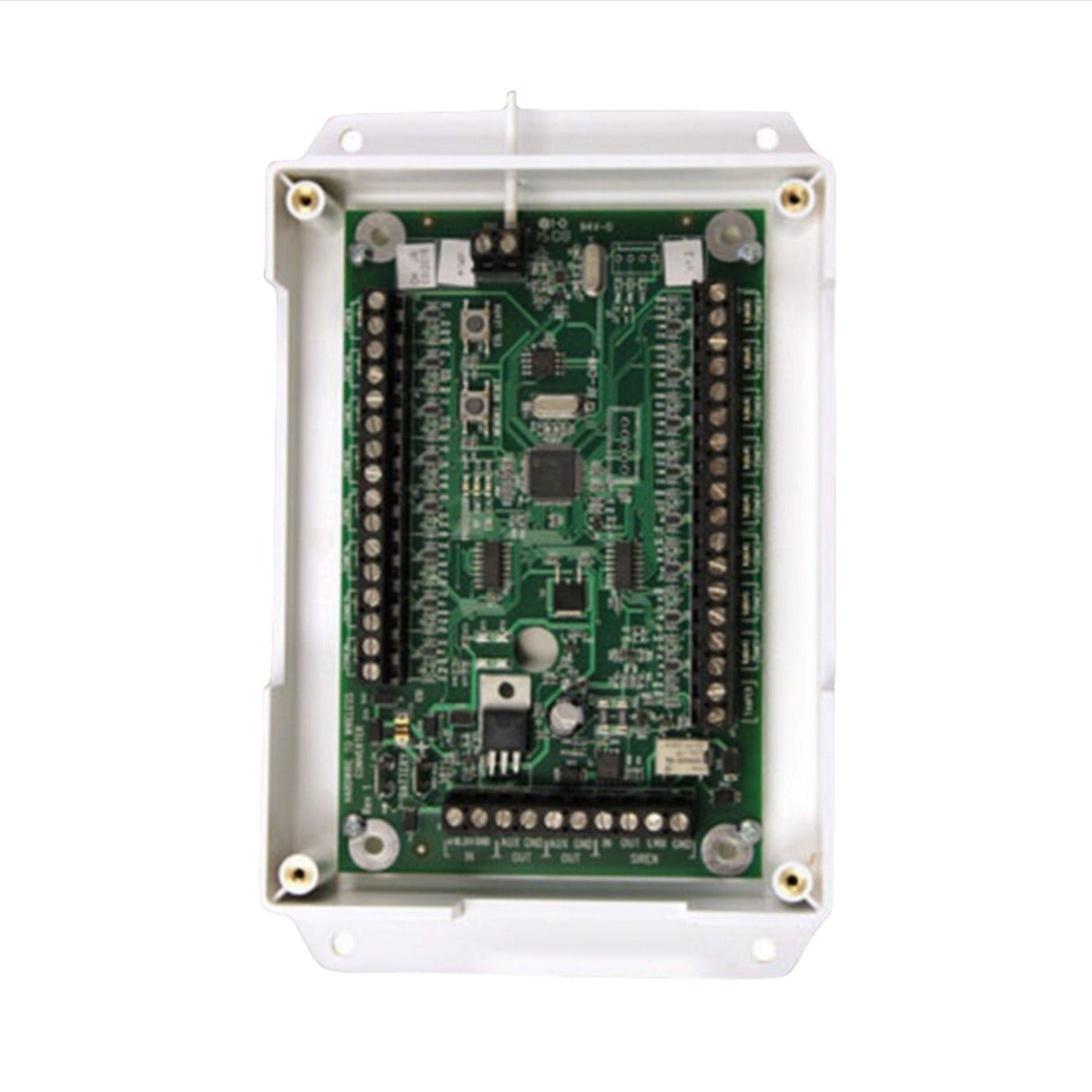

Qolsys IQ Hardwire 16-S Wireless Zone Connector for IQ Panel
The Qolsys IQ Hardwire 16-S Wireless Zone Connector for IQ Panel offers a seamless solution for integrating your existing wired sensors with the Qolsys IQ Panel. This powerful device eliminates the need to replace perfectly functional sensors during a system upgrade by effortlessly connecting up to 16 hardwired zones to your IQ Panel.
Encrypted S-Line technology ensures secure communication between the IQ Hardwire 16-S and your IQ Panel, while maintaining compatibility with legacy 319.5 systems for added versatility. The installation process is further simplified with automatic sensor resistor value learning and LED lighted zones that provide clear visual cues during setup and troubleshooting.
The Qolsys IQ Hardwire 16-S Wireless Zone Connector for IQ Panel boasts broad compatibility, supporting a wide range of wired sensors with EOL resistor learning for 1-10K Ohm resistors. It also delivers reliable power up to 500mA to your hardwired motion detectors, glass break detectors, and sirens. An optional backup battery can be integrated with the charging circuit, ensuring full supervision and power outage recovery.
Upgrade your security system to a wireless system without the hassle of replacing existing wired sensors. The Qolsys IQ Hardwire 16-S Wireless Zone Connector for IQ Panel provides a perfect solution for a seamless and secure transition.
Key Features
- The IQ Panel is safeguarded by the secure S-Line sensor technology, ensuring the protection of transmitted signals while also being compatible with older 319.5 systems.
- The installation and troubleshooting process is made simpler with LED lighted zones, aiding in the "learn-in" process.
- The EOL resistor learning feature is capable of supporting resistors ranging from 1-10K Ohms.
- Hardwired motion detectors, glass break detectors, and sirens can receive up to 500 Milliamps of power.
- A charging circuit is included for the back-up battery, which is fully supervised and capable of recovering from power outages.
Technical Specifications
Input Voltage
16.0VDC Plug-In Transformer
Backup Battery
12VDC 5AH Max (optional)
Dimensions
5.5” X 3.5”
Operating Temperature
32 to 122F (0 to 50C)
Humidity
95% RH Max
EOL Supervision
1K to 10K Ohm
Input Zones
16 (must have resistor)
Zone Type
N/O or N/C compatible
Auxiliary Voltage Output
12VDC @ 500mA
Tamper Zone
Optional zone input for tamper
Relay Contact
60VDC/1A Max drives siren or other device
