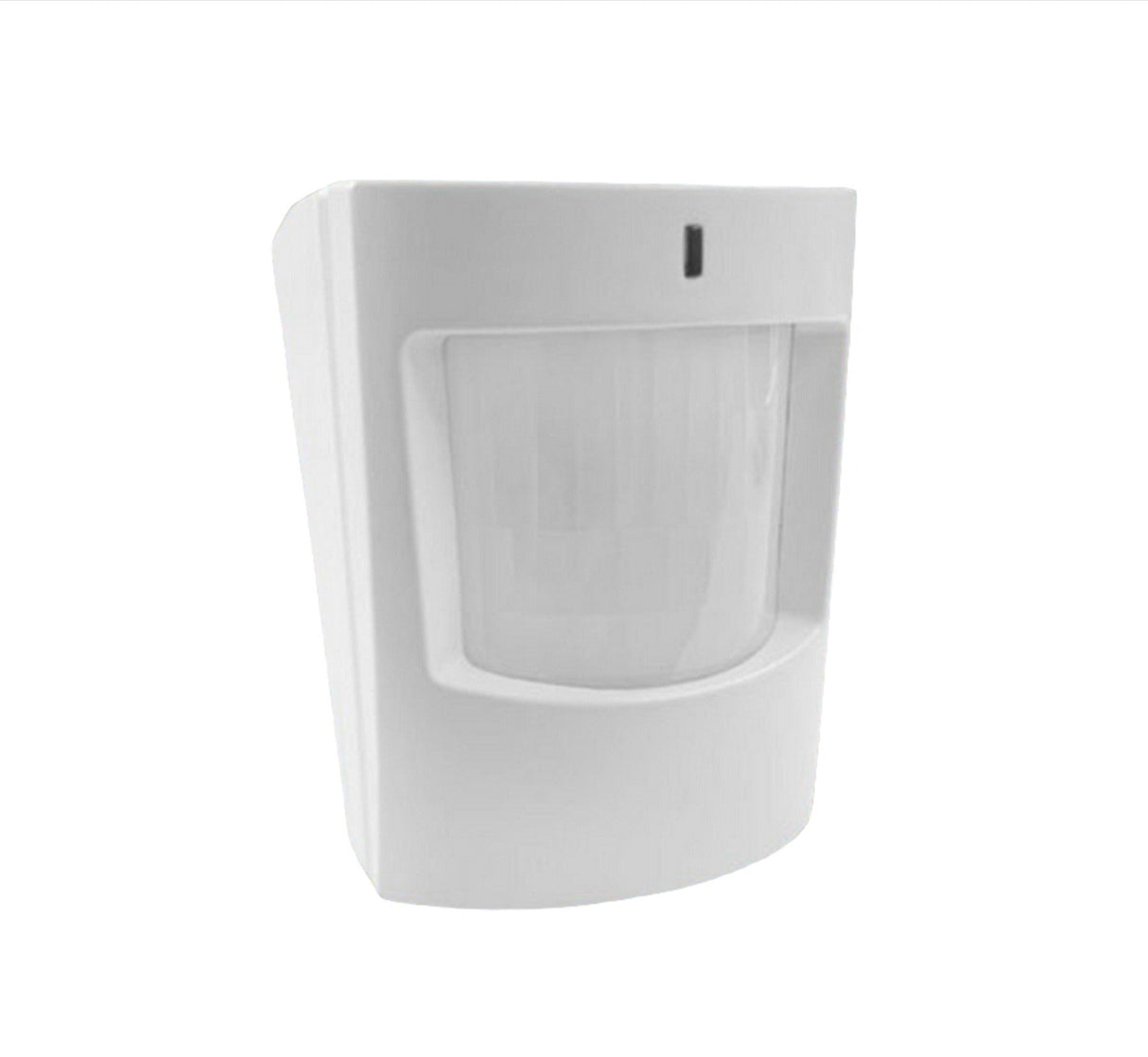

The Qolsys IQ Motion-S Encrypted Passive Infrared Sensor is an affordable and powerful upgrade to your home security system. This encrypted passive infrared (PIR) motion detector offers exceptional protection at a budget-friendly price. S-Line technology, a proprietary innovation from Qolsys, encrypts communication between the sensor and the IQ Panel, ensuring the integrity of your security system.

The Qolsys IQ Motion-S Encrypted Passive Infrared Sensor boasts a wide coverage area, detecting motion up to 30 feet in open spaces. This comprehensive protection ensures peace of mind throughout your home. Pet owners will appreciate the built-in pet immunity, which eliminates false alarms triggered by furry friends weighing up to 40 pounds. The sensor offers versatile mounting options, allowing for easy installation on either a flat surface or corner for optimal placement within your home.

The Qolsys IQ Motion-S Encrypted Passive Infrared Sensor integrates seamlessly with smart home automation systems. Create custom rules to trigger actions when motion is detected, such as automatically turning on lights upon entering a room. This combination of robust security features and smart home compatibility makes the Qolsys IQ Motion-S the perfect solution for homeowners seeking to enhance their security and create a more automated living space.

Key Features

• Safeguards signals transmitted to the IQ Panel through encrypted S-Line sensor technology, with compatibility for legacy 319.5 systems

• Offers security range of up to 30 feet in expansive open spaces

• Enables customization of rules like activating lights when someone enters a room or setting off alarms upon detecting intruders

• Pet immunity for animals weighing up to 40 pounds

Technical Specifications

Code outputs
Paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery
Transmitter Frequency
319.5MHZ +-15KHz
Transmitter Bandwidth
24KHZ
Modulation type
ASK-OOK
RF output power
91.1dBuV +/5% at 3m
Sensor Range
0 ft (9.1 m) x 40 ft (12.2 m)
Maximum Horizontal Sensing Angle
80°
Operating Temperature
-10˚C~50˚C
Relative Humidity
5-95%
Non-Condensing Storage Temperature
-40˚C to 80˚C
