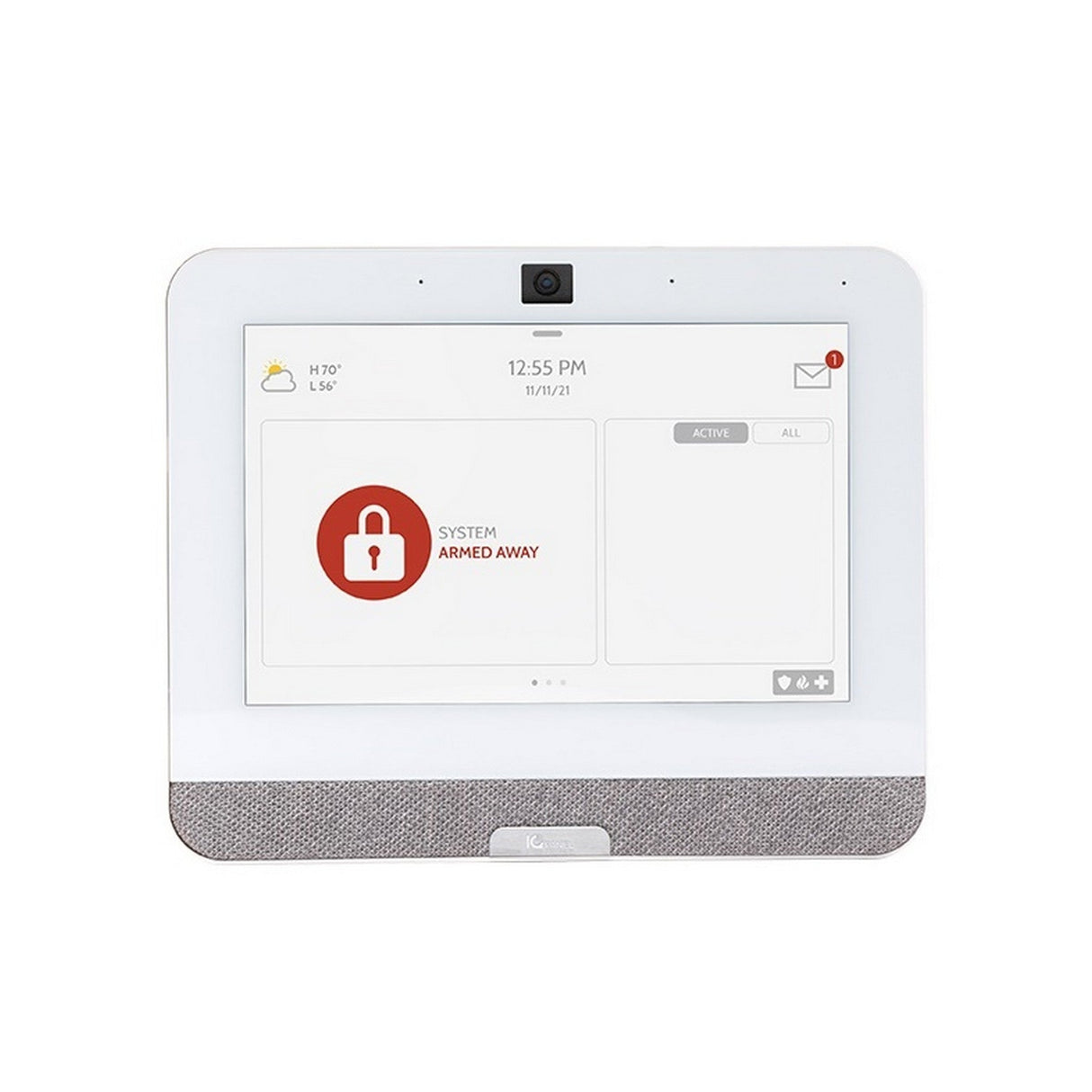

Qolsys IQ Panel 4 All-In-One Smart Home Control Panel - 319.5 MHz
The Qolsys IQ Panel 4 All-In-One Smart Home Control Panel is an all-in-one smart home control panel with a built-in camera, offering a complete security and automation solution for homes and businesses (AT&T service enabled) .
Qolsys IQ Panel 4 All-In-One Smart Home Control Panel boasts the easiest installation on the market. The SmartMount system and internal antennas eliminate complicated wiring, while the on-screen Installation Wizard guides you through the process step-by-step. This ensures a smooth and frustration-free setup experience.
Qolsys IQ Panel 4 All-In-One Smart Home Control Panel provides unmatched connectivity with dual-path LTE and Wi-Fi. Additionally, it supports a wide range of security and automation protocols including PowerG, Z-Wave 700 Series, and Bluetooth 4.2, allowing you to connect a variety of devices to your system.
Enjoy a superior audio experience with Qolsys IQ Panel 4 All-In-One Smart Home Control Panel. It features QuadSound Audio Streaming, letting you play music directly from your smartphone using Bluetooth to its powerful four 4-watt speakers.
Qolsys IQ Panel 4 All-In-One Smart Home Control Panel goes beyond basic security with advanced features. For convenient access, you can disarm the system using Bluetooth touchless disarming. Live View allows you to monitor your property in real-time, while Live Answer enables two-way communication. A built-in glass break sensor provides added protection for your peace of mind.
The built-in 8MP, 120Ā° wide-angle camera with FlexTilt provides exceptional video quality with clear and expansive views. Use Live View to check on your property anytime, capture disarm photos for verification, and record alarm videos for evidence.
Qolsys IQ Panel 4 All-In-One Smart Home Control Panel is a versatile solution that can be used in various settings. It is well-suited for residential homes, commercial properties, multi-dwelling units (MDUs), and builder projects. It even offers wellness support features, making it a comprehensive choice.
In short, the Qolsys IQ Panel 4 All-In-One Smart Home Control Panel is an all-in-one smart home control panel that delivers exceptional security, easy installation, robust connectivity, innovative features, and comprehensive compatibility, making it a perfect choice for homeowners and businesses alike.
Key Features
- Enhanced Connectivity Options
- LTE and WiFi Dual-Path, Dual SRF with PowerG, Z-Wave 700 Series, Bluetooth 4.2
- Superior Audio Quality
- QuadSound Audio Streaming with Bluetooth connectivity and four 4-watt speakers
- Unique Security Features
- Bluetooth Touchless Disarming, Live View, Live Answer, Built-in Glass Break
- High-Quality Camera
- 8MP 120Ā° wide angle camera with FlexTilt for Peek-in, Disarm Photos, Alarm Videos
Technical Specifications
LCD Display
Size
7-inch LCD
Resolution
1280 x 800 pixels
Brightness
300 cd/m2
RGB Color
24bit, 16.9 Million Colors
Touchscreen Type
Capacitive glass multi-touch
User Codes
Up to 242 Role-based (Dealer, Installer, Master, User, Guest, Duress)
Network
WiFi
802.11 a/b/g/n/ac dual band 2.4/5GHz - including built-in access point capability
Cellular
LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 Non-FirstNet, 26)
Z-Wave Plus (700)
Up to 137 Devices 137 total (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.)
PowerG
Up to 128 Devices 915 MHz Long Range Secure Encrypted 2-Way Wireless
Security RF
Up to 128 Devices Depending on the model: Either S-Line Encrypted 319.5 MHz, 345 MHz, or 433 MHz
Bluetooth Disarm & Audio Streaming
Bluetooth Low Energy (BLE) 4.2
Flash Memory Internal Storage
16GB NAND Flash
LED Indicator Status
LED Triple full color RGB LED
Speaker/Siren
QuadSound 4x front-facing 4W speakers and 85-decibel siren
Front Camera 8MP Wide-Angle, 120Ā° Field-of-View, Fixed-Focus Camera, with Flex-Tilt Adjustment
Microphone
3 MEMS (Micro-Electro-Mechanical System) Microphones with Echo Cancellation
Tamper Switch
Dual panel and wall tamper with spring release and Smash and Grab reporting
Battery Type
18650 Rechargeable Lithium Ion 3000mAh Rated for over 24 hours
Buttons, Hard Button
Single wake/sleep button, all user controls through touch interface
Mechanical Dimensions
6.1āH x 7.5āW x 1āD (155mm x 191mm x 26mm)
Power Supply
7v DC 1000mA CC, Input 100-240VAC 50/60Hz Adpater evaluated at 120vAC for UL/cUL
Mount Back Plate

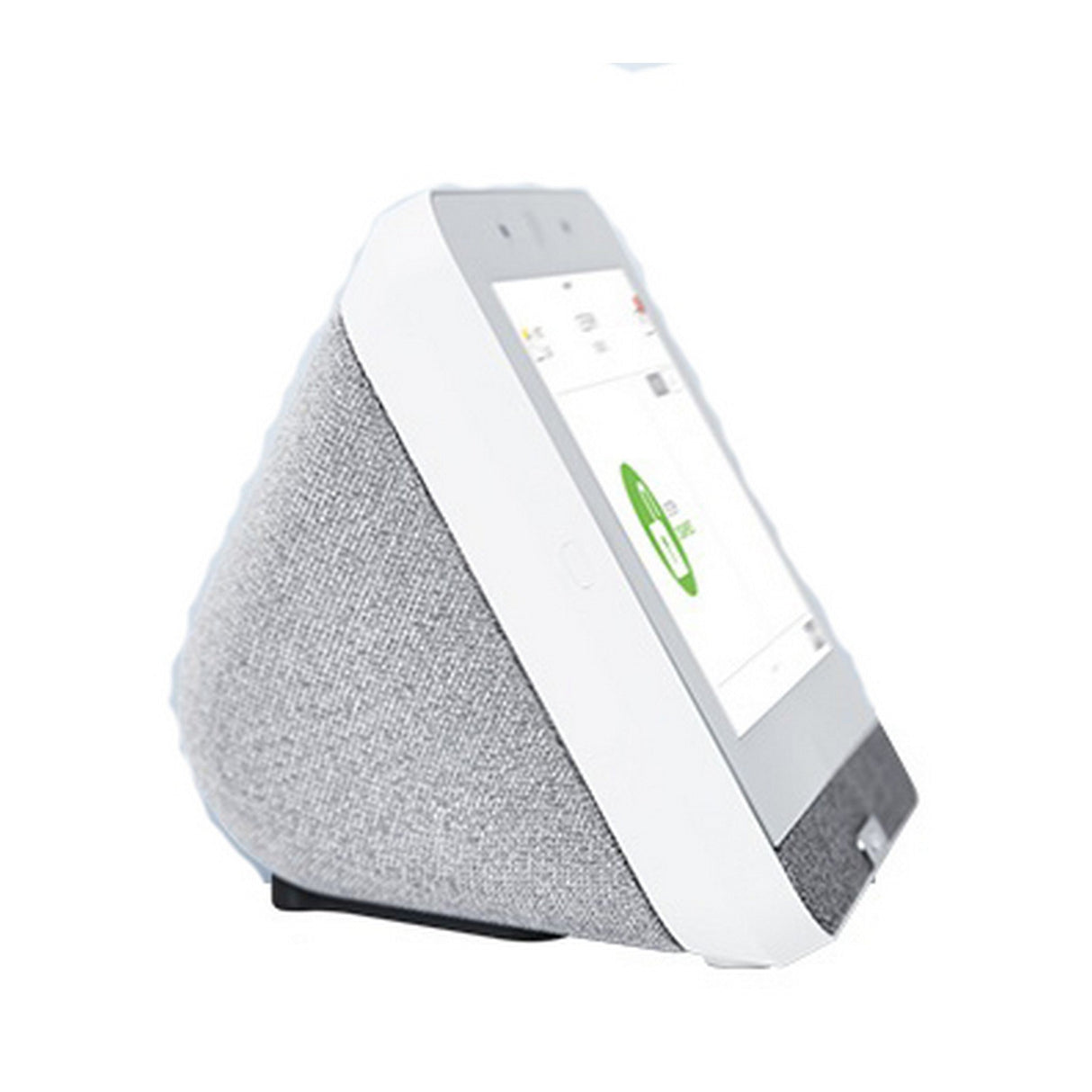

SmartMount for wall mounting included. SmartMount table stand or SmartMount IQ Base Table Stand with built-in Subwoofer sold separately
Certifications
FCC
2AAJXQS-IQPANEL4 (may contain additional modules with separate FCC IDs)
IC
11205A-QSIQPANEL4
UL
UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
Temperature
Operational
0Ā°C to 49Ā°C, 32Ā°F to 120.2Ā°F, up to 93% relative humidity, indoor, dry ordinary locations use only
Storage
-20Ā°C to 50Ā°C, -4Ā°F to 122Ā°F
Operating System
Android 9 Security & Home Automation Touch and Swipe Interface
Processor 8 core
Qualcomm Snapdragon 8 core SOM (System on a Module) with 16GB of NAND Flash
