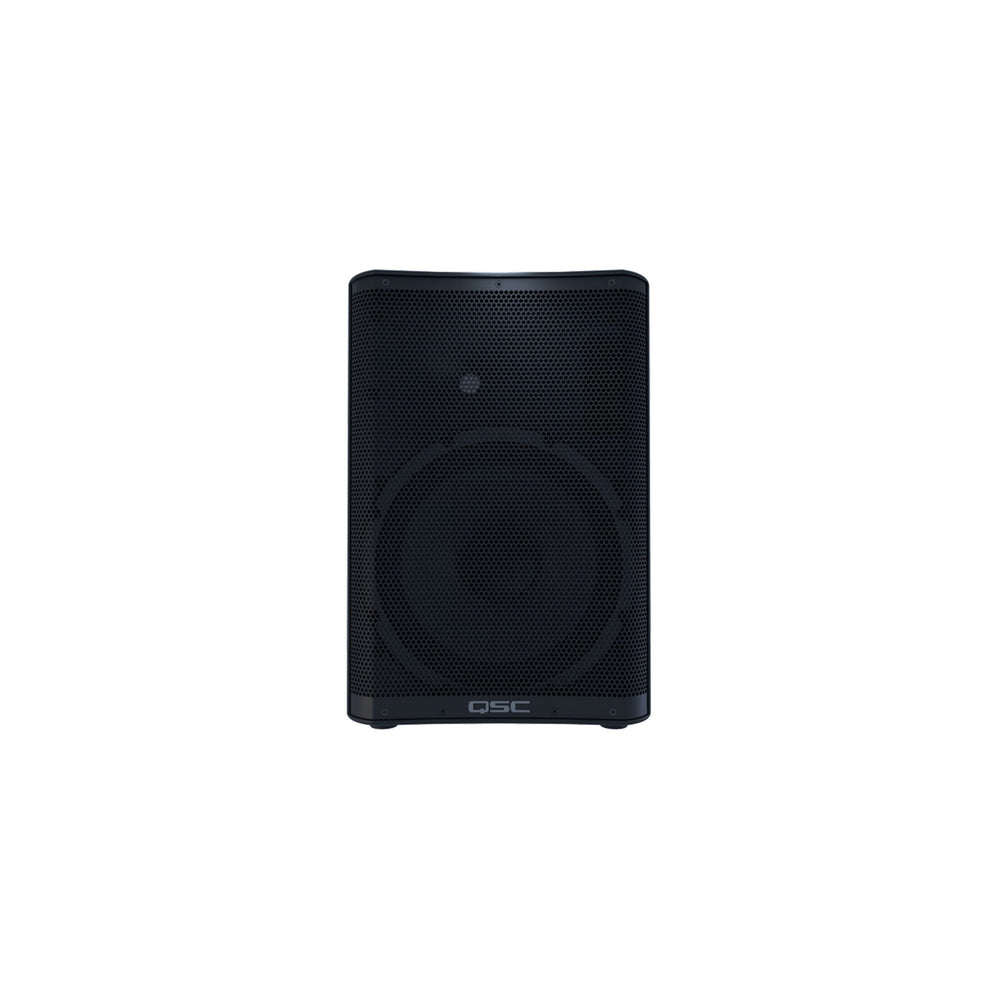

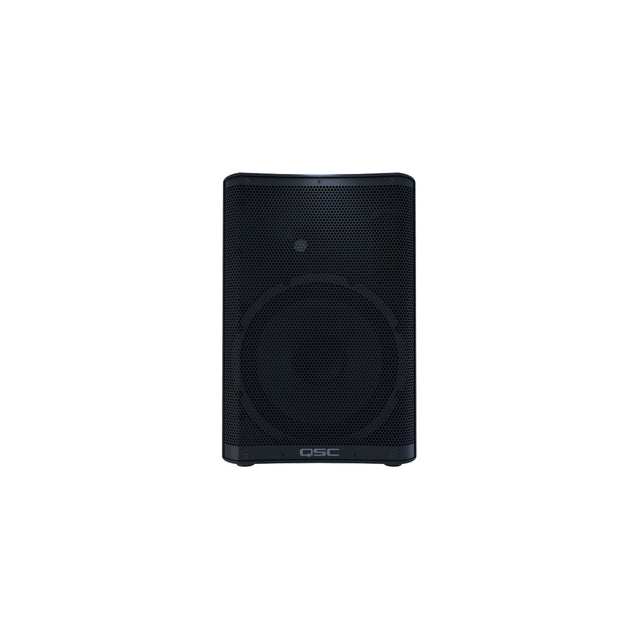

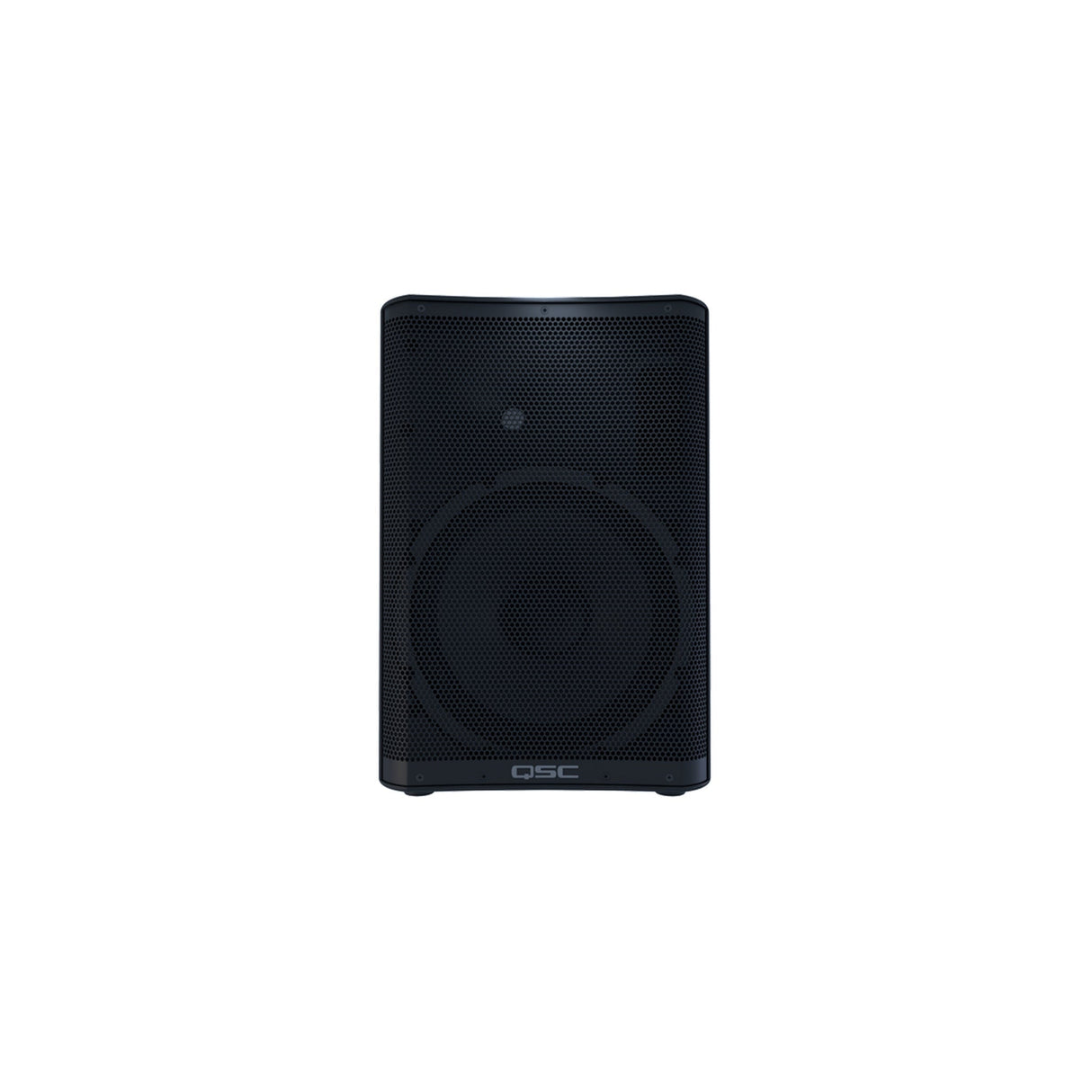

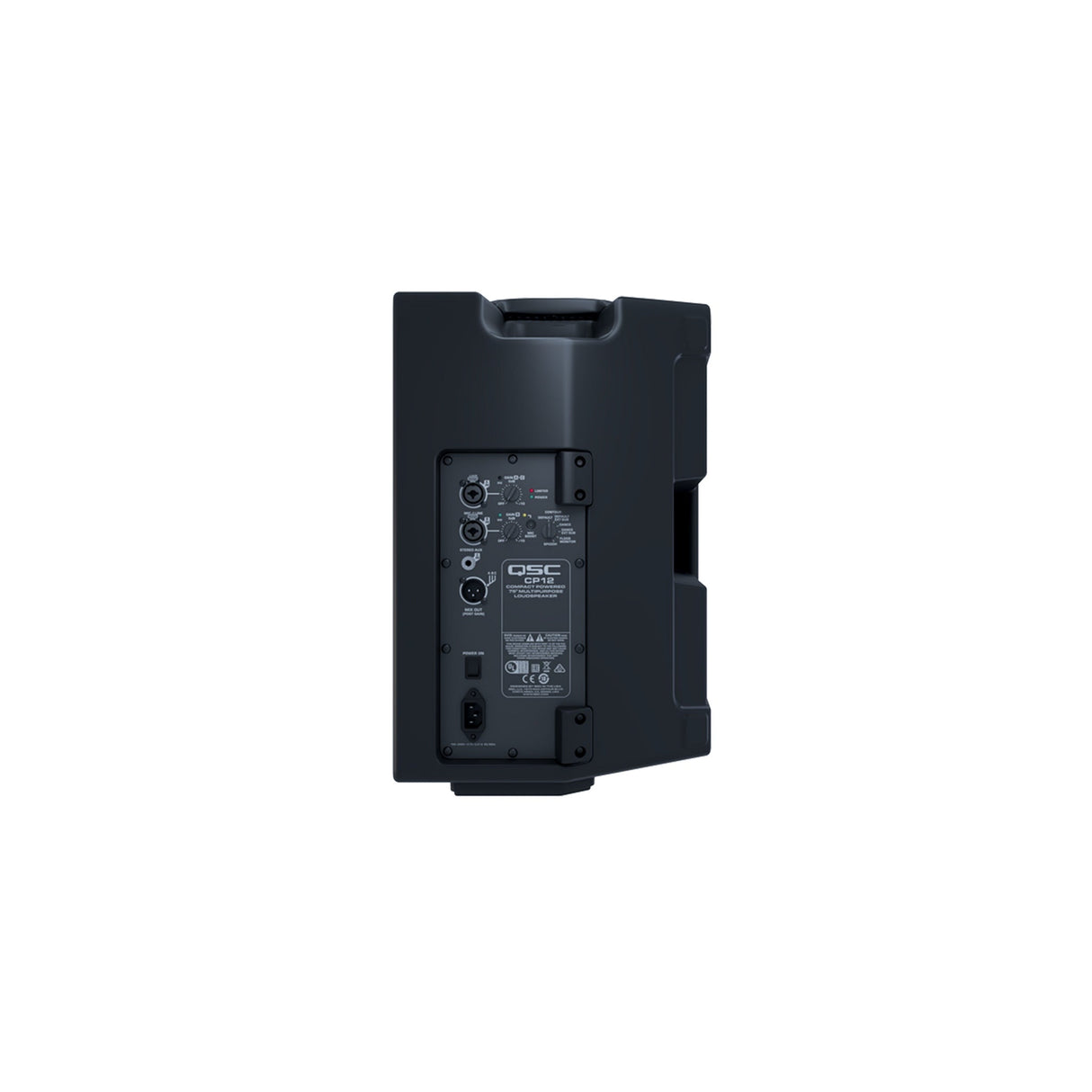

QSC CP12 Compact Powered Loudspeaker

The QSC CP12 is a professional-grade compact powered loudspeaker that combines robust power output, high-fidelity sound, and portability — ideal for live performances, houses of worship, rehearsal spaces, schools, and mobile sound rigs. Despite its compact size, CP12 delivers full-range, high-impact sound that fills rooms and venues with clarity and punch.

Equipped with a 12-inch low-frequency woofer and a 1.4-inch compression driver, driven by a 1000-watt Class-D amplifier, the CP12 offers impressive bass response and crisp highs across a wide frequency range. Built-in DSP, selectable voicing contours, and a 3-input mixer make it flexible for vocal PA, music playback, live instruments, or combined sources — all from a single box.

Compact, rugged, and lightweight, the CP12 is easy to transport, set up, and reposition. It can serve as a main PA speaker, floor monitor, instrument amp, or pole-mounted speaker. With its professional-grade components and versatile feature set, CP12 offers a premium audio solution for venues, events, bands, educators, and sound professionals.

Key Features

• 1000 W peak Class-D amplifier module delivering full, powerful sound from a compact enclosure.
• 12-inch woofer + 1.4-inch compression driver for deep bass, clean mids, and crisp highs.
• Wide frequency response: 49 Hz – 20 kHz (-6 dB) for balanced full-range audio.
• Max SPL: 126 dB loud enough for small to mid-size venues, events, or worship spaces.
• Onboard 3-input mixer: 2 x XLR/TRS combo inputs + 1 x 3.5 mm stereo input — handles mic, instruments, or playback sources simultaneously.
• Selectable DSP contours and presets: Tailor sound for speech, music, floor monitor use, or main PA without external gear.
• Flexible deployment options: Use on a speaker pole, as a floor monitor, or instrument amplifier. Optional yoke mount available for fixed installations.
• Portable, rugged, light-weight design: Easy to carry, load, and deploy. ideal for mobile performers or rental rigs.
• Balanced output and mix-out pass-through: Includes an XLR mix output for expanding to additional speakers or subwoofers.
• Global power support: Universal power supply 100–240 VAC for world-wide compatibility.

Technical Specifications

• Configuration: 2-way active loudspeaker
• LF Transducer: 12 in cone woofer
• HF Transducer: 1.4 in compression driver
• Amplifier: Class-D, 1000 W peak (800 W LF + 200 W HF)
• Frequency Response (-6 dB): 49 Hz – 20 kHz
• Frequency Range (-10 dB): 47 Hz – 20 kHz
• Coverage Angle: 75° axisymmetric
• Maximum SPL (1 m, on-axis): 126 dB
• Inputs: 2 x locking XLR / 1/4 inch combo (mic/line), 1 x 3.5 mm stereo input
• Output: 1 x XLR mix output
• Mounting Options: 35 mm pole socket, M8/M10 threaded inserts for optional yoke mount, floor wedge use
• Power Supply: Universal 100–240 VAC, 50–60 Hz
• Enclosure Material: Rugged molded polypropylene with steel grille
• Dimensions (H x W x D): 20.3 in x 13.8 in x 12.7 in
• Net Weight: 30.3 lb
