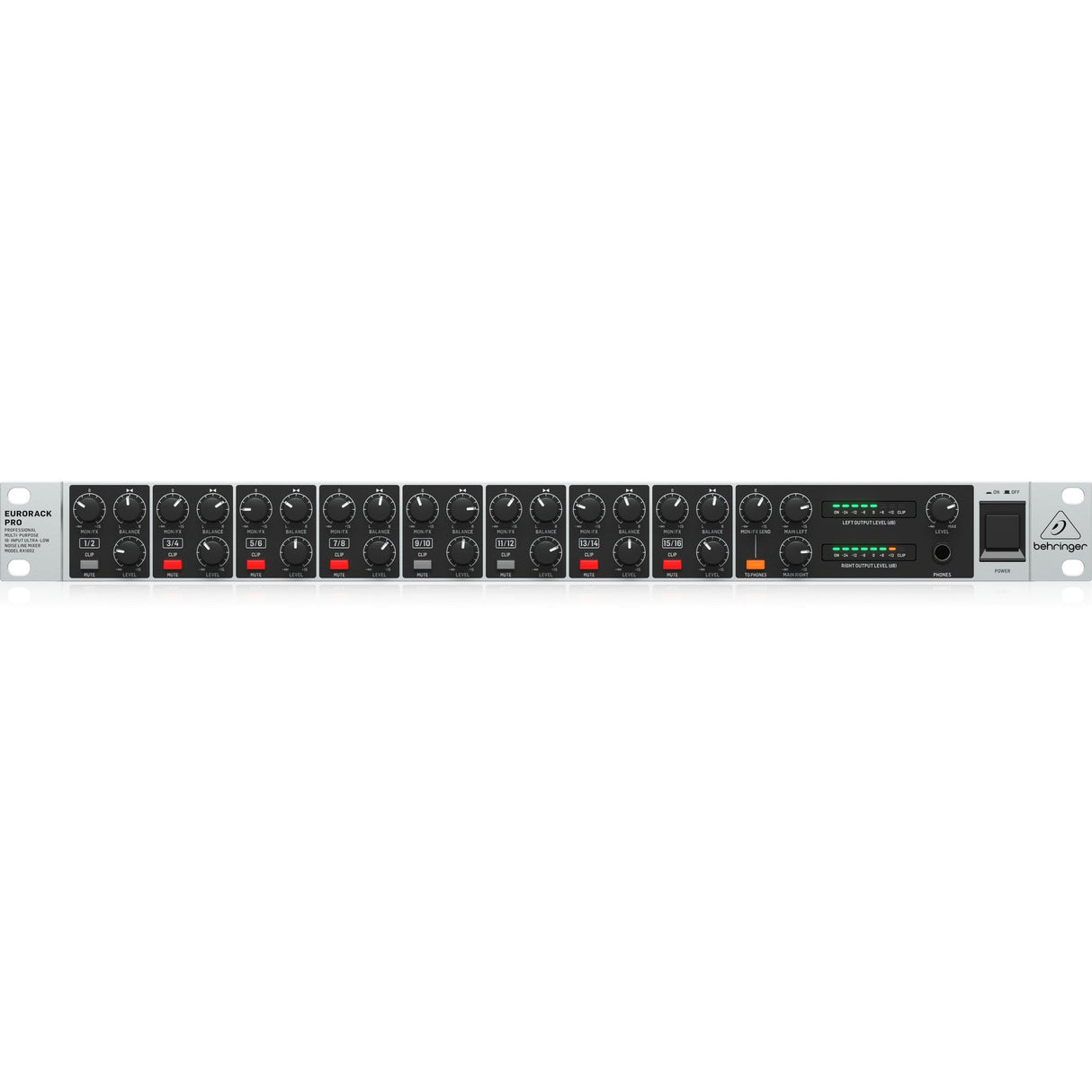

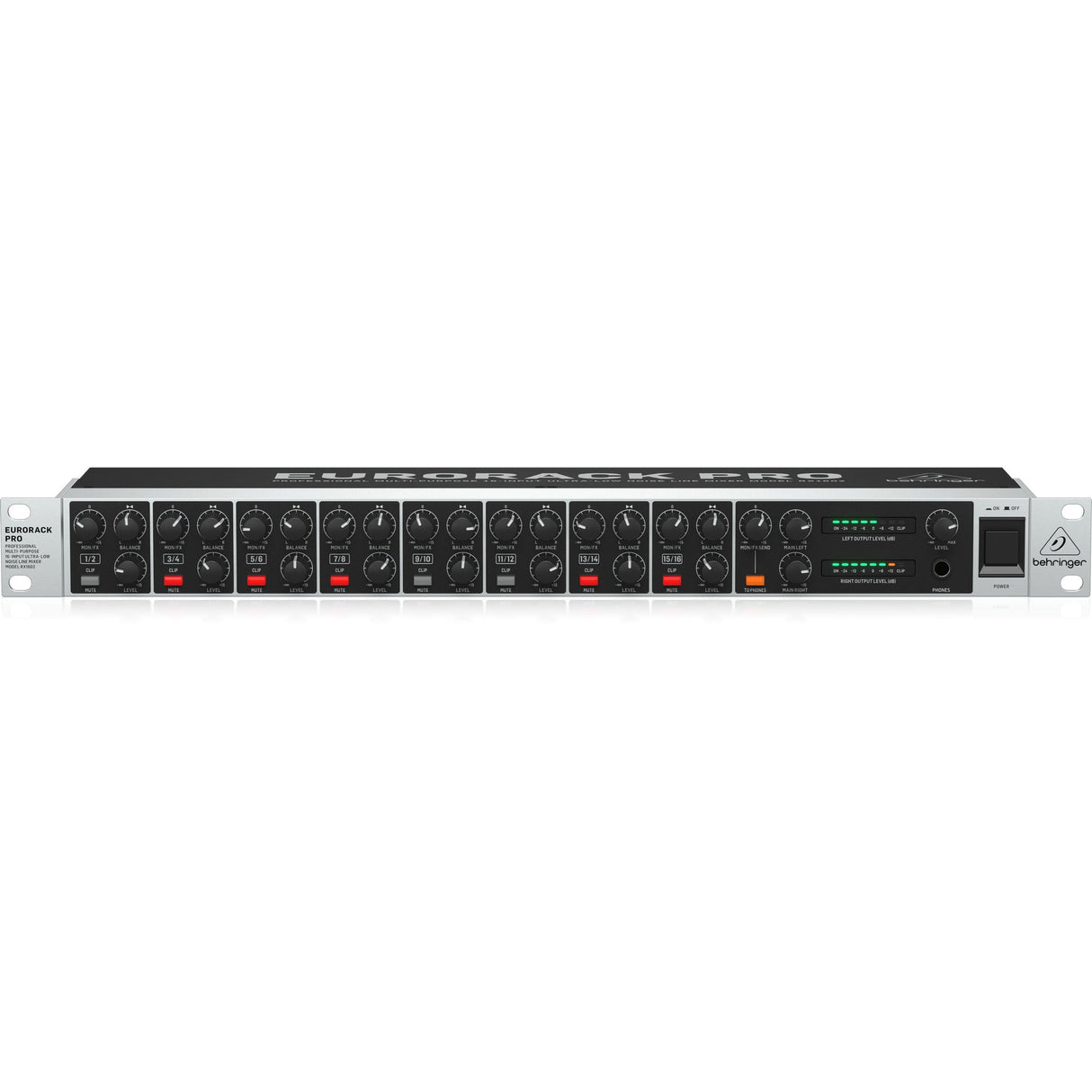

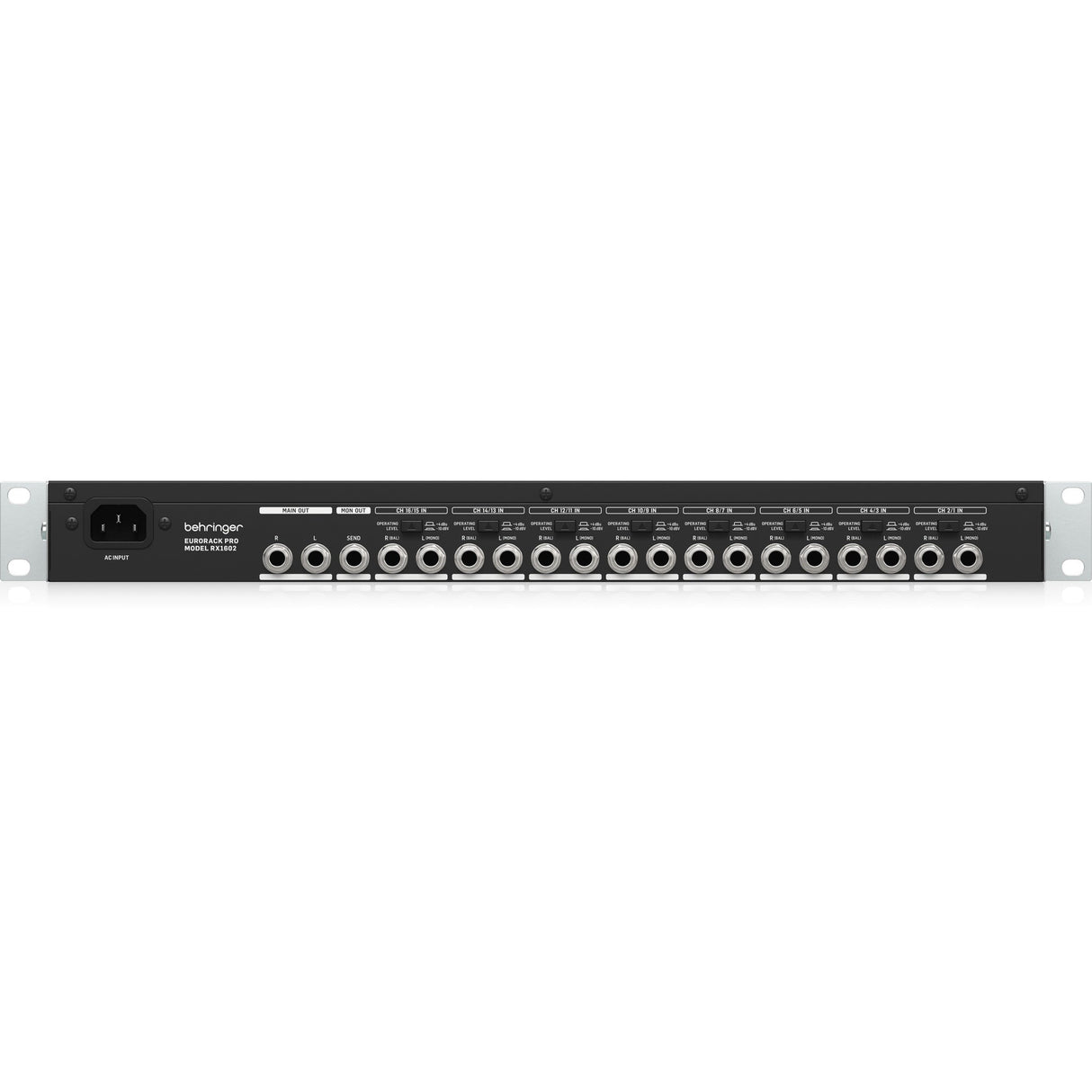

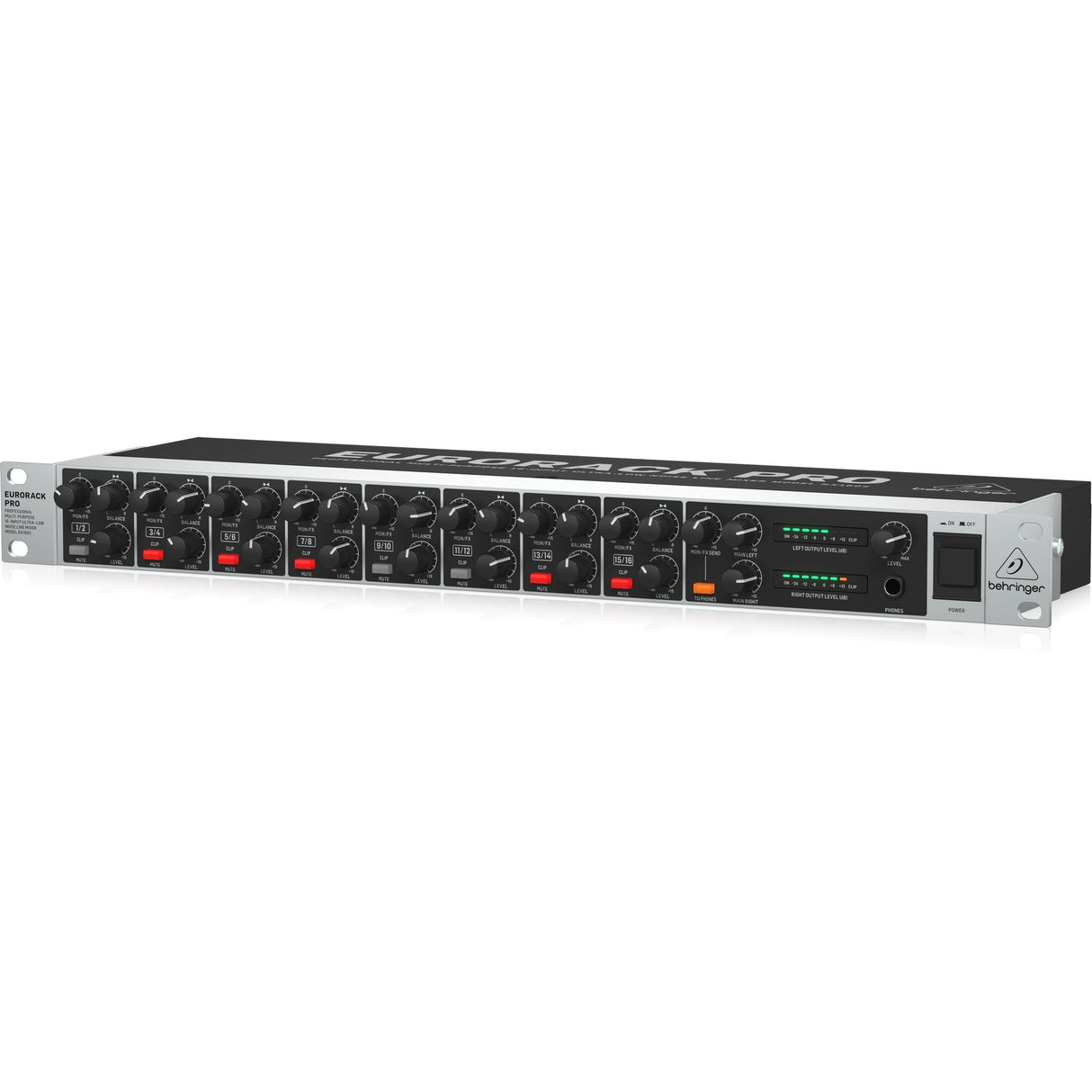

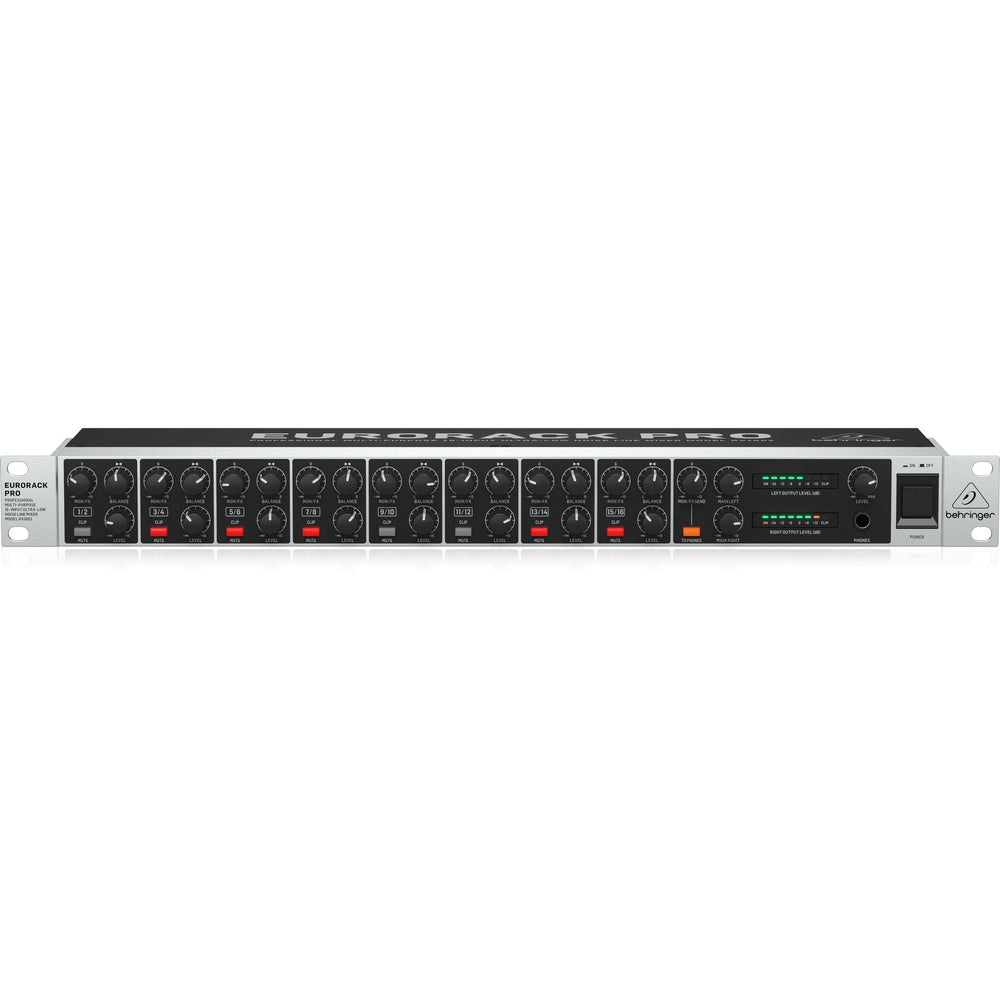

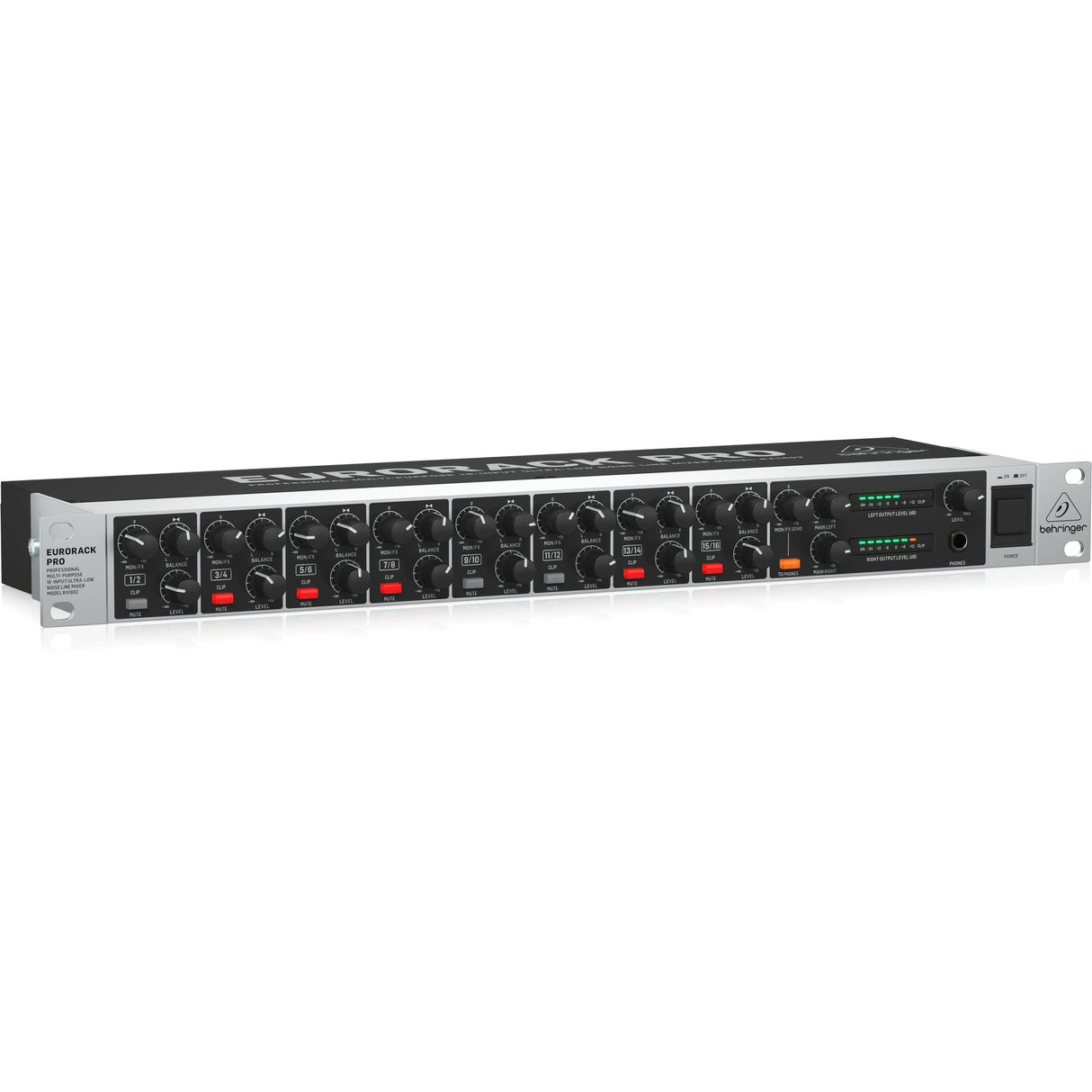

Behringer EURORACK PRO RX1602 Professional 16-Input Ultra-Low Noise Line Mixer

The Behringer EURORACK PRO RX1602 is a professional 16-input line mixer designed for high-density audio routing in studios, live sound systems, and rack-based installations. Built for reliability and clean signal handling, it delivers ultra-low noise performance in a compact 1U rackmount form factor.

This multi-purpose line mixer features balanced 1/4-inch TRS inputs, switchable operating levels, and precise level and balance controls on every channel. High headroom, accurate LED metering, and flexible monitoring outputs make it ideal for submixing keyboards, playback devices, and effects returns.

Engineered for professional environments, the RX1602 offers dependable operation, low distortion, and excellent signal integrity. It is well suited for touring racks, broadcast setups, project studios, and any application requiring clean, expandable line-level mixing.

Key Features

• 16-Input Line Mixer: Supports high-density line-level signal routing in a single rack space.
• Ultra-Low Noise Design: Optimized circuitry delivers clean audio with minimal distortion.
• Balanced TRS Connectivity: Electronically balanced 1/4-inch inputs and outputs for professional signal integrity.
• Switchable Operating Levels: Supports +4 dBu and -10 dBV sources per channel.
• Rackmount Form Factor: Standard 1U 19-inch chassis for professional installations.

Technical Specifications

• Inputs: 16 x 1/4-inch TRS electronically balanced
• Input Impedance: 10 kΩ balanced or unbalanced
• Gain Range: -∞ to +15 dB
• Maximum Input Level: +22 dBu
• Main Outputs: 1/4-inch TRS, impedance balanced
• Maximum Output Level: +22 dBu
• Frequency Response: 20 Hz to 20 kHz ±0.2 dB
• Signal-to-Noise Ratio: < -97 dB
• Total Harmonic Distortion: 0.003% at +4 dBu, 1 kHz
• Power Consumption: 15 W
• Dimensions: 44 x 483 x 149 mm (1.7 x 19.0 x 5.9 in)
• Weight: 1.8 kg (4.0 lbs)
