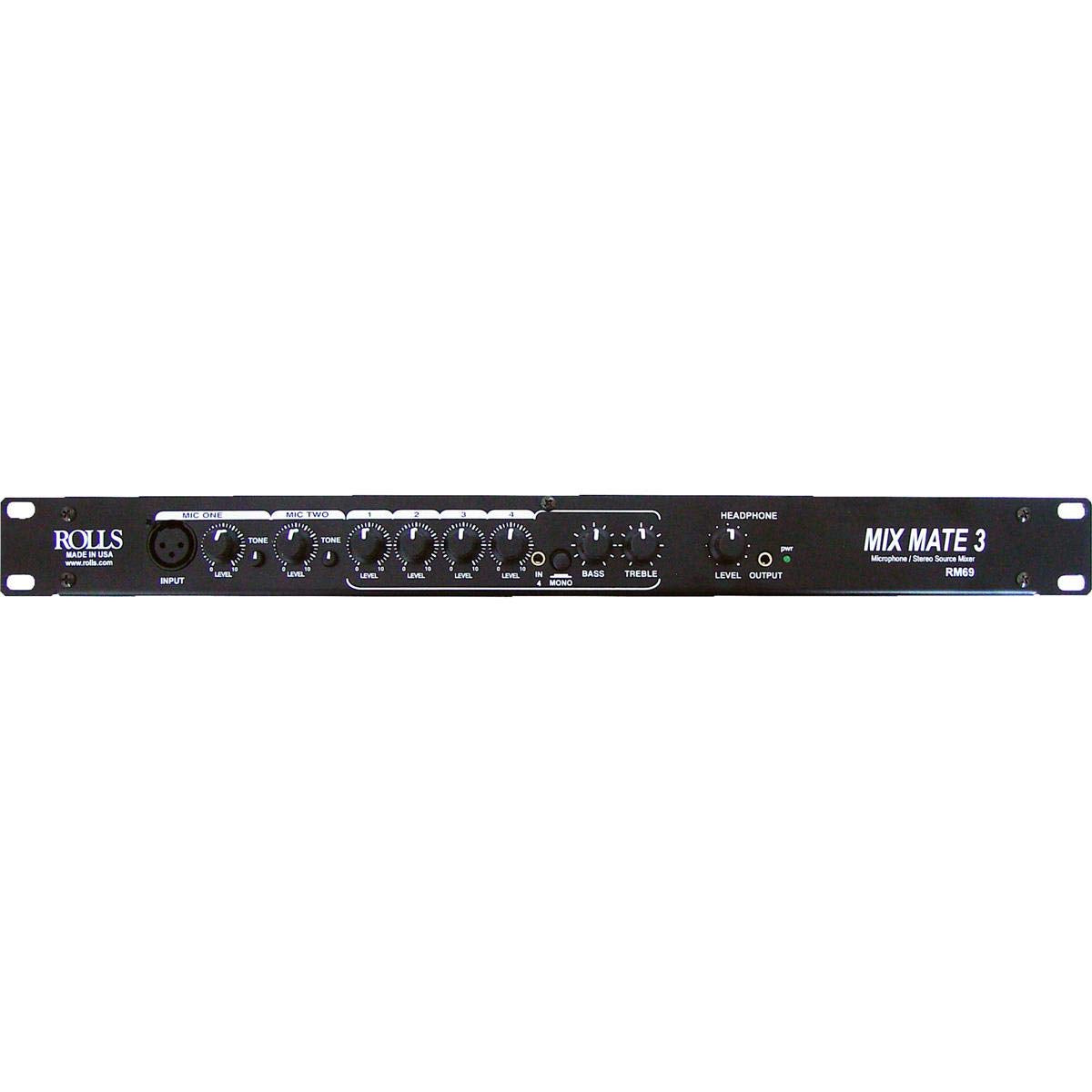

Rolls RM69 Mix Rate 3 Electronic Audio Mixer, 6 Channel
The RM69 MixMate 3 is six channel, single rack space, electronic audio mixer with two microphone inputs and four stereo line inputs. The unit is ideal for installs such as small restaurants or night clubs where space is a consideration, without compromising audio quality. A convenient front-panel 3.5mm jack has been included for connection to any standard MP3 player's headphone output.
Key Features
- Two XLR Microphone Inputs (including a paralleled front panel input)
- Individually switchable phantom power
- Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm
- 1/4ā TRS Mic Insert jack
- Stereo RCA and XLR Outputs
- Headphone output on front panel with volume control
Technical Specifications
Input Impedance
Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4ā TRS insert
Weight
5 lbs. (2.3 kg)
Size
19ā x 1.75ā x 4ā (48.3 x 4.5 x 10 cm)
Max Gain
Mic: 60 dB Source: 26 dB Tone Controls: +/-12 dB 100 Hz Bass, +/-12 dB 11kHz Treble Noise Floor: - 80 dB, THD: <.025%
Output Impedance
51 Ohms
Output Level
+17 dBV max
Phantom Power
+15 VDC
In/Out Connectors
5: XLR, 5: Stereo RCA, 1: 1/4ā TRS, 2: 3.5mm
Headphone Output Impedance
> 8 Ohms
Max Input Level
Mic: -14 dBV Mic level Source: 24 dBV
Current drain
50ma 15vdc
