Yamaha  |  SKU: YMHA-TIO1608D2

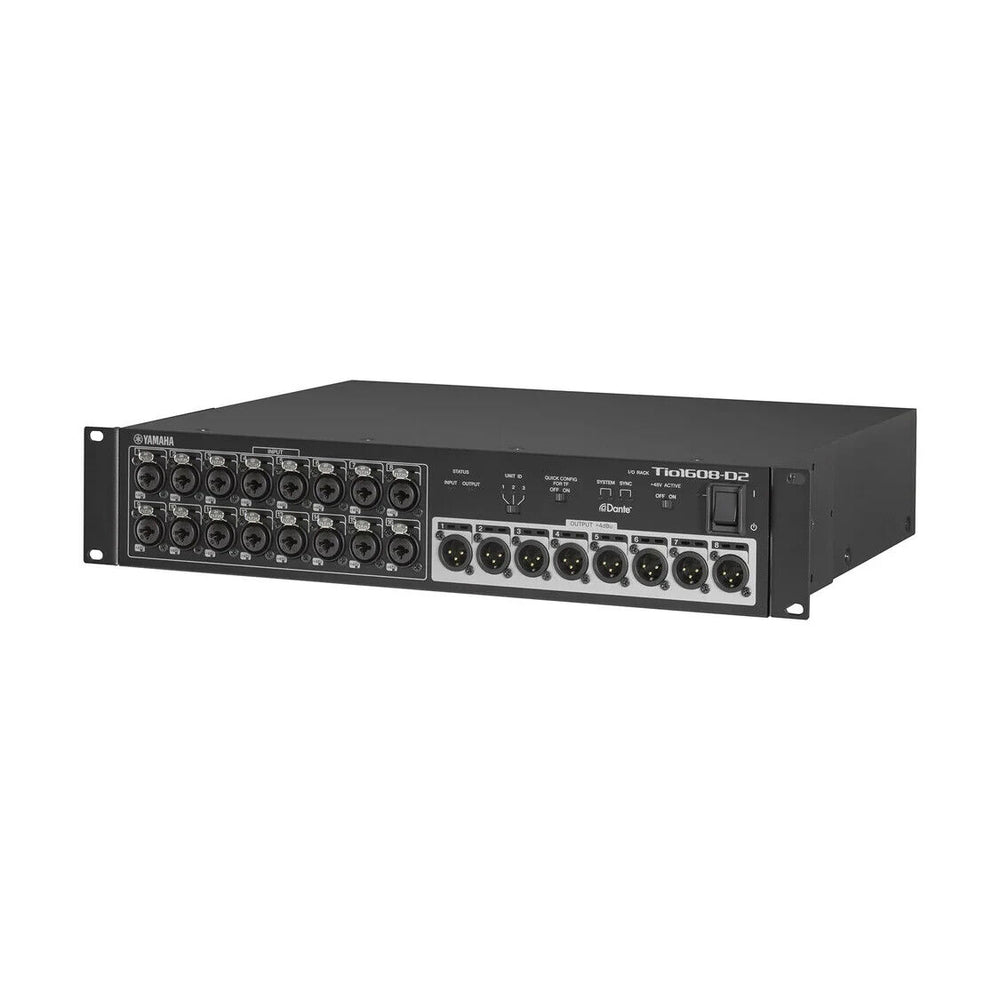

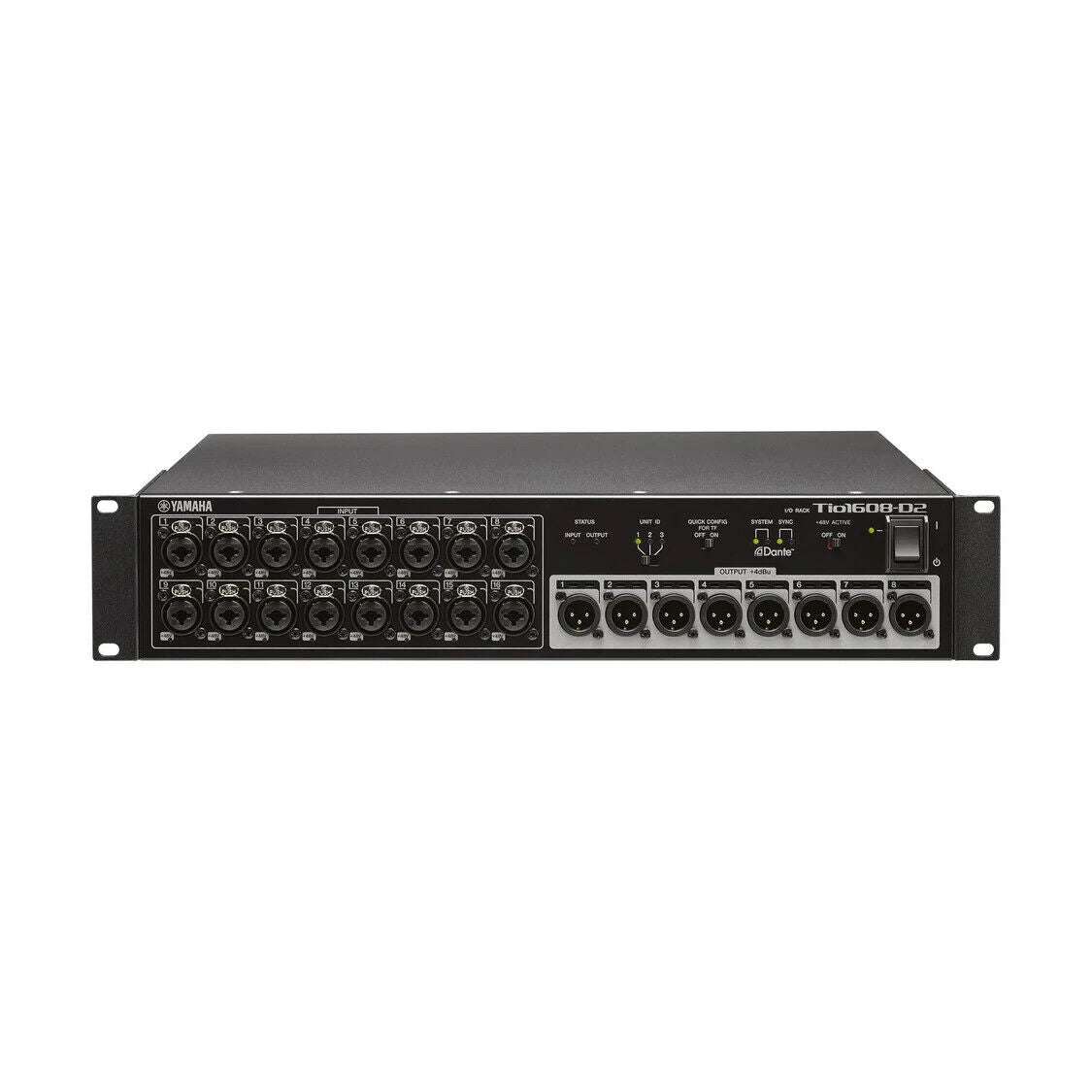

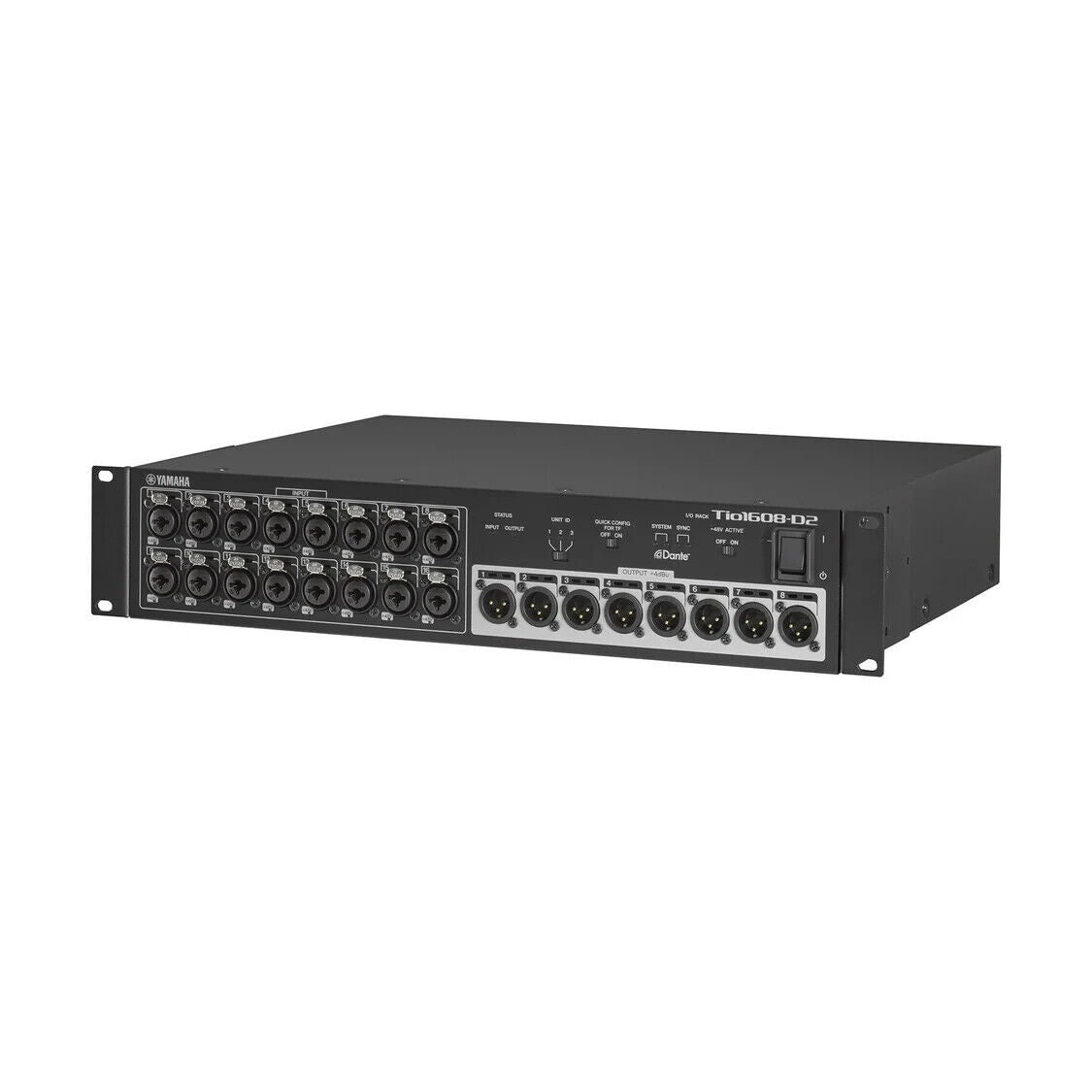

Yamaha Tio1608-D2 16 x 8 Dante-Equipped 96kHz I/O Rack

$1,54999

Condition: New



Description

Yamaha Tio1608-D2 16 x 8 Dante-Equipped 96kHz I/O Rack

The Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.

A stagebox that enhances the convenience of your console

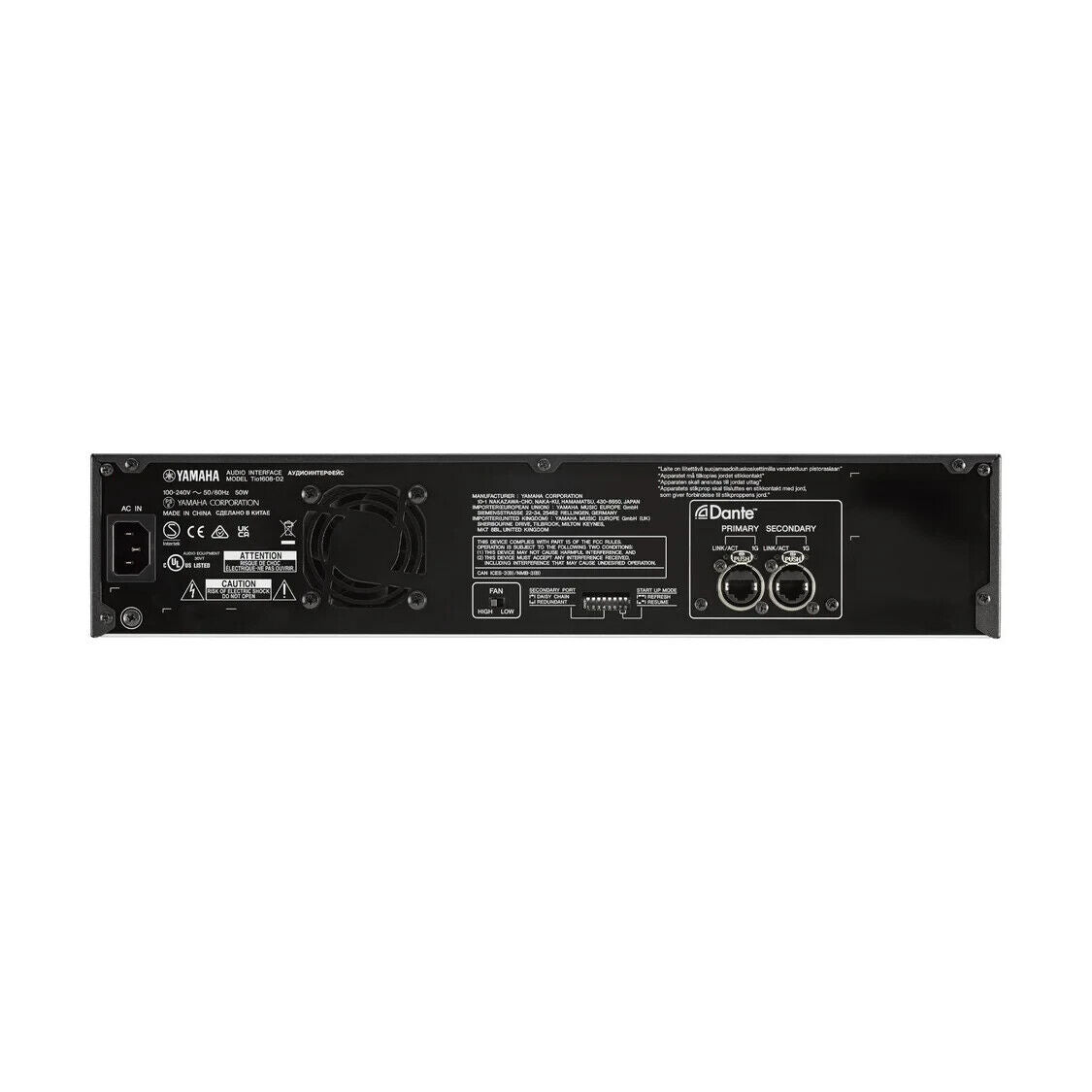

Back view of Yamaha I/O Rack Tio1608-D2: image showing a stagebox that enhances the convenience …
The Tio1608-D2 is the ideal stagebox for use with TF Series or DM3. The TF Series can use the optional NY64-D expansion card to connect to up to three Tio1608-D2 units, while DM3 can connect to a single unit. Connecting the console and Tio1608-D2 unites with a lightweight, durable CAT5e Ethernet cable in a daisy chain provides low-latency, high quality sound transmission without the time-consuming transport and installation required when using analog snakes.

Key Features

  • Renowned Yamaha sound quality with 96kHz sample rate
  • 3U size, 16 inputs and 8 outputs.
  • Dante network protocol contributes to greater system scalability and flexibility
  • Supports QUICK CONFIG Mode for DM3 and TF series
  • Automatic digital-stage compensation for analog gain changes (CL/QL series only)
  • Recallable D-PRE preamplifiers

Technical Specifications

Tio1608-D2
General
Sampling frequency rate
External
44.1kHz, 48kHz, 88.2kHz, 96kHz
Signal delay
Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz; Less than 2.6ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total harmonic distortion
Less than 0.2% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
Frequency response
+0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT
Dynamic range
108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
Hum & noise level
Equivalent input noise
-128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
Residual output noise
-86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter
Crosstalk
-100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
Heat dissipation
100-240V, 50/60Hz, 43.5kcal/h
Power requirements
100-240V, 50/60Hz
Power consumption
50W
Dimensions
W
480mm (18.9”)
H
88mm (3.5”)
D
364mm (14.4”)
Net weight
5.7kg (12.6lbs)
Accessories
Owner’s Manual, Power Cord (2.5m), Rubber stoppers (4)
Others
Temperature Range: Operating temperature range: 0 – 40 Degrees C, Storage temperature range: -20 – 60 Degrees C
