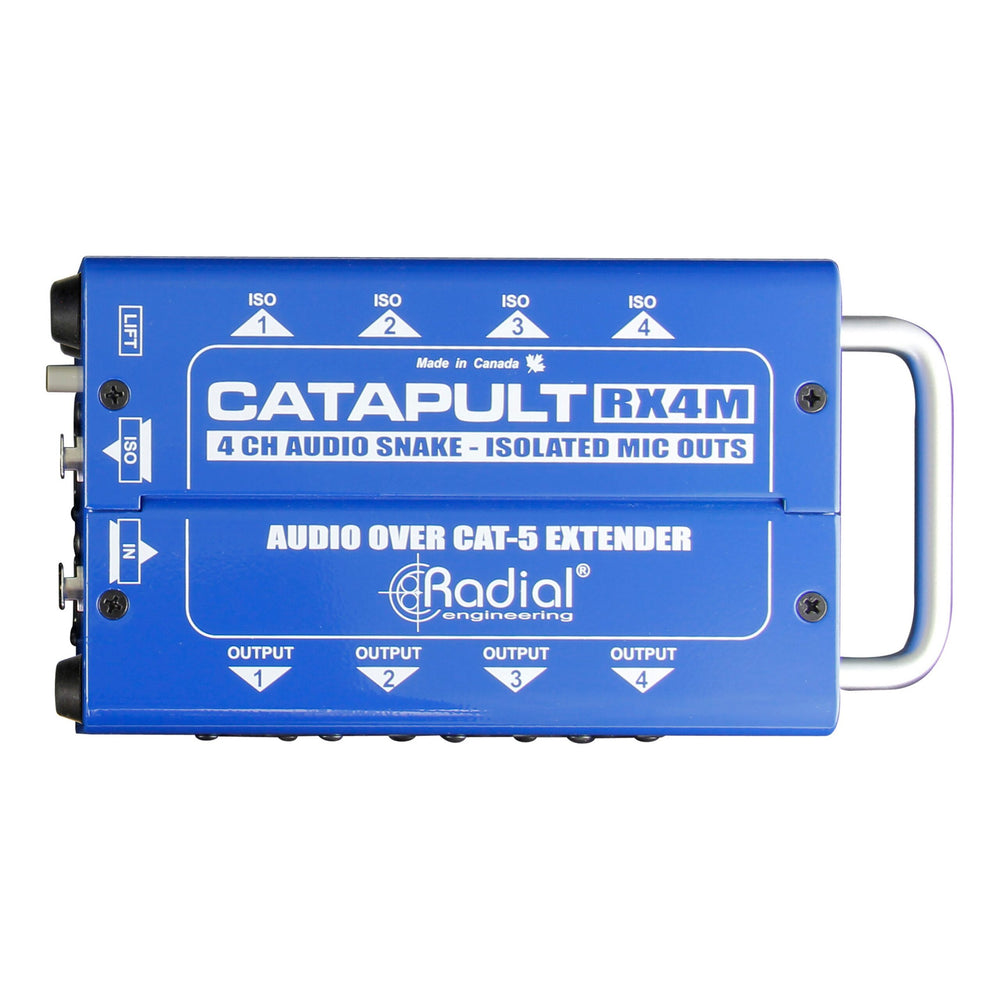

Radial Catapult RX4 Cat 5 Analog Snake Extender, 4 Channel
The Radial Catapult RX4 Cat 5 Analog Snake Extender is a groundbreaking solution for audio professionals who require a reliable, noise-free method to transmit multiple channels of high-quality audio signals over long distances. This versatile four-channel extender utilizes Cat 5 Ethernet cable, which is not only cost-effective but also easily accessible and lightweight. With the Catapult RX4, you can send either mic or line-level signals from one location to another without any signal degradation, interference, or the need for digital audio conversion. This makes it an ideal choice for both live sound applications and studio setups.
What sets the Radial Catapult RX4 apart from conventional analog audio snakes is its use of standard Cat 5 cabling. This means you can leverage existing network infrastructure within a building to achieve seamless audio transmission. The system is designed for plug-and-play operation, which means there's no need for complex setup procedures or external power sources. Simply connect a shielded Cat 5 cable between the Catapult modules, and you're good to go. Whether you're a touring musician, event organizer, or recording engineer, the Catapult RX4 offers unmatched flexibility and efficiency in handling multi-channel audio distribution.
Key Features
- Send four channels of analog audio over a single Cat 5/6 cable
- Works with a building’s existing cable infrastructure
- Choice of direct-wired or transformer isolated splits
- Economical Cat 5/6 cable replaces bulky multi-channel audio snakes
Specifications
- Audio circuit type: Passive splitter
- Frequency response: 7Hz ~ 20KHz
- Dynamic range: 140dB
- Total harmonic distortion: 0.0005% @ 1kHz
- Common Mode Rejection Ratio: >103dB
- Maximum Input: +35dBu
- Construction: 14 gauge steel chassis & outer shell
- Size (L x W x D): L: 8 1/8 x W: 4 1/8 x H: 2
- Weight: 2.6 LBS
- Shipping size (L x W x D): L: 11 x W: 5 x H: 2.75
- Shipping weight: 2.9 LBS
- Power: Passive, no power required
- Operating Conditions: For use in dry locations only between 5°C and 40°C
Package Contents
- Radial Catapult RX4 Cat 5 Analog Snake Extender
- User manual
- Warranty card
