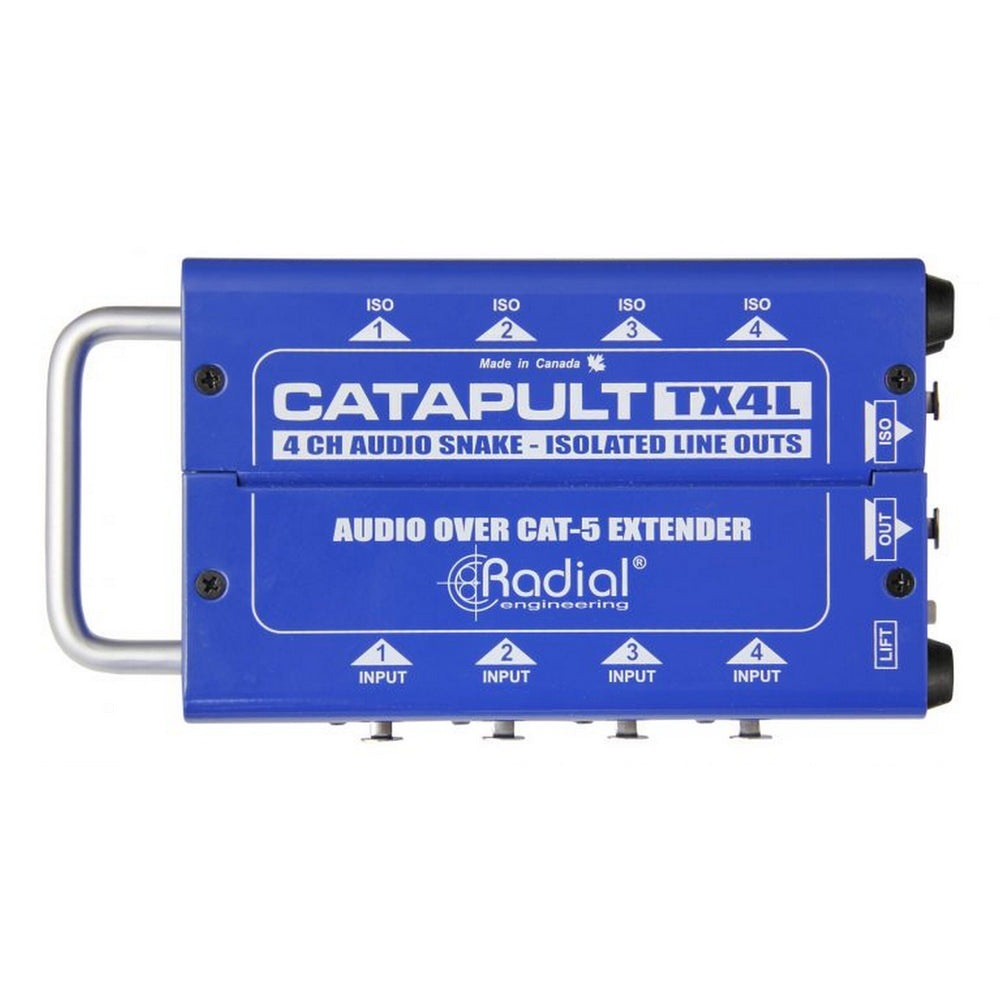

Radial Catapult TX4L 4-Channel Transmitter with XLR-F Inputs and 4 Isolated XLR-M Outputs (Used)
The Radial Catapult TX4L 4-Channel Transmitter is a top-of-the-line audio solution designed to meet the demanding needs of audio professionals. Whether you're on stage or utilizing existing building cabling, this unit ensures unparalleled audio signal integrity and flexibility. This used but like-new open box product shows no signs of use, bringing you the quality you expect from Radial at a fraction of the cost.
The Catapult TX4L and its counterpart RX4L allow you to effortlessly transmit audio channels over a single Cat5 shielded twisted pair cable. With the capability to split line level signals to three different destinations, this unit is ideal for complex audio setups in both live and installed environments. The onboard line level isolation transformers eliminate buzz and hum caused by ground loops, ensuring a clean and clear audio signal. Each Catapult TX4L unit features four XLR-F inputs and four isolated XLR-M outputs, housed in a robust 14-gauge steel chassis for superior durability.
Key Features
- Four-channel line level splitter and isolator
- Transmit audio over a single Cat5 shielded twisted pair cable
- Eliminates buzz and hum caused by ground loops
- Four XLR-F inputs and four isolated XLR-M outputs
- Passive operation, no power required
- RJ45 type Ethercon connections with ground lift switches
- Durable 14-gauge steel chassis
Specifications
- Audio Circuit Type: Passive line splitter, transformer-based
- Frequency Response: 7Hz ~ 20KHz
- Dynamic Range: 140dB
- Total Harmonic Distortion: 0.0007% @ 1kHz
- Common Mode Rejection Ratio: greater than 113dB
- Maximum Input: +35dBu
- Input Connectors: XLR, RJ45
- Output Connectors: XLR, RJ45
- Construction: 14-gauge steel chassis & outer shell
- Size: L: 8 1/8 x W: 4 1/8 x H: 2
- Weight: 2.6 lbs
- Shipping Size: L: 11 x W: 5 x H: 2.75
- Shipping Weight: 2.9 lbs
- Power: Passive, no power required
- Operating Conditions: For use in dry locations only between 5Ā°C and 40Ā°C
- Warranty: Radial 3-year, transferable
Package Contents
- Radial Catapult TX4L 4-Channel Transmitter
- User Manual
