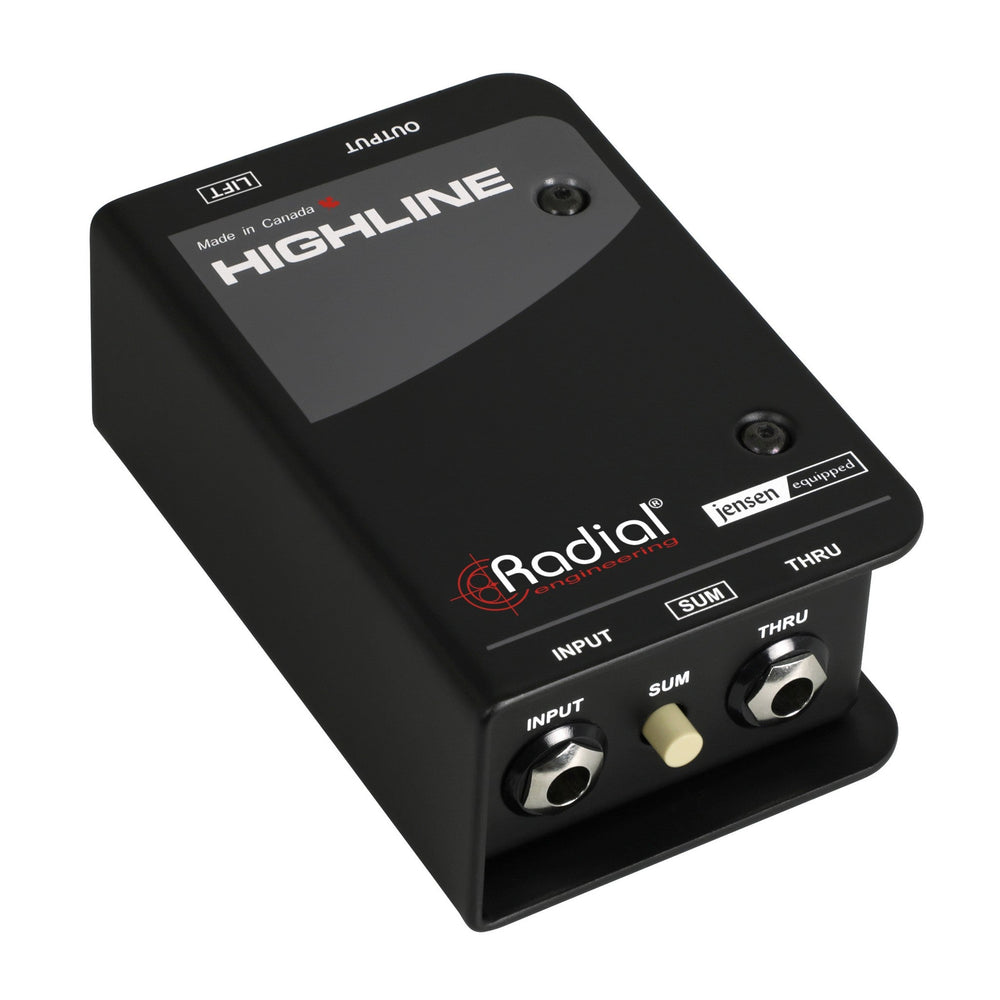

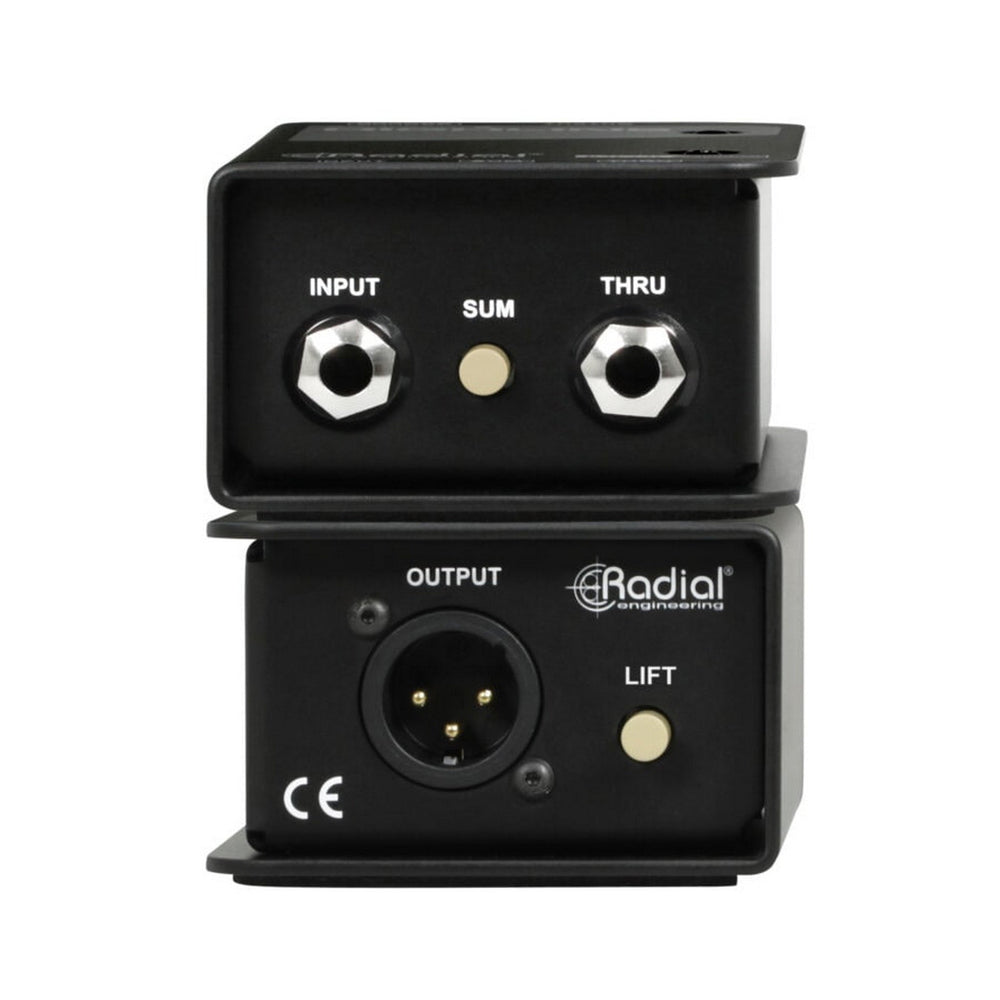

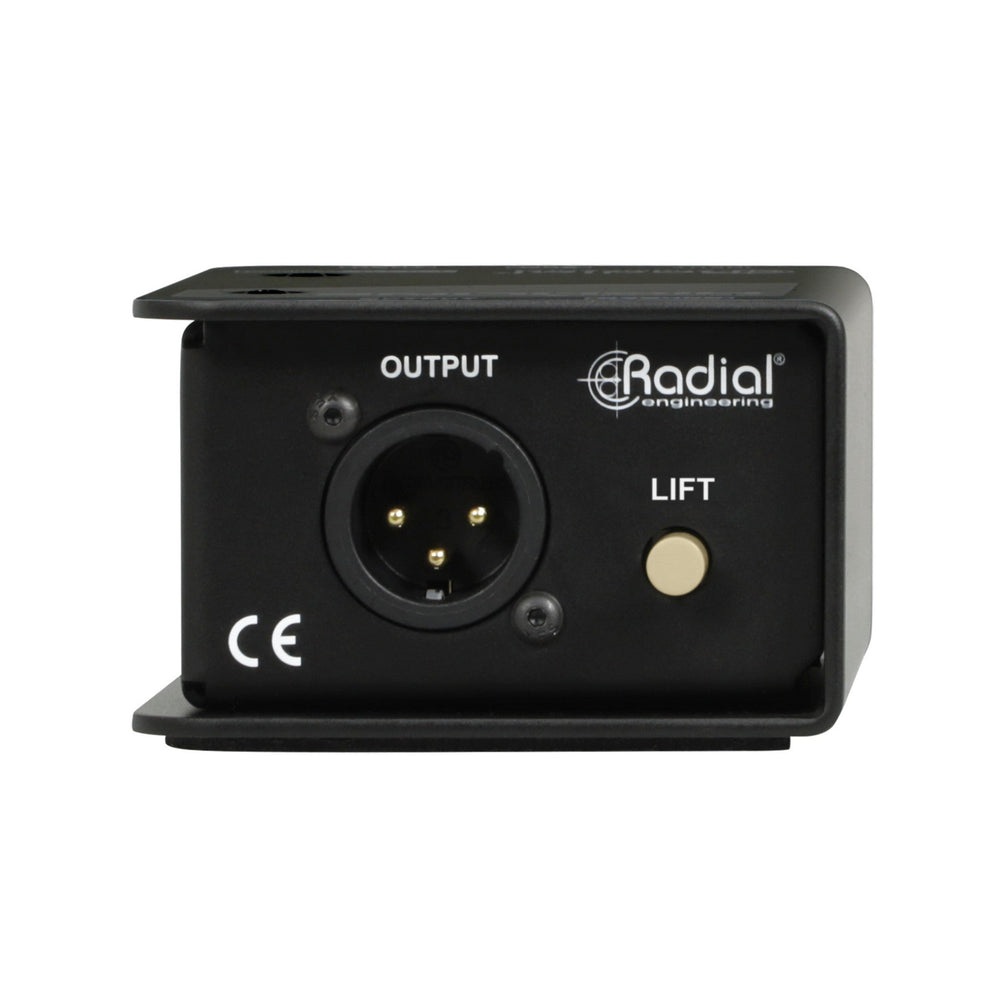

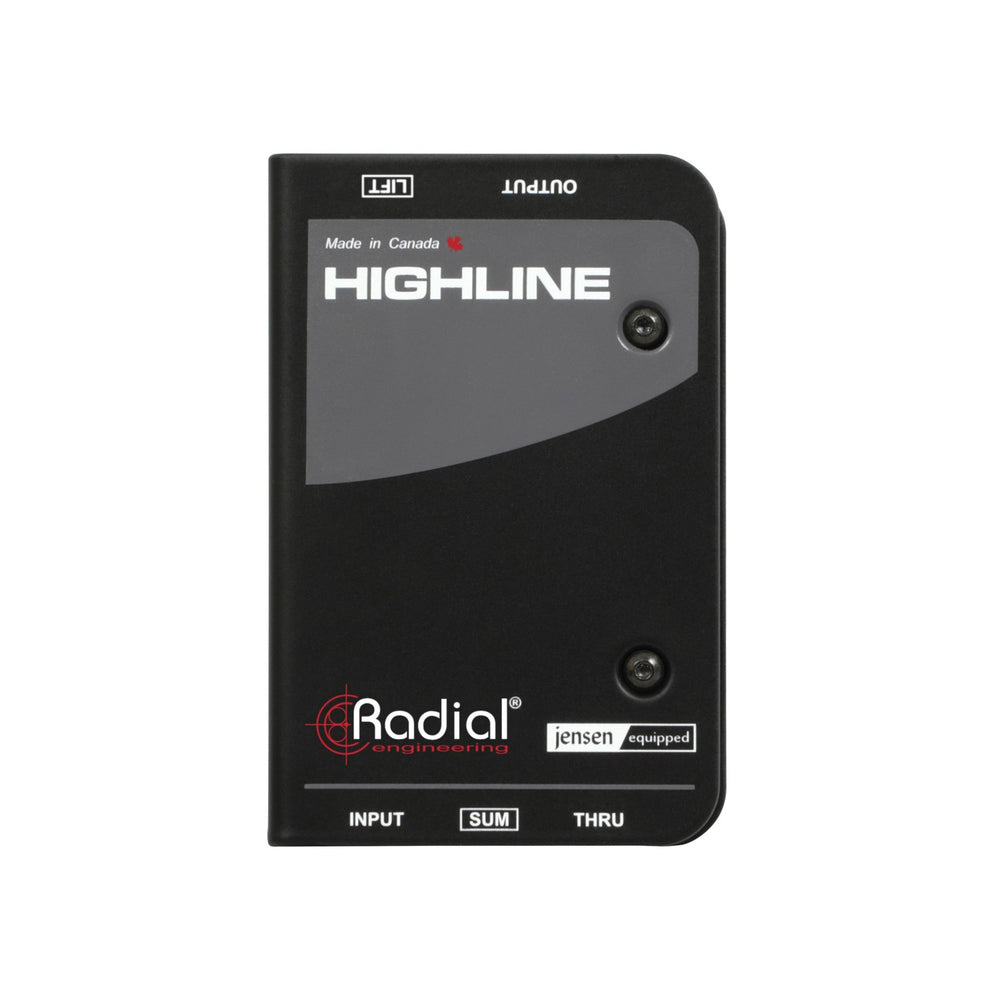

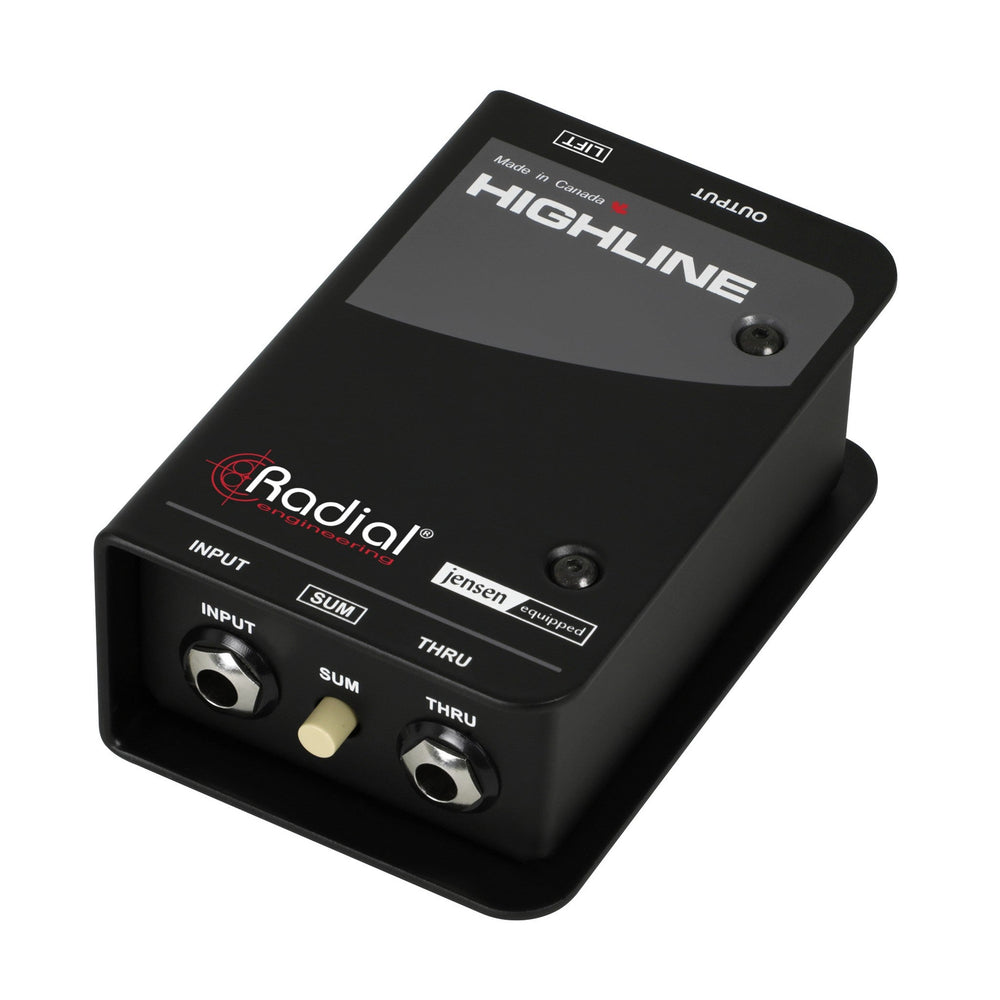

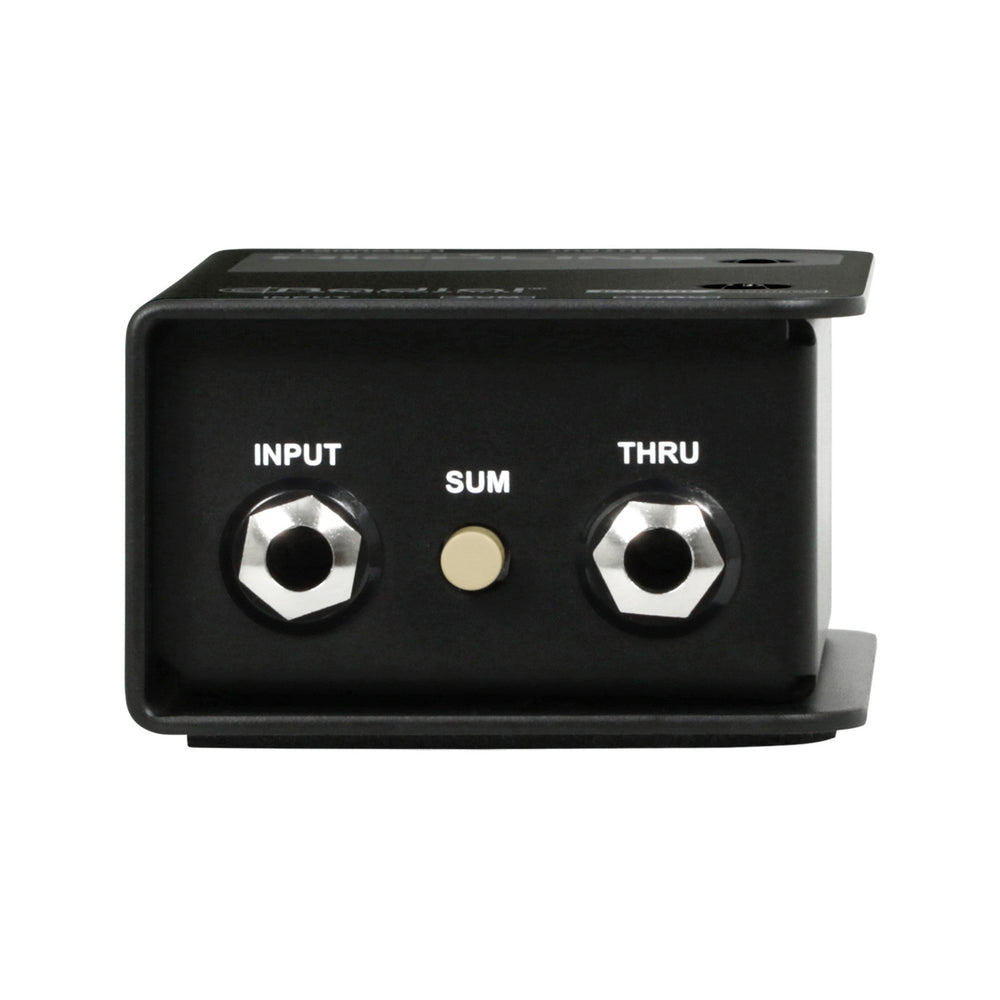

Radial HighLine Passive Line Isolator
The Radial HighLine is a passive line isolator engineered to connect guitar and amp-modeler outputs to mixers or PA systems without adding noise, distortion, or tone coloration. Its precision-wound Jensen JT-11-YMPC transformer provides galvanic isolation—blocking phantom power and eliminating ground-loop hum—while preserving a flat frequency response from 20 Hz to 20 kHz.
Designed for both studio and touring use, the HighLine features an input Sum switch to combine stereo sources into mono and a Thru Sum option for local monitoring. Housed in a rugged 14-gauge steel outer shell with a 16-gauge chassis and powder-coat finish, it delivers reliable performance night after night.
Key Features
- Passive Transformer Isolation: Jensen JT-11-YMPC 1:1 transformer blocks noise and phantom power
- Mono Channel with Summing: Sum stereo inputs to mono; Thru Sum for local stage monitoring
- Ground Lift: Eliminates hum from ground loops
- No Power Required: Fully passive operation
- Rugged Construction: 14-gauge steel shell; 16-gauge chassis; powder-coat finish
Technical Specifications
- Audio Circuit Type: Passive, transformer based
- Transformer: Jensen JT-11-YMPC
- Number of Channels: Single channel (mono)
- Frequency Response: 20 Hz – 20 kHz (± 0.05 dB)
- Total Harmonic Distortion: < 0.03% (20 Hz – 20 kHz, –10 dB); 0.0002% @ 1 kHz (–10 dB)
- Phase Deviation: ± 0.3° (20 Hz – 20 kHz, –10 dB)
- Signal-to-Noise Ratio: 110 dB
- Features: Ground lift; Input Sum; Thru Sum
- Construction: 14-gauge steel outer shell; 16-gauge chassis; powder-coat finish
- Power: Passive, no power required
