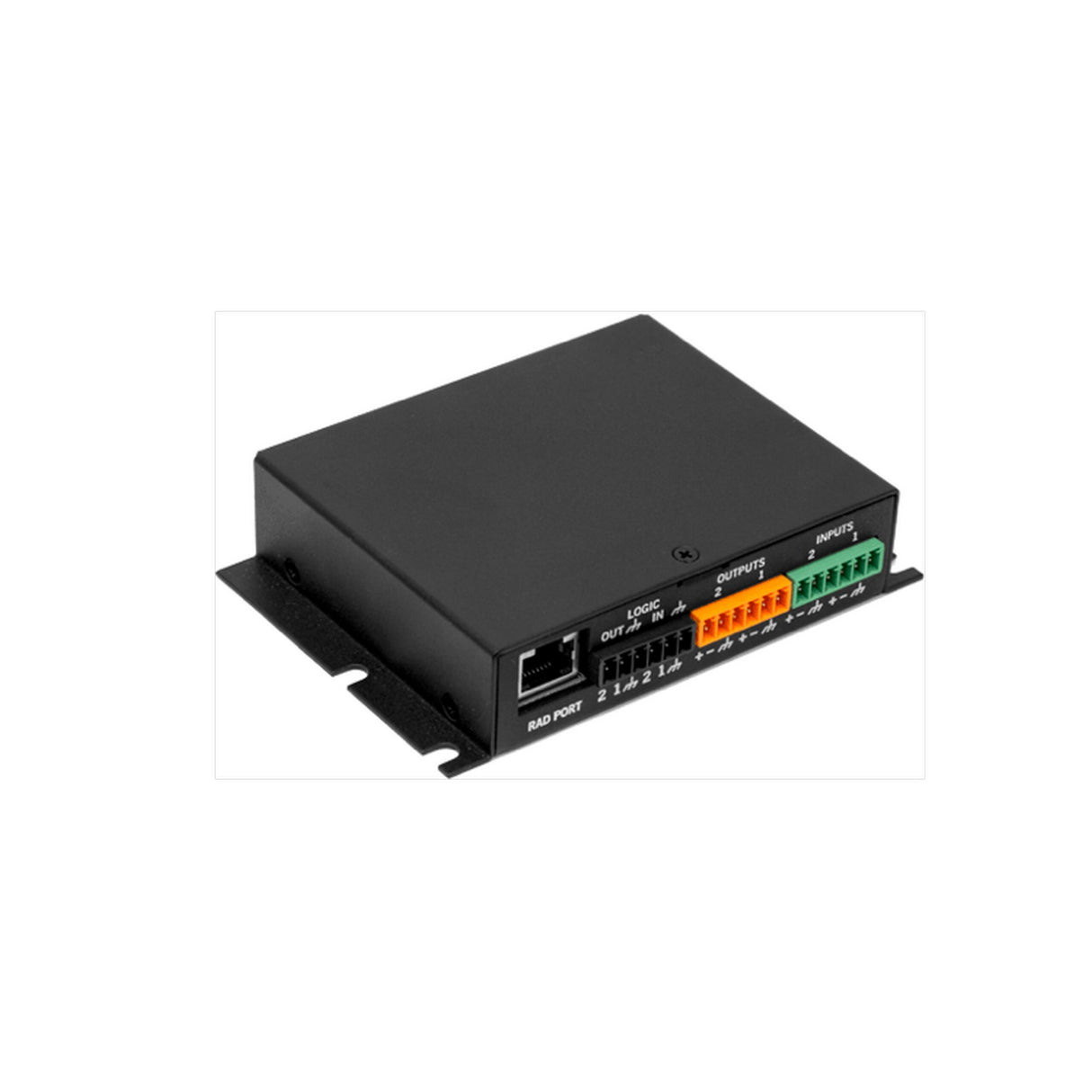

Rane RAD16z Halogen Interface with Dual Inputs / Dual Outputs
The RAD16z is an alternative to standard switch boxes forimpractical areas such as in stage floor pockets or above ceilings. Its formfactor is a rugged metal box with flexible surface mounting options. The RAD16zis plenum-rated UL 2043. It contains two balanced Mic / Line / Line-Plus inputsand two balanced line outputs on Euroblock connectors. Line-Plus allows anunbalanced stereo source to connect to a single balanced input and be mono’ed.Inputs are individually software switchable to Mic, Line or Line-Plus. TheHalogen software can enable 24V phantom power for a condenser mic on eitherinput. LEDs indicate input mode, Input and Output level, as well as RAD connectivityto the HAL.
Key Features
- Plenum-rated 2-ch I/O box with logic, single shielded CAT5eor better for up to 500 feet maximum distance
- Alternative to standard switch boxes for impractical areassuch as floor pockets or above ceilings
- 2 balanced Mic / Line / Line-Plus inputs and 2 balanced lineoutputs on Euroblock connectors
- 2 Logic Inputs and Outputs interface other devices to HALwith toggles or commands, such as push-to-talk or mute switches, projectors,lights, alarms, etc.
- Power on/off transient suppression
- 500 V galvanic isolation
