Rane RAD22 Universal Wall RAD

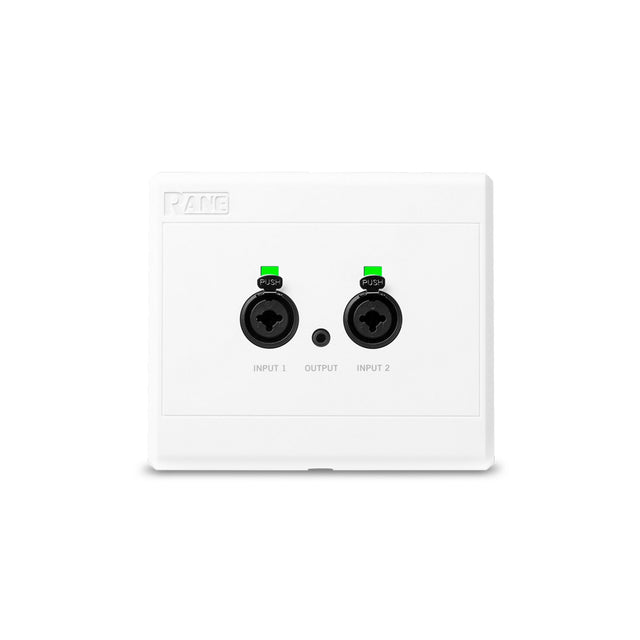

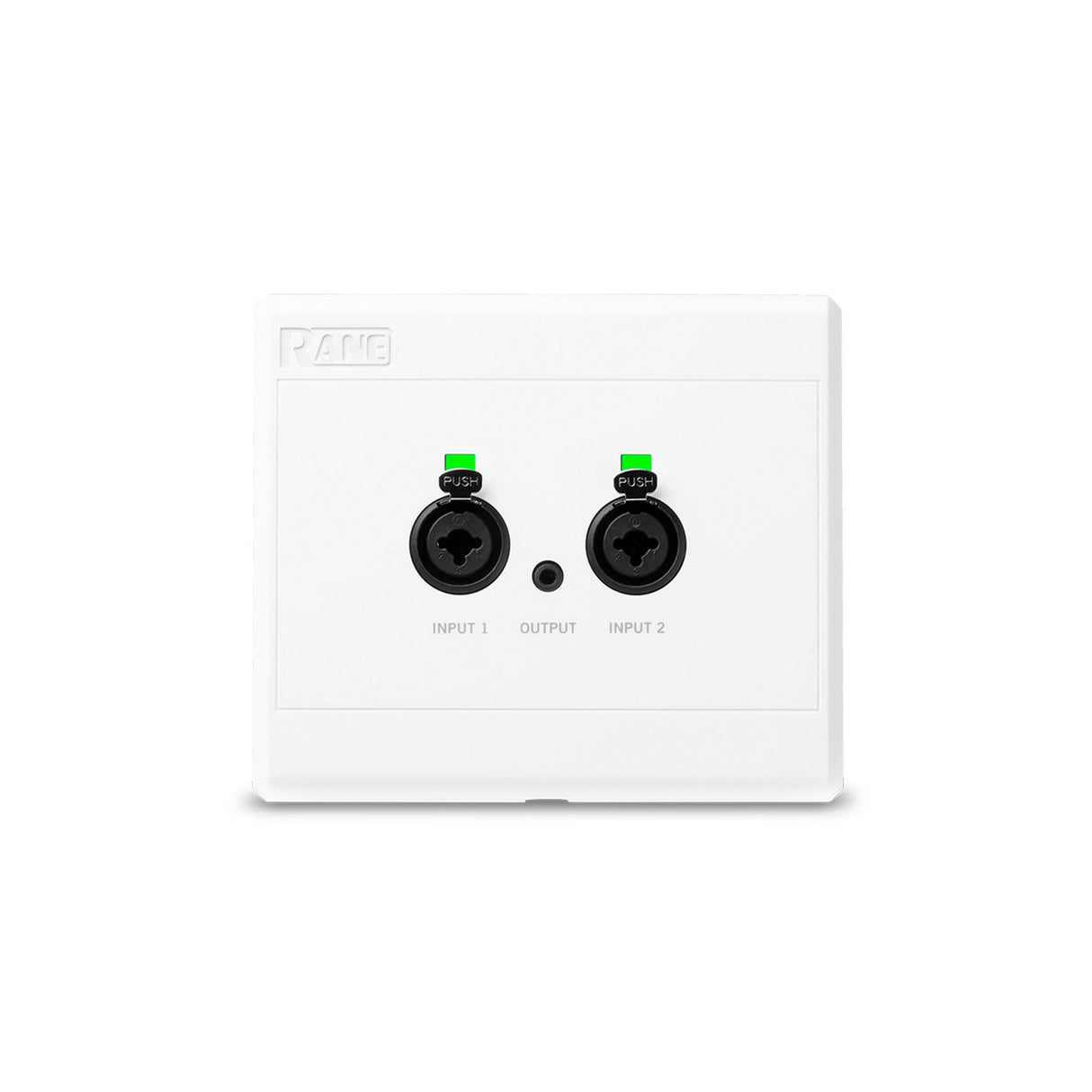

The RAD22 adds flexible I/O capability to RANE DSP systems.It provides two mic and two line inputs via XLR/TRS combination jacks and an1/8” (3.5mm) stereo line output for monitoring, recording or amplification.Smart muting allows for the disconnecting of XLR and 1/4” cables to preventdisruption to sound systems for hot-swapping of microphones - even with 24Vphantom power applied. Connect the RAD22 to RANE DSP with a Cat5e (or better)cable for a local run up to 300 feet (100m) away from the equipment rack.
Key Features
- (2) XLR/TRS combo jack inputs with auto-switching for MIC orLINE level inputs
- Smart muting enables hot-swapping of inputs without soundsystem disruption
- 3.5mm TRS line output for recording, monitoring withheadphones, and live sound amplification
- RJ45 connection to Rane multiprocessor
- Standard enclosure and standard back box mounting optionsfor US, UK and EU
- Isolation circuitry prevents hum due to long cable runs withground differentials
- Improved codec for superior audio transmission
- Completes the RAD family while complimenting the RAD16z
Technical Specifications
Input Signal LEDs
Green LED = 50 dBFS
Red LED = 0.5 dBFS
Microphone Inputs
(Level set in hardware)
Input Impedance
2.16 k balanced (1.08 k + 1.08 k)
Gain Range (dynamicmic mode)
26 - 46 dB, in 1 dB steps
Gain Range (condensermic mode)
14 - 34 dB, in 1 dB steps
Max Input (dynamicmic mode)
-16 dBu, Gain = 26 dB
Max Input (condensermic mode)
-4 dBu, Gain = 14 dB
Equivalent inputNoise
-121 dBu, 20 kHz BW, Rs = 150, Gain = 26 dB
CMRR
-70 dB, Rs = 150, 1kHz, Gain = 26dB
Frequency Response
20 Hz - 20 kHz, +0, -0.5 dB at all Gain settings
THD + Noise
< 0.010% @ 1 kHz, 20 kHz BW, Rs = 150, Output = -6 dBFS,Gain = 26
Phantom Power
24VDC, 10mA Max
Digital Codec
48kHz/24-bit
1/8” (35mm) Output
Impedance
200, 1%, each leg
Maximum Output
14 dBu, < 1% THD, 10 k load
Dynamic Range
106 dB, 0 dBFS, 20 kHz BW, A-weighted
Frequency Response
20 Hz - 20 kHz, +0.0/-0.5 dB
THD + Noise
0.008% @ 1 kHz, 20 kHz BW, -6 dBFS output
Dimensions (width xdepth x height)
5.6” x 1.4” x 4.8” (143 x 36 x 123mm)
Weight
0.94 lb (0.45 kg)
