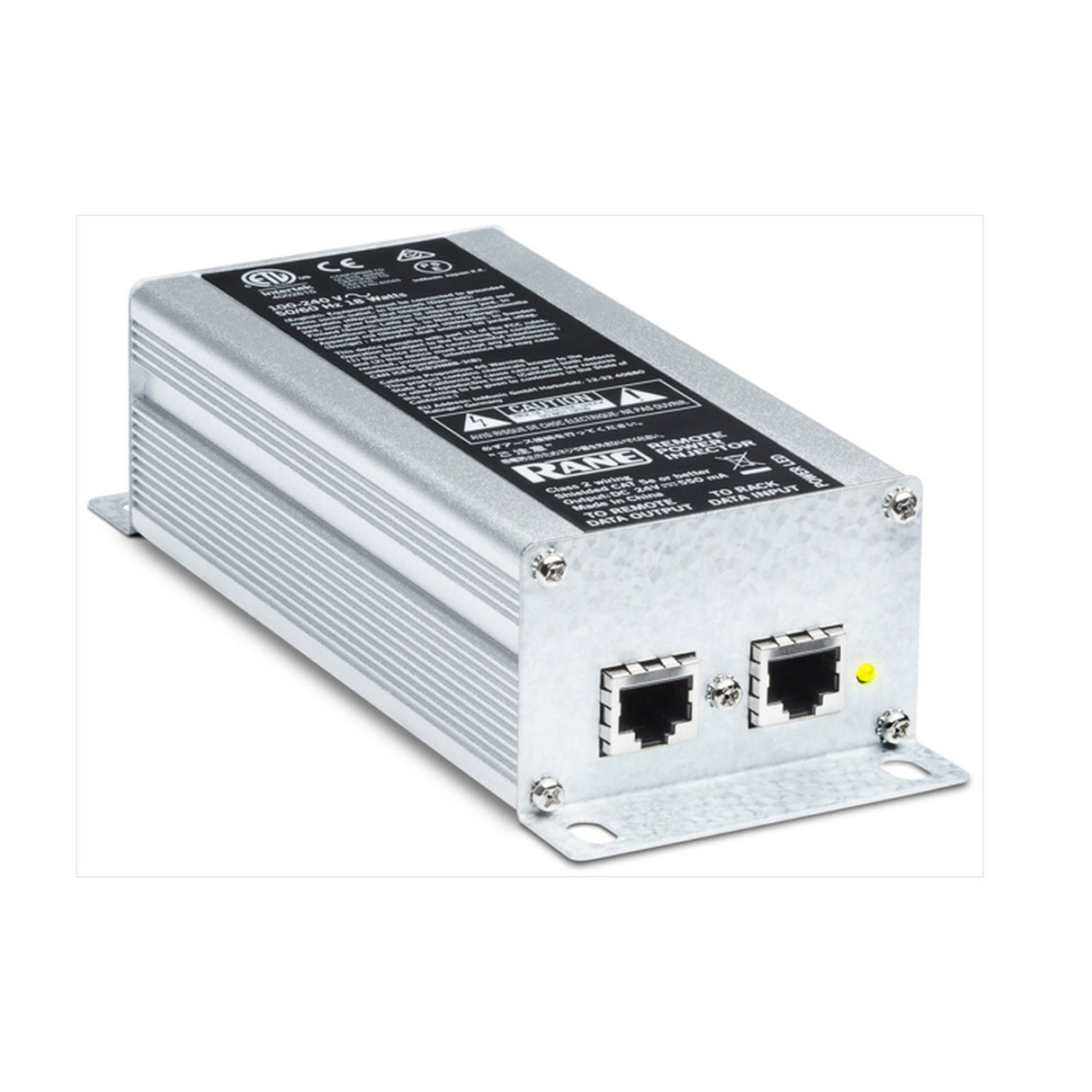

Rane RPI Remote Power Injector for DR6 and RAD26
The RPI is a remote powering device for the DR6 TouchscreenDigital Remote and the RAD26 One-Room Remote Audio Device. This power supply isneeded when using the DR6 or RAD26 with rackmount HAL units (HAL3s and legacyunits). The RPI is connected between the HAL and the peripheral controllerusing shielded Cat 5e cable (or better), and can be located at any pointbetween the HAL units and the peripherals within a 325ft (100m) maximumdistance. It requires 100-240 VAC and utilizes an included standard IEC cable.Its form factor is a rugged metal box, and can be mounted to any flat surface.
Key Features
- Provides necessary power for the RANE DR6 and RD26 when usedwith HAL rackmount units
- Requires Cat5e (or better) for input and output connection
- Rugged chassis mounts to any flat surface
Technical Specifications
Supported HALPeripherals
DR6 RAD26
Connectors
Data Input
RJ45 to DR port on HAL unit
Data Output
RJ45 to HAL peripheral
Mounting Hardware
(4) screws (not included)
RPI Power Output
24 VDC @ 500 mA
Maximum Distance
325 ft / 100m between HAL - RPI - HAL peripheral
Cable Required
Shielded CAT 5e (or better)
Power Required
100-240 VAC, 50/60 Hz
Power Consumption
18 W maximum
Maximum OperatingTemperature
104 F / 40 C
Dimensions (width xdepth x height)
6.90” x 2.79” x 1.78” (175mm x 71mm x 45mm)
Weight
14.1 oz (400g)
