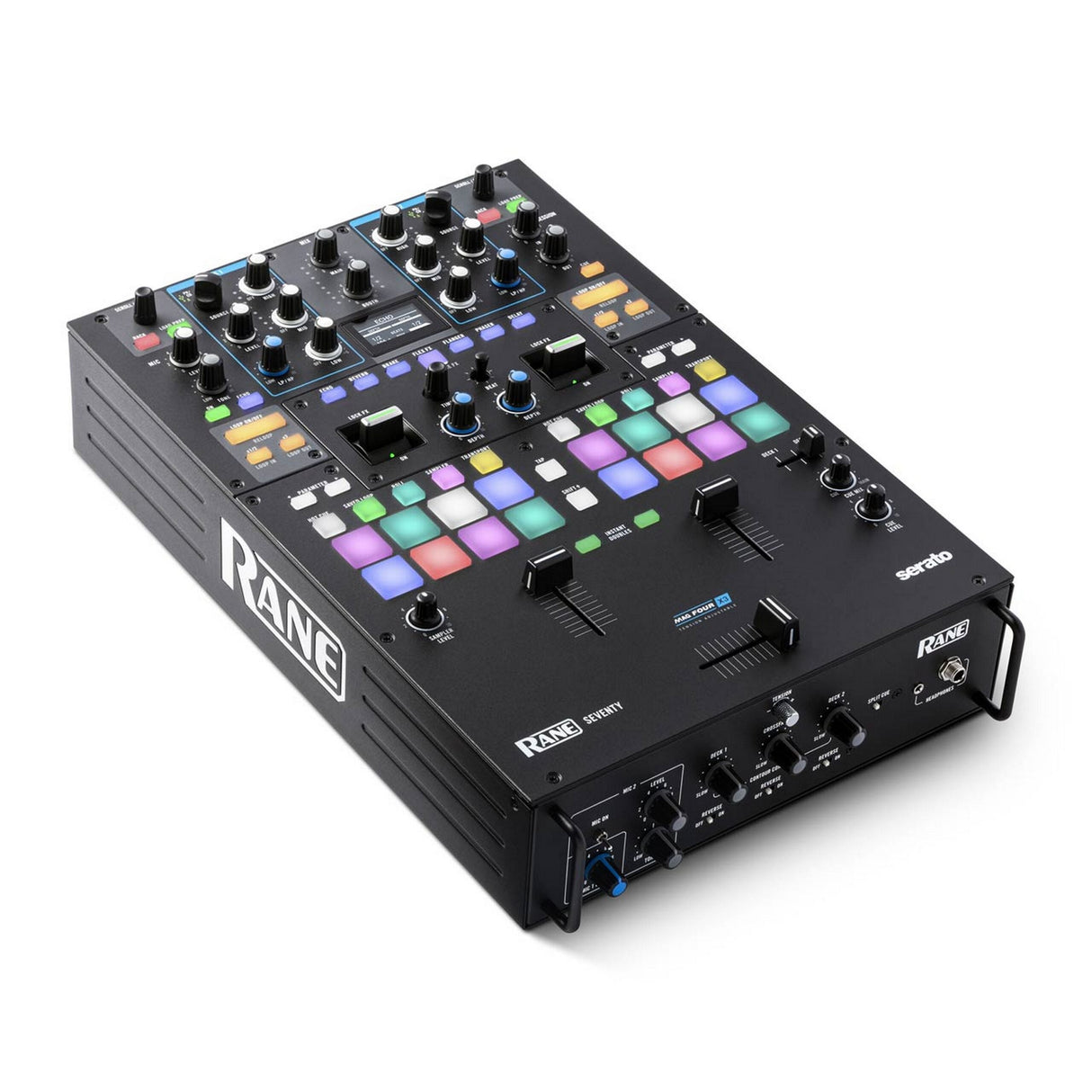

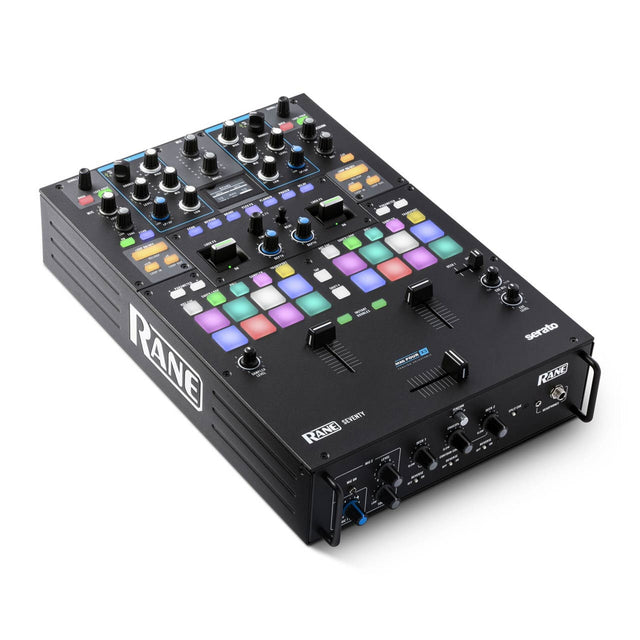

RANE SEVENTY 2-Channel Serato Mixer

Built like a tank
The SEVENTY is the latest edition to RANE's solid steel, Serato battle-ready mixer series. Built from the same high-quality components as the multi world-title winning, SEVENTY-TWO.

Intuitive layout
The SEVENTY gives the most demanding DJ all the tools right where they need them. Instantly select internal Flex FX and Serato FX, dedicated loop control and instant doubles. The SEVENTY also unlocks Serato DJ Pro and Serato DVS.

New MAG FOUR faders
Introducing the brand new contactless MAG FOUR faders. 50% lighter than their predecessors for tighter, faster cuts on the crossfader and upfaders.

FX, loops & Instant Doubles
Radio-style FX buttons give instant access to 6 Flex FX and Serato's software FX. The dedicated loop sections and Instant Double buttons are intuitively laid out for quick, easy access.

Custom Control
Alongside the 3 new MAG FOUR Faders is the external crossfader tension-adjust control. Lose or tight, customize your winning mixers feel.

Performance pads
16 Akai Professional MPC pads with independent control per deck. Includes Hot Cue, Pitch ‘n Time, Saved Loops, Sampler, Scratch Bank, Roll and Transport control.

Technical Specifications

Digital Audio
Converters
AKM High Definition Audio; 24-bit PCM, 48 kHz
Digital Signal Processing
32-bit, floating point, double precision
Dynamic Range
(A-weighted, unity gain)
ADC: 114 dB
DAC: 114 dB
CD Input to Analog Output: 114 dB
CD Input to USB Output: 114 dB
USB Input to Analog Output: 114 dB

Inputs
Microphone 1/2
(Combo XLR/1/4" <6.35 mm> TRS, Mic/Line switchable)
Analog Gain: 30 dB (Mic), 4.75 dB (Line)
Maximum Input: 0.126 Vrms (Mic), 2.3 Vrms (Line)
Gain Trim: Off to +20 dB (unity at center)
Aux Inputs 1/2
(RCA stereo pairs)
Maximum Input: 4 Vrms
Dynamic Range (A-weighted): 114 dB
CD/Phono Inputs 1/2
(RCA stereo pairs, switchable)
CD: Line
Maximum Input: 4 Vrms
Dynamic Range (A-weighted): 114 dB
Phono: RIAA
RIAA Curve: +0.1/-0.2 dB
Gain (@ 1 kHz): 30 dB
Maximum Input (@ 1 kHz): 126 mV
Session Input
(RCA stereo pair)
Maximum Input: 4 Vrms
Dynamic Range (A-weighted): 114 dB

Outputs
Main Outputs
(XLR)
Frequency Response: 20 Hz to 20 kHz (+/- 0.2 dB)
Maximum Output: 8 Vrms
THD+N (@ 1 kHz, 4 Vrms): 0.002%
Booth Outputs
(1/4"/6.35 mm TRS)
Frequency Response: 20 Hz to 20 kHz (+/- 0.2 dB)
Maximum Output: 8 Vrms
THD+N (@ 1 kHz, 4 Vrms): 0.002%
Session Outputs
(RCA stereo pair)
Frequency Response: 20 Hz to 20 kHz (+/- 0.2 dB)
Maximum Output: 4 Vrms
THD+N (@ 1 kHz, 2 Vrms): 0.002%
Headphone Outputs
(1/4"/6.35 mm and 1/8"/3.5 mm TRS)
Maximum Output Voltage: 4 V (no load)
THD+N (@ 1 kHz, 2 Vrms): 0.003%
Output Power: 96 mW (50 ohms)
Controls: On/Off muting

General
Display
1.6” OLED (diagonal)
Pads
(16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
Faders
(3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)
Connectors
(2) XLR outputs (Main)
(2) 1/4” (6.35 mm) TRS outputs (Booth)
(4) RCA stereo input pairs (Deck 1-2)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1-2)
(1) RCA stereo input pair (Session)
(1) RCA stereo output pair (Session)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(2) USB Type-A ports (Deck 1-2 USB Controllers)
(2) USB Type-B ports
(1) IEC power cable input
Power
Connection: IEC
Voltage: 100-240 V, 50/60 Hz
Consumption: 30 W
Dimensions
(width x depth x height)
11.2” x 17.5” x 4.13”
285 x 445 x 105 mm
Weight
12.3 lbs.
5.6 kg
