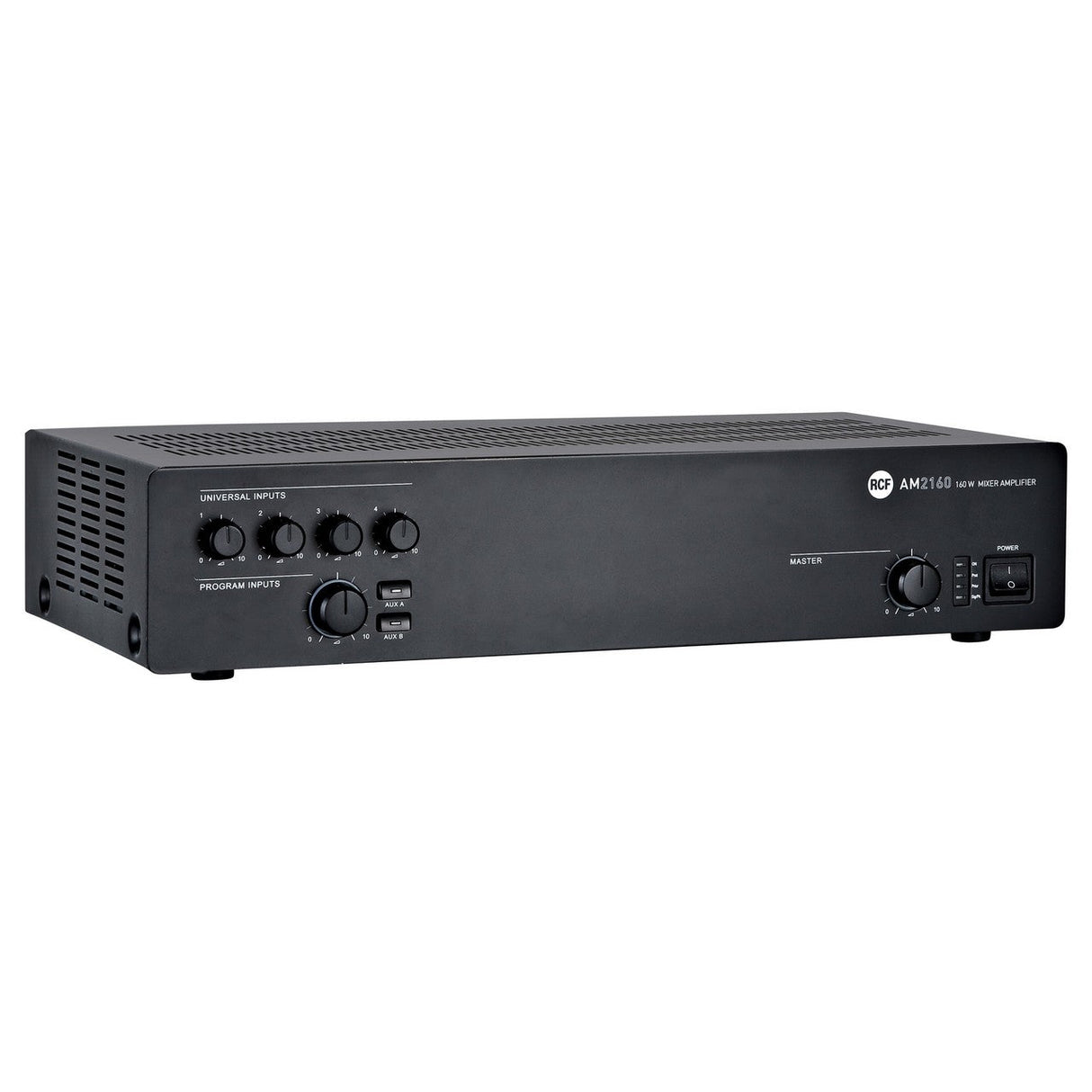

RCF AM2160 160W Digital Mixer Amplifier

RCF AM2160 160W Digital Mixer Amplifier

AM 2160 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). 160 W nominal output power available either for low impedance loudspeakers or 100 - 70 V constant voltage line.

Key Features

• Full digital technology Mixer Amplifier 160 W RMS
• 100 V - 70 V and 4 Ohm outputs
• 4 universal inputs with phantom facility on screw terminal connections
• Presence Control and per-channel High-Pass filters
• XLR connector on input 1
• RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
• Configurable Priority settings, VOX facility on input 1
• Selectable aux inputs with two keys on the front panel for music source
• Aux inputs with volume and tone controls
• Music On Hold and PRE outputs

Technical Specifications

Amplifier specifications
AMPLIFIER CLASS
D
DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER
<0.3 %
FREQUENCY RESPONSE (-3DB)
50 Hz - 14 kHz
NUMBER OF CHANNELS
1
POWER OUTPUT (@ 100 V)
160 W RMS
POWER OUTPUT PER CHANNEL (@ 4 OHM)
160 W RMS

Controls
CHIME TONE
Yes
CONFIGURATION
DIP switch, Front panel
MUSIC ON HOLD
Yes
PRIORITY
Yes

Processing
HIGH-PASS FILTER
150 Hz
TONE CONTROLS
Yes

Input section
BALANCED
7
GENERAL PURPOSE INPUTS (GPI)
2
LINE CONNECTORS
RCA
LINE INPUTS
2
MIC+LINE CONNECTORS
Euroblock, XLR
MIC+LINE INPUTS
4
MIC+LINE PHANTOM
32 V DC
VOX (MIC+LINE)
Yes
MONO
7
PAGING COMMAND
Contact
PAGING CONNECTORS
RJ45
PAGING INPUTS
2
STEREO
2
TOTAL NUMBER OF INPUTS
8
UNBALANCED
2

Output section
SIGNAL OUTPUT CONNECTORS
RCA
POWER OUTPUT CONNECTORS
Euroblock
SIGNAL OUTPUT NUMBER
2

Physical specifications
CABINET/CASE MATERIAL
Metal
COLOR
Black
RACK MOUNTING
19", 2U

Power requirement
OPERATING VOLTAGE
220-240/115 V~ 50/60Hz
POWER CONSUMPTION
350 W
VOLTAGE SELECTION
Internal

Protections
COOLING
Convection
DC DELAY
Yes
FUSES
Yes
SHORT CIRCUIT
Yes
THERMAL
Yes

Size
DEPTH
230 mm / 9.06 inches
HEIGHT
88 mm / 3.46 inches
WEIGHT
5.4 kg / 11.9 lbs
WIDTH
442 mm / 17.4 inches

Standard compliance
CE MARKING
Yes
