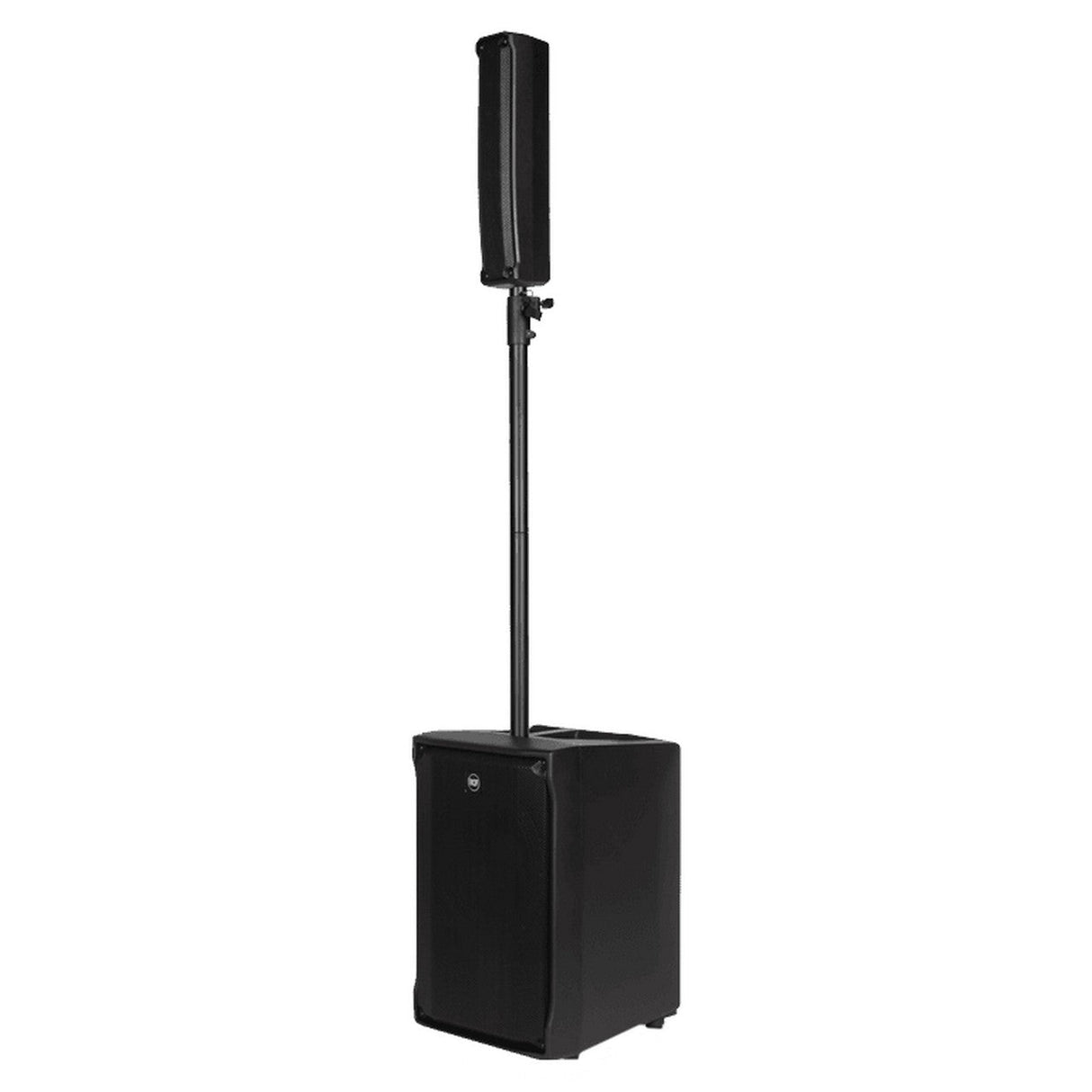

RCF EVOX J8 1400 Watt Active Two Way Portable Array Speaker with 12 Inch Subwoofer Black
The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
Key Features
- 128 dB Max SPL
- 1400 Watt 2-way peak power
- DSP Processing with FiRPHASE
- 12" woofer, high-power 2.5" voice coil
- 8 x 2" ultra compact fullrange 1.0" voice coil
Technical Specifications
Acoustical specifications
FREQUENCY RESPONSE
40 Hz 20000 Hz
HORIZONTAL COVERAGE ANGLE
120
MAX SPL @ 1M
128 dB
VERTICAL COVERAGE ANGLE
Transducers
FULLRANGE
8 x 2.0'', 1.0'' v.c
WOOFER
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL
bal/unbal
OUTPUT CONNECTORS
XLR
INPUT CONNECTORS
XLR, Jack
INPUT SENSITIVITY
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES
220 Hz
LIMITER
Soft Limiter
PROTECTIONS
Thermal, RMS
CONTROLS
Volume, Boost, Mic/Line
Size
HEIGHT
623 mm / 24.53 inches
DEPTH
460 mm / 18.11 inches
WIDTH
400 mm / 15.75 inches
WEIGHT
23.8 kg / 52.47 lbs
Shipping informations
PACKAGE HEIGHT
676 mm / 26.61 inches
PACKAGE DEPTH
581 mm / 22.87 inches
PACKAGE WIDTH
451 mm / 17.76 inches
PACKAGE WEIGHT
28 kg / 61.73 lbs
