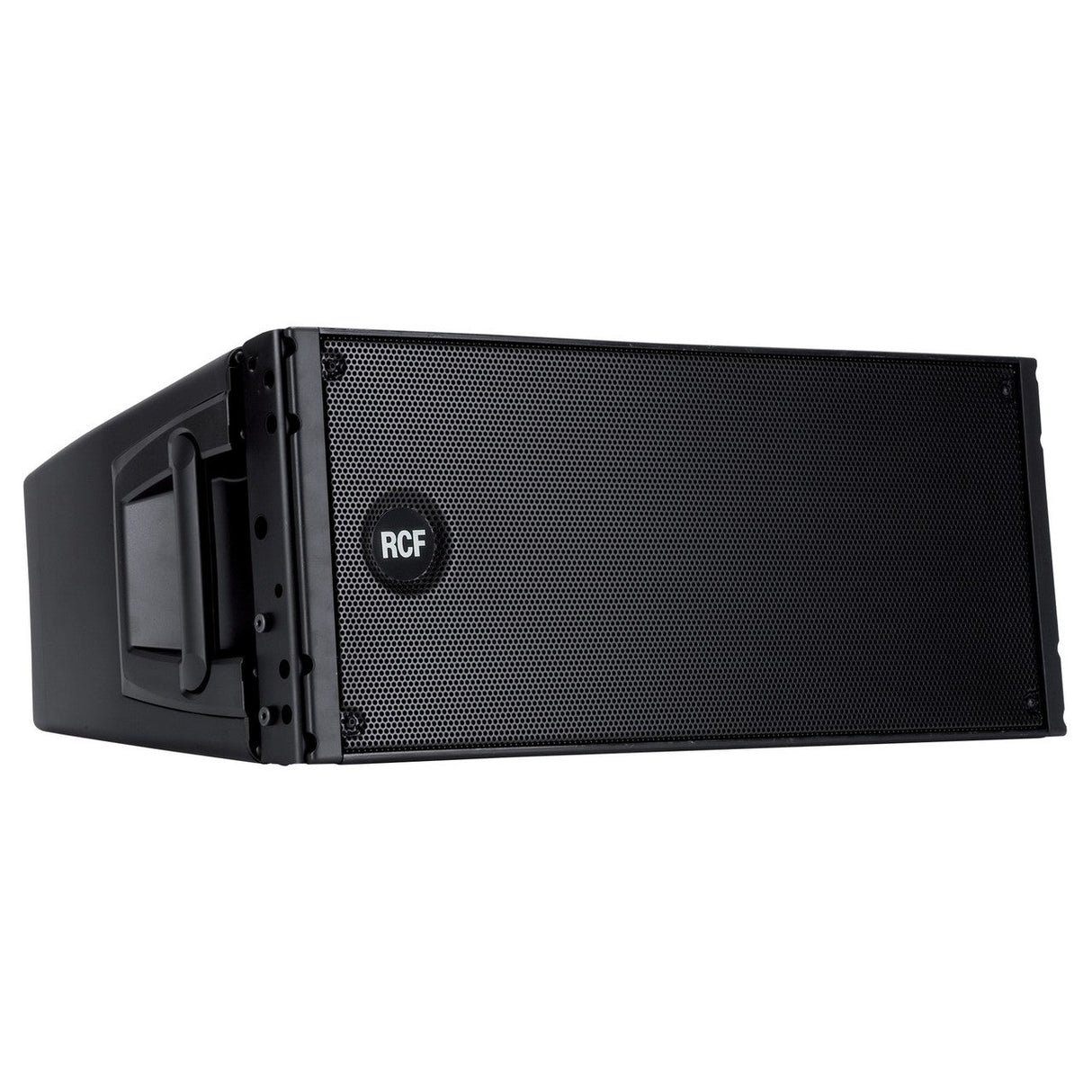

RCF HDL20-A 1400 Watt Active 2 Way Line Array Module Speaker
RCF HDL20-A 1400 Watt Active 2 Way Line Array Module Speaker
RCF HDL20-A 1400 Watt Active 2 Way Line Array Module Speaker
The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations.
Key Features
- 1400 Watt Peak power - 700 Watt RMS
- 135 dB max SPL
- 55 Hz 20 kHz frequency response
- 2 x 10" Woofers
- 1 x 3" Compression Driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
Technical Specifications
Acoustical specifications
FREQUENCY RESPONSE
55 Hz 20000 Hz
MAX SPL @ 1M
135 dB
HORIZONTAL COVERAGE ANGLE
100
VERTICAL COVERAGE ANGLE
15
Transducers
COMPRESSION DRIVER
2.0'', 3.0'' v.c
WOOFER
2 x 10'', 2.5'' v.c
Input/Output section
INPUT SIGNAL
bal/unbal
INPUT CONNECTORS
XLR
OUTPUT CONNECTORS
XLR
INPUT SENSITIVITY
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES
800 Hz
PROTECTIONS
Thermal, RMS
LIMITER
Soft Limiter
CONTROLS
Cluster, HF, High curving, Indoor
Power section
TOTAL POWER
1400 W Peak, 700 W RMS
HIGH FREQUENCIES
400 W Peak, 200 W RMS
LOW FREQUENCIES
1000 W Peak, 500 W RMS
COOLING
Convection
CONNECTIONS
Powercon IN/OUT
Standard compliance
CE MARKING
Yes
Physical specifications
CABINET/CASE MATERIAL
PP Composite
HARDWARE
Rigging flyware
HANDLES
2 side, 2 back
GRILLE
Steel
COLOR
Black
Size
HEIGHT
294 mm / 11.57 inches
WIDTH
705 mm / 27.76 inches
DEPTH
445 mm / 17.52 inches
WEIGHT
30.2 kg / 66.58 lbs
Shipping informations
PACKAGE HEIGHT
375 mm / 14.76 inches
PACKAGE WIDTH
800 mm / 31.5 inches
PACKAGE DEPTH
500 mm / 19.69 inches
PACKAGE WEIGHT
33.2 kg / 73.19 lbs
