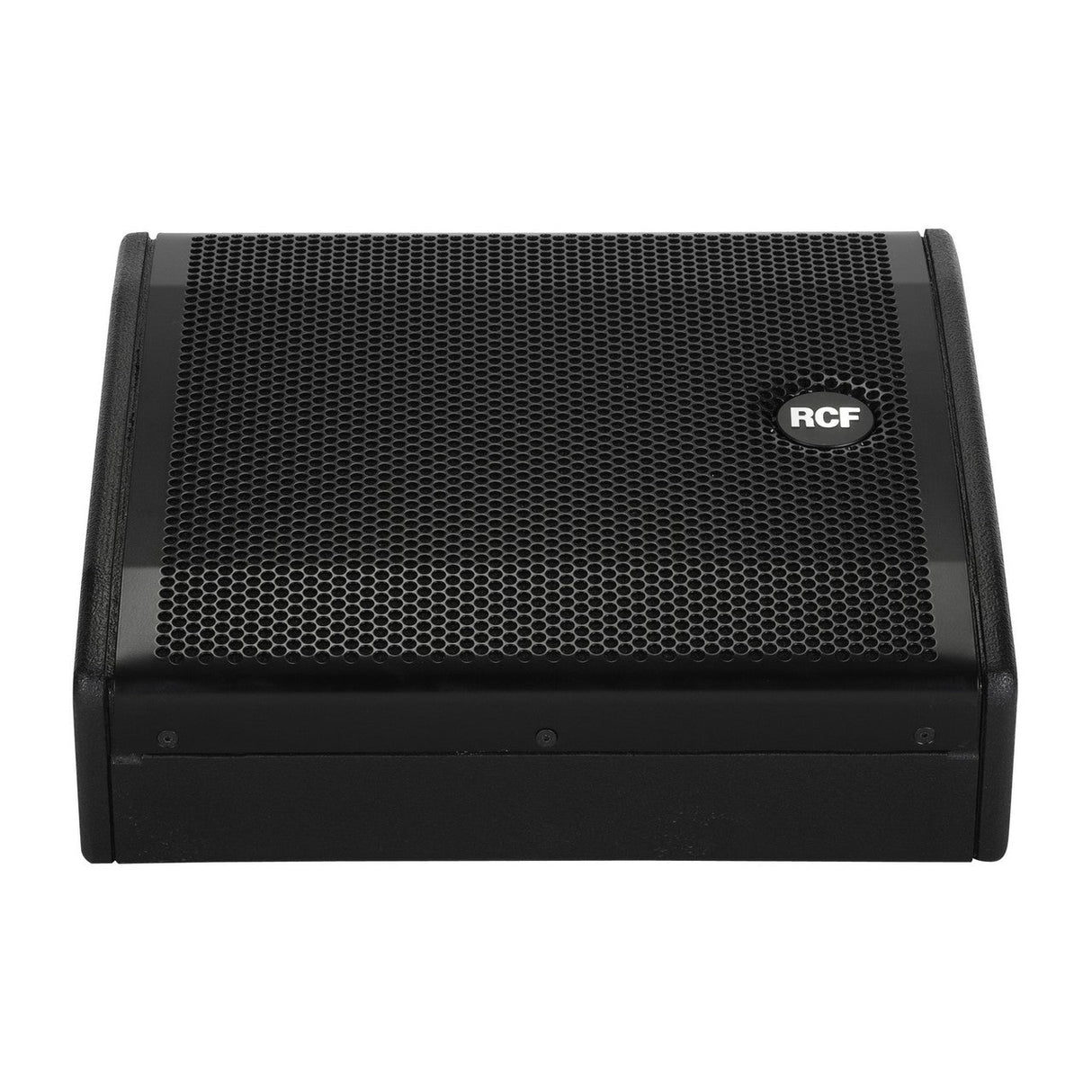

RCF NX 10-SMA 10 Inch Active 2-Way Coaxial Powered Monitor
The NX 10-SMA can also be used as a portable PA system, thanks to the sturdy steel pole mount insert on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special equalization modes: - Floor, for stage monitoring; - Free Field, for the use of the diffuser as the main amplification system. The cabinet is constructed of Baltic birch plywood, finished with an extremely durable paint for intense on-the-road use. An ergonomic side handle, integrated in the entrance panel, allows easy transport of the diffuser.
Key Features
- 800 W Peak digital bi-amplification, 400 W RMS
- 127 dB max spl
- 60 x 60 constant directivity horn
- high-power neodymium 10 Inch woofer, 2.5 Inch voice coil
- Neodymium high frequency driver and 1.7 Inch kapton dome with 1 Inch output
- DSP, floor and free-field equalization, soft limiter and protections
- Combo xlr / jack input, xlr output
Technical Specifications
Acoustic specifications
FREQUENCY RESPONSE
60 Hz 20000 Hz
SPL MAX. AT 1 M
127 dB
HORIZONTAL COVER ANGLE
60th
VERTICAL COVER ANGLE
60th
Transducers
COMPRESSION DRIVER
Coaxial 1.0 '' neo, 1.75 '' vc
WOOFER
10 '' neo, 2.5 '' vc
Input / Output
INPUT SIGNAL
bal / unbal
INPUT CONNECTORS
XRL, Jack
OUTPUT CONNECTORS
XLR
INPUT SENSITIVITY
+4 dBu
Processing
PROTECTIONS
RMS, HF
LIMITER
Soft Limiter
CONTROLS
Freefield, Floor
Power Amplifier
TOTAL POWER
800 W Peak, 400 W RMS
LOW FREQUENCIES
600 W Peak, 300 W RMS
HIGH FREQUENCIES
200 W Peak, 100 W RMS
COOLING DOWN
Convection
CONNECTIONS
Powercon IN / OUT
Compliance with standards
CE MARKING
Yes
Physical specifications
CABINET / CASE MATERIAL
Baltic birch plywood
HANDLES
1 on side
POLE MOUNT / CAP
Yes
GRID
Steel
COLOR
Black
Dimensions
HEIGHT
324 mm / 12.76 inches
WIDTH
450 mm / 17.72 inches
DEPTH
417 mm / 16.42 inches
WEIGHT
14.3 kg / 31.53 lbs
Shipping information
PACKING HEIGHT
504 mm / 19.84 inches
PACKING DEPTH
404 mm / 15.91 inches
PACKING WIDTH
504 mm / 19.84 inches
PACKAGING WEIGHT
17.4 kg / 38.36 lbs
