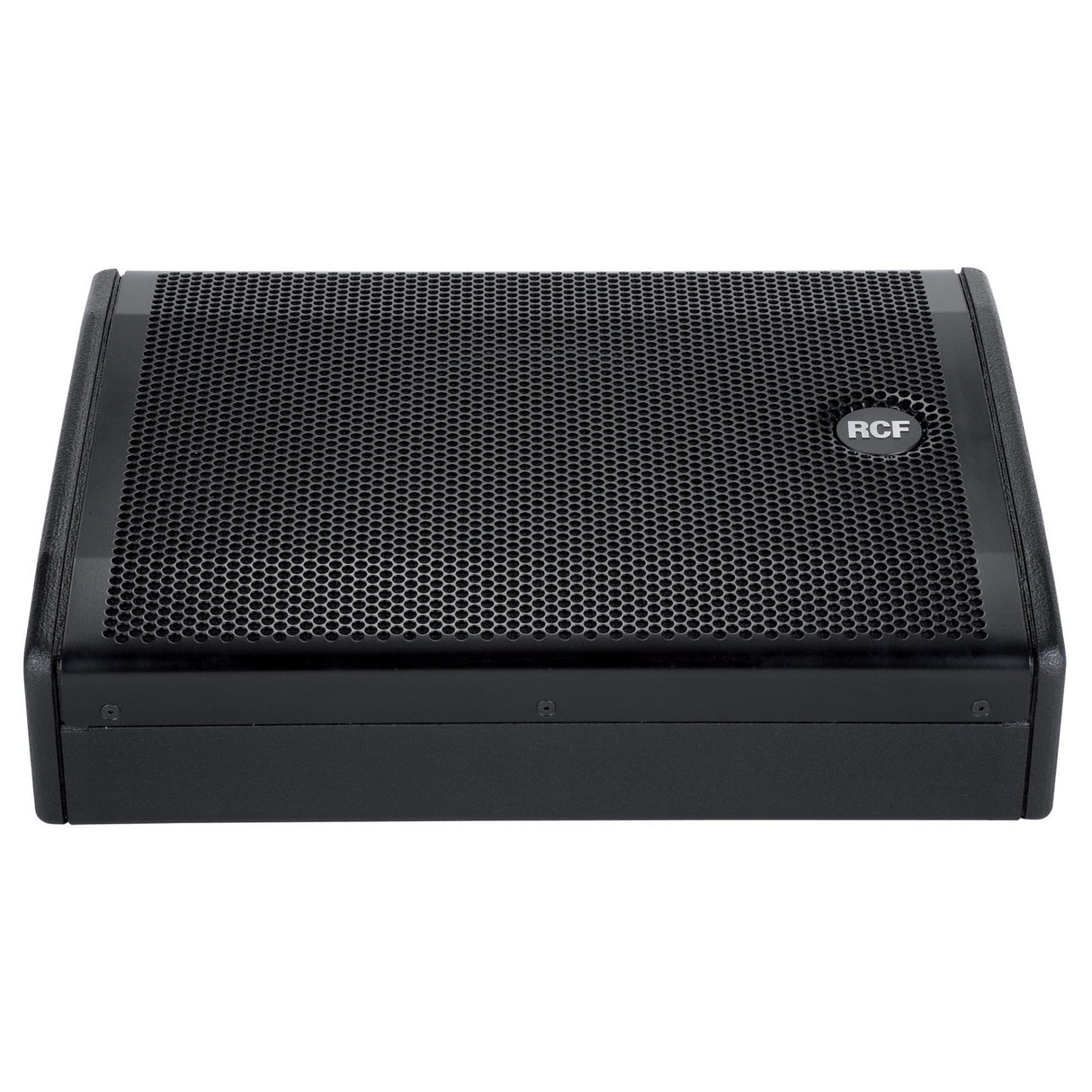

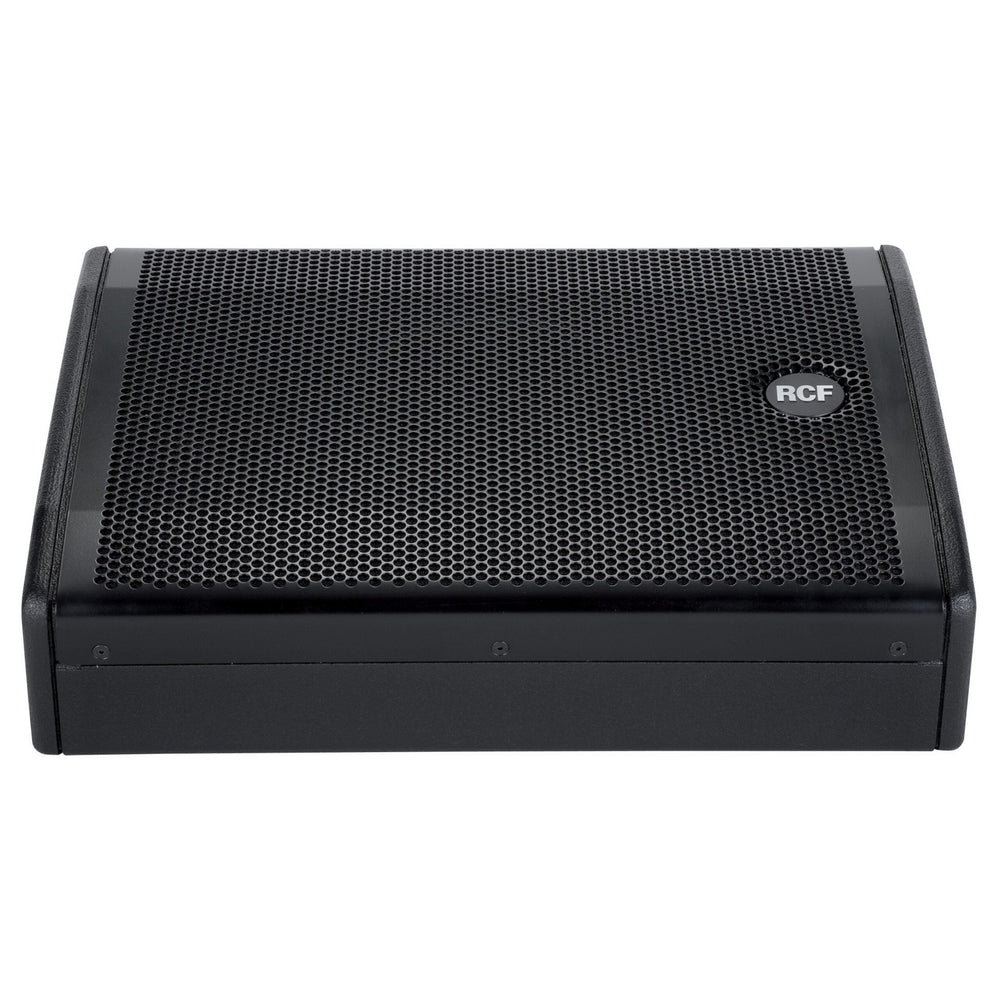

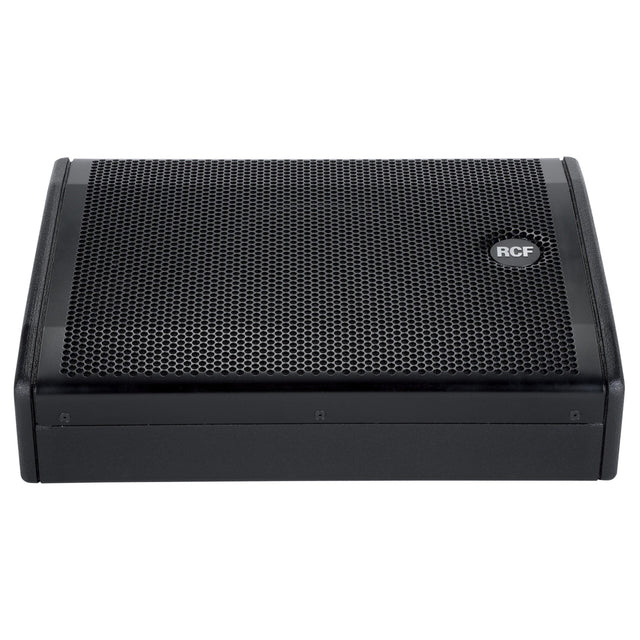

RCF NX12-SMA Active 12 Inch 2-Way Coaxial Powered Monitor
RCF NX12-SMA Active 12 Inch 2-Way Coaxial Powered Monitor
RCF NX12-SMA Active 12 Inch 2-Way Coaxial Powered Monitor
The NX 12-SMA is equipped with new high-power 700 W digital amplifier and a newly designed 12” coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system. The NX 12-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: - Floor, for stage monitoring; - Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.
Key Features
- 1400 Watt Peak, 700 Watt RMS digital bi-amplification
- 129 dB max spl
- 60 x 60 constant directivity horn
- 12" high-power neodymium woofer, 2.5" voice coil
- 1.7" kapton dome, 1" exit, neodymium high frequency driver
- DSP processing, floor - fre field equalization, soft limiter and protection
- Combo xlr/jack input, xlr signal output
Technical Specifications
Acoustical
FREQUENCY RESPONSE
50 Hz 20000 Hz
MAX SPL @ 1M
129 dB
HORIZONTAL COVERAGE ANGLE
60
VERTICAL COVERAGE ANGLE
60
Transducers
COMPRESSION DRIVER
Coaxial 1.0'' neo, 1.75'' v.c
WOOFER
12'' neo, 2.5'' v.c
Input/Output section
INPUT SIGNAL
bal/unbal
INPUT CONNECTORS
XRL, Jack
OUTPUT CONNECTORS
XLR
INPUT SENSITIVITY
+4 dBu
Processor section
PROTECTIONS
RMS, HF
LIMITER
Soft Limiter
CONTROLS
Freefield, floor
Power section
TOTAL POWER
1400 W Peak, 700 W RMS
HIGH FREQUENCIES
400 W Peak, 200 W RMS
LOW FREQUENCIES
1000 W Peak, 500 W RMS
COOLING
Convection
CONNECTIONS
Powercon IN/OUT
Standard compliance
CE MARKING
Yes
Physical
CABINET/CASE MATERIAL
Baltic birch plywood
HANDLES
1 on side
POLE MOUNT/CAP
Yes
GRILLE
Steel
COLOR
Black
Size
HEIGHT
324 mm / 12.76 inches
WIDTH
550 mm / 21.65 inches
DEPTH
417 mm / 16.42 inches
WEIGHT
16.6 kg / 36.6 lbs
Shipping
PACKAGE HEIGHT
604 mm / 23.78 inches
PACKAGE WIDTH
504 mm / 19.84 inches
PACKAGE DEPTH
404 mm / 15.91 inches
PACKAGE WEIGHT
20.2 kg / 44.53 lbs
