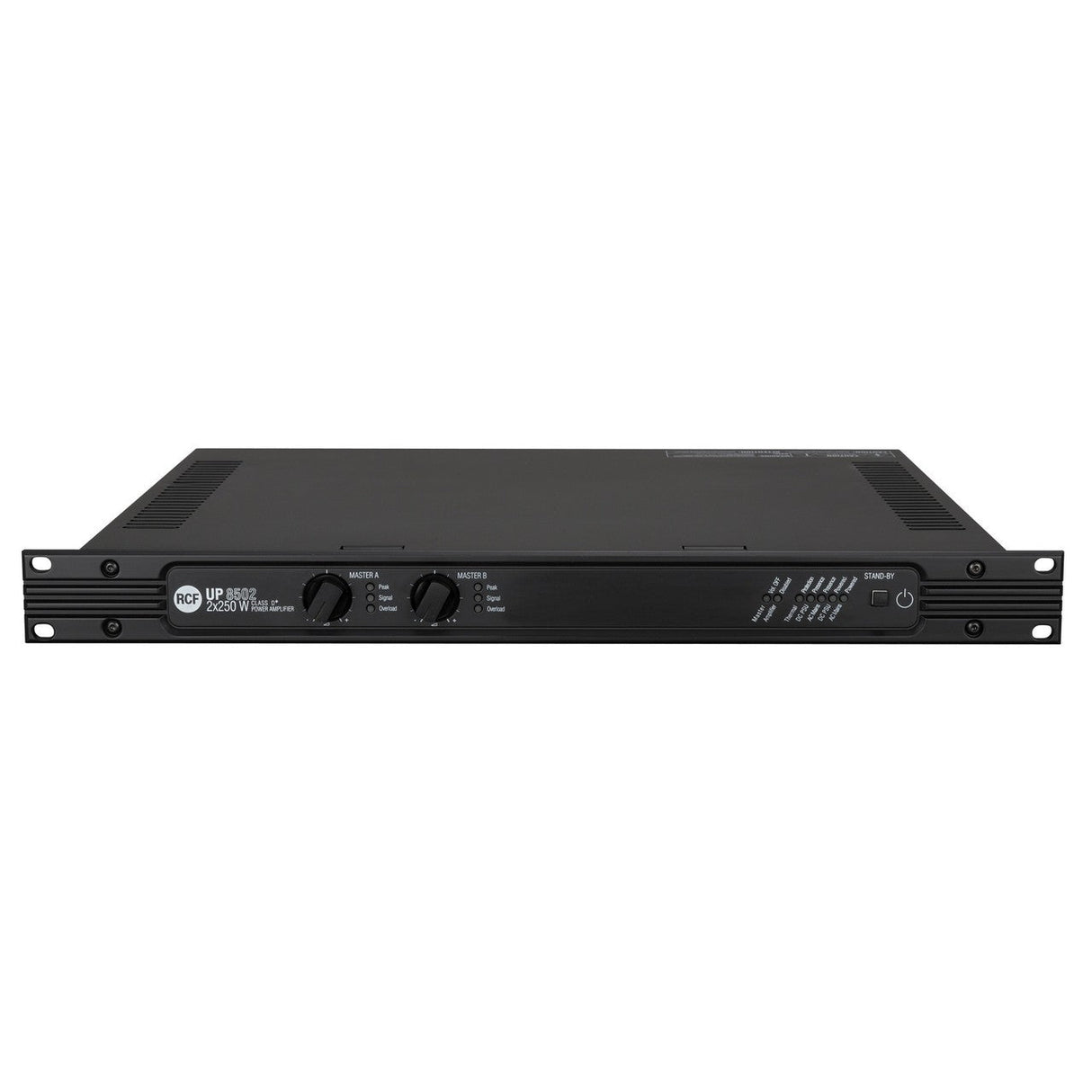

RCF UP-8502 500W Power Amplifier

The new 8000 series power amplifiers are designed around an innovative RCF power supply and amplification technology. The full digital technology used in these new products allows extremely high efficiency both with AC and DC power supply operation, Pro-Quality audio reproduction and compactness all the three models are built-in a single 19” Unit. The switching mode power supplies include an independent DC 48 V section that guarantees extra redundancy to the possible failure of the units. Each channel is provided with two inputs and dedicated priority circuit to get mix/mute and exclusive priority operation. The amplifiers are suitable for 70/100 V applications, using a unique RCF technology that allows to eliminate the line output transformer. Several status LEDs on front panel give a complete feedback on amplifier status, a DIP switch on rear panel allows to disable the frontal volume controls in order to avoid misuses. All connectors are removable screw terminals.

The amplifier is certified according to EN 54-16 standard in combination with RCF DXT 7000 voice alarm system.

Key Features

• Class D amplifier and double switching AC-DC power supply, transformer-less galvanic insulated speaker output
• Pro audio performance
• Selectable 70 - 100 V output per channel
• Double input per channel
• Active full protections on amplifier and power supply
• Stand-by, priority and fault remote commands
• Activity and status indicators
• Volume knobs on front panel with disablement facility
• Light-weight 1 U 19" rack enclosure
• EN 54-16 certified for voice alarm applications, when interconnected with RCF DXT 7000 system

Technical Specifications

Amplifier specifications
AMPLIFIER CLASS
D
CROSSTALK (@ 1 KHZ)
<70 dB
DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER
<0.3 %
FREQUENCY RESPONSE (-3DB)
40 Hz - 16 kHz
NUMBER OF CHANNELS
2
POWER OUTPUT (@ 100 V)
500 W RMS
SIGNAL/NOISE RATE (”A” WEIGHTED)
>86 dB

Controls
CONFIGURATION
DIP switch, Front panel
PRIORITY
Yes

Input section
BALANCED
4
GENERAL PURPOSE INPUTS (GPI)
4
LINE CONNECTORS
Euroblock
LINE INPUTS
4
MONO
2
STEREO
2
TOTAL NUMBER OF INPUTS
4

Output section
GENERAL PURPOSE OUTPUTS (GPO)
1
POWER OUTPUT CONNECTORS
Euroblock

Physical specifications
CABINET/CASE MATERIAL
Metal
COLOR
Black
RACK MOUNTING
19", 1U

Power requirement
DC POWER
Yes
DC POWER VALUE
48 V
OPERATING VOLTAGE
220-240/115 V~ 50/60Hz
POWER CONSUMPTION
800 W
VOLTAGE SELECTION
Internal

Protections
COOLING
Forced
DC DELAY
Yes
FUSES
Yes
SHORT CIRCUIT
Yes
THERMAL
Yes

Size
DEPTH
375 mm / 14.76 inches
HEIGHT
44 mm / 1.73 inches
WEIGHT
5.2 kg / 11.46 lbs
WIDTH
482 mm / 18.98 inches

Standard compliance
CE MARKING
Yes
EN54-16 CERTIFIED
Yes
CPR NUMBER
1438-CPR-0241
