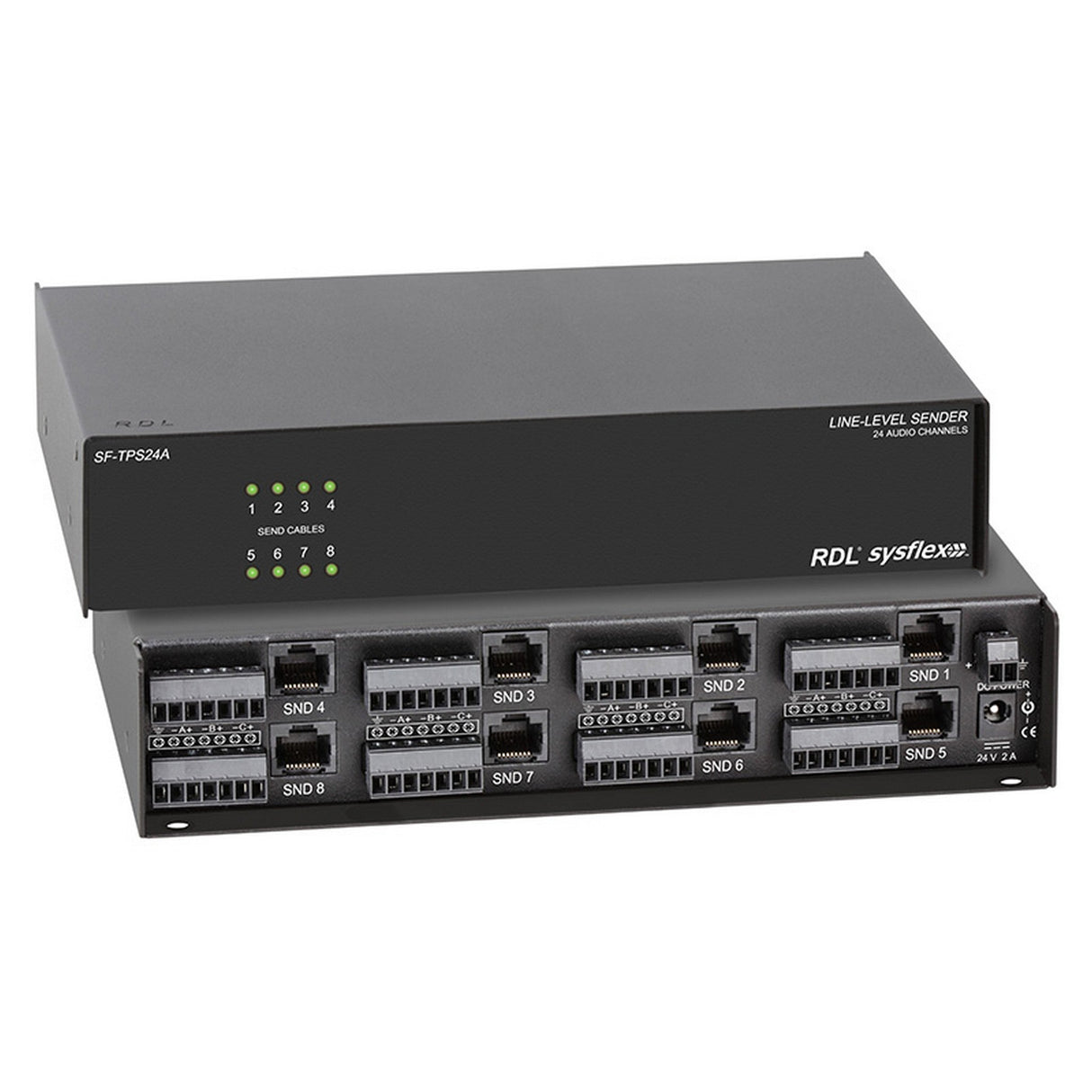

Overview of the RDL SF-TPS24A Eight-Section Audio Sending/Transmitter Chassis
The RDL SF-TPS24A is an audio sending/transmitter chassis that consists of eight sections. This product is designed to be compatible with RDL Format-A twisted pair products. Each section can connect up to three +4 dBu balanced line-level sources through a detachable terminal block. These signals are then transmitted via pairs A, B, and C of the associated RJ45 connector.
It's important to note that the SF-TPS24A feeds all three signal pairs in the twisted pair cable, and no other sending modules may be connected on the same cable with each RJ45 output.
This product can be powered directly through a 24 Vdc power supply using either the power jack or the detachable terminal block. Additionally, local power connected to the module is also fed to all modules that are connected to the eight OUTPUT RJ45 jacks. Each RJ45 connector power is protected against wiring faults by an automatically resetting fuse. The front-panel green LEDs indicate valid module power on each RJ45.
Key Features
- The RDL SF-TPS24A is a transmitter chassis designed for audio sending.
- It is compatible with RDL Format-A twisted pair products.
- Each section of the chassis can accommodate three +4 dBu balanced line-level sources.
- The sources can be connected using a detachable terminal block.
- The signals are converted and transmitted on pairs A, B, and C of the RJ45 connector.
- The chassis has eight separate three-pair Format-A sender sections.
- It can send up to 24 audio channels.
- The inputs for each section are wired to feed pairs A, B, and C.
- The chassis utilizes all three Format-A pairs.
- It features studio-quality precision active balanced circuitry.
Technical Specifications
Inputs (24)
20 kĪ© balanced
Input Connection
Detachable Terminal Block (Balanced)
Input Level
+4 dBu Bal.; +22 dBu Max
Format-A Signal Pairs Used (3)
A, B, C (per section)
Output
RDL TP Format-A
Output Connection
RJ45
Frequency Response
10 Hz to 50 kHz (Ā± 0.1 dB)
THD+N
< 0.005%
Noise below +4 dBu
< 90 dB
Crosstalk
< 85 dB (20 Hz to 20 kHz)
Headroom above +4 dBu
> 18 dB
CMRR
> 60 dB (50 Hz to 150 Hz)
Indicators (8)
Power (1 per RJ45)
Power Connections (2)
Power Jack; Detachable Terminal Block
Ambient Operating Environment
32 Degrees to 122 Degrees F (0 Degrees to 50 Degrees C)
Power Requirement
24 Vdc @ 440 mA (per board) plus connected loads (1.6 A max)
Dimensions
8.74 x 1.68 x 5.78ā (22.2 x 4.27 x 14.68 cm)
Package Type
Cardboard Box
Package Dimensions
9.5 x 2.25 x 7 (24.1 x 5.71 x 17.8 cm)
Shipping Weight
2.64 lbs
Unit weight
2.3 lbs
Tariff code
8543.70.9960
