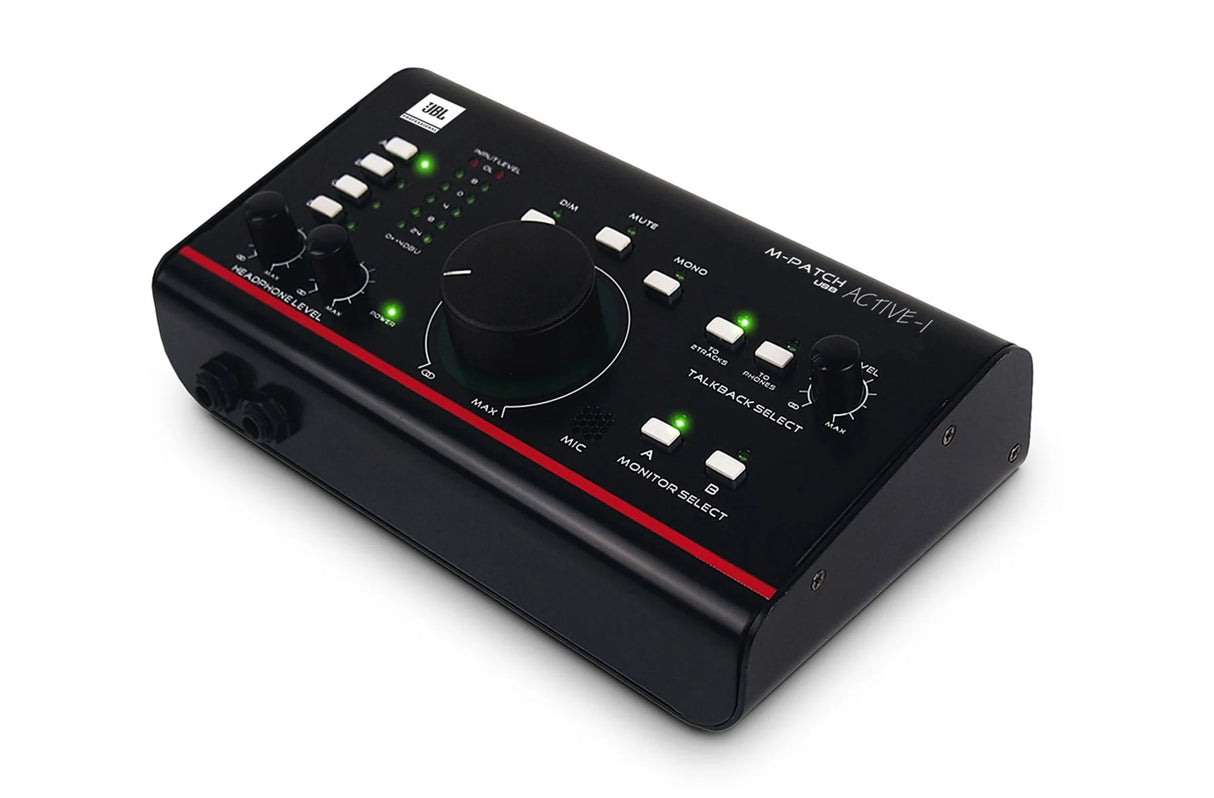

JBL M-Patch ACTIVE-1 Precision Monitor Control Plus Studio Talkback

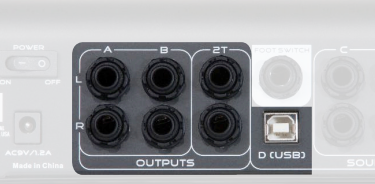

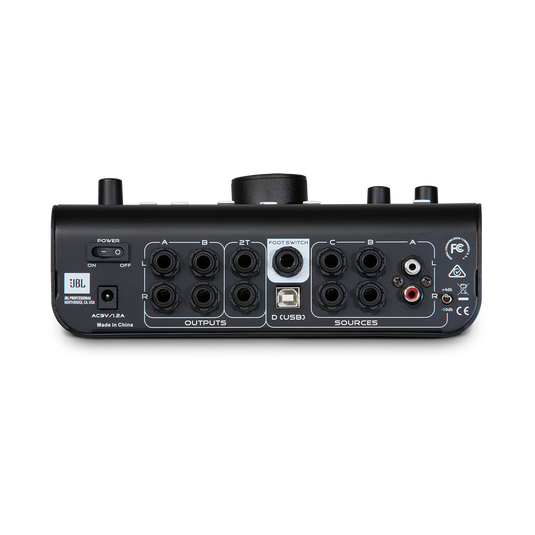

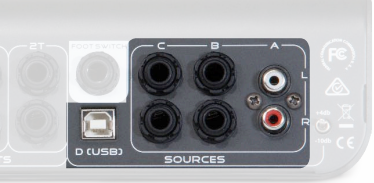

The M-PATCH ACTIVE-1 accommodates four input sources (3 x stereo analog and 1 x USB) and three stereo analog outputs plus USB. In addition to the core functionality of providing seamless A/B switching between input signals and output speaker monitor systems, the ACTIVE-1 delivers a full complement of audio monitoring functions, including precision volume control, mono summing, mute, and dim (ducking). A handy footswitch-activated talk-back function, complete with on-board condenser microphone and selectable routing, has also been integrated, making the ACTIVE-1 the ideal low-cost solution for a broad range of studio production applications.

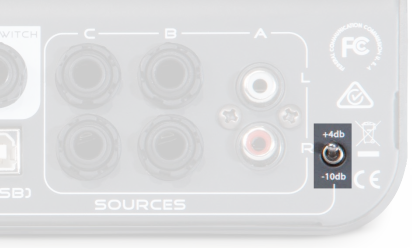

Designed to provide the lowest-noise operation possible in an active monitor controller, the ACTIVE-1 is ideal for applications where both signal attenuation and boost is needed. In addition to the feature complement found on the PASSIVE-1, the ACTIVE-1 also includes LED level metering and convenient switch-selectable +4dBu/-10dBV input stage operation.
The ACTIVE-1 features on-board USB, allowing for direct digital audio recording and playback when used with a computer DAW. The USB output mirrors the signals appearing at the analog 2 Track outputs, while the computerās L/R output feeds the USB in.
Housed in a sturdy metal chassis and fitted with a durable array of switches and secure connectors, the ACTIVE-1 is built to provide years of worry-free operation.
Key Features
- 4 inputs, 4 outputs
- USB Input and Output

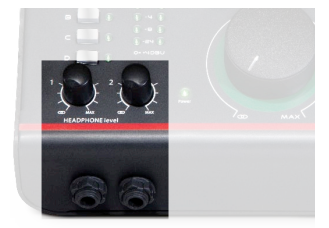

- 2 headphone amps

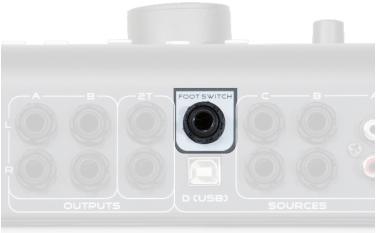

- Footswitch-Controlled Talkback
- Built-in Talkback Mic
- Mono summing
- Dim switch
- A/B Speaker Switching
- Precision Rotary Attenuator
- Level meters
Technical Specifications
Frequency Range
Line Level Inputs and Outputs +0.5: -1dB 10hz to 30kHz
Noise
Monitor A B, Studio Outputs, 2-Track: -92dBu Typical
Outputs
Line Level (-10dB): -10dBu/+8dBu (NOM/MAX)
Line Level (+4dB): +4dBu/+22dBu (NOM/MAX)
Dynamic Range
Line Inputs to outputs: 114dB minimum
Crosstalk
Mute/Level OFF: 92dB @1kHz
Volume Control Range
Dim Switch: -20dB
Master Volume studio output gain: 34dB max
USB
Channels: 2
Drivers: Legacy type and ASIO
Compatibility: All current USB Audio systems

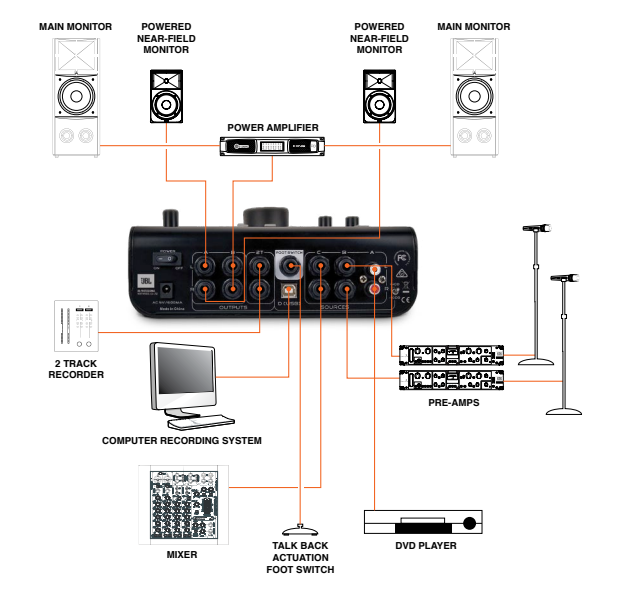

Installation / Use Cases
- Controlling studio audio levels using a precision monitor controller
- Recording environments requiring accurate speaker volume control
- Studio setups using monitor switching and talkback functionality
- Audio production workflows needing centralized monitoring control
Package Contents
- JBL M-Patch Active-1 Monitor Controller
Frequently Asked Questions
What is the JBL M-Patch Active-1 used for?
The JBL M-Patch Active-1 is a monitor controller used to manage and control audio levels between audio interfaces and studio monitors in recording environments.
Does the M-Patch Active-1 support talkback functionality?
Yes. It includes talkback functionality for communication in studio recording setups.
Is the M-Patch Active-1 suitable for studio monitoring?
Yes. It is designed for accurate speaker level control in professional and home studios.
What type of device is the M-Patch Active-1?
It is an active monitor controller for managing audio output and monitoring systems.
Who should use the JBL M-Patch Active-1?
It is ideal for audio engineers, producers, and studio users needing precise monitor control.
