Palmer MB L A Active Dual Channel Line Merger

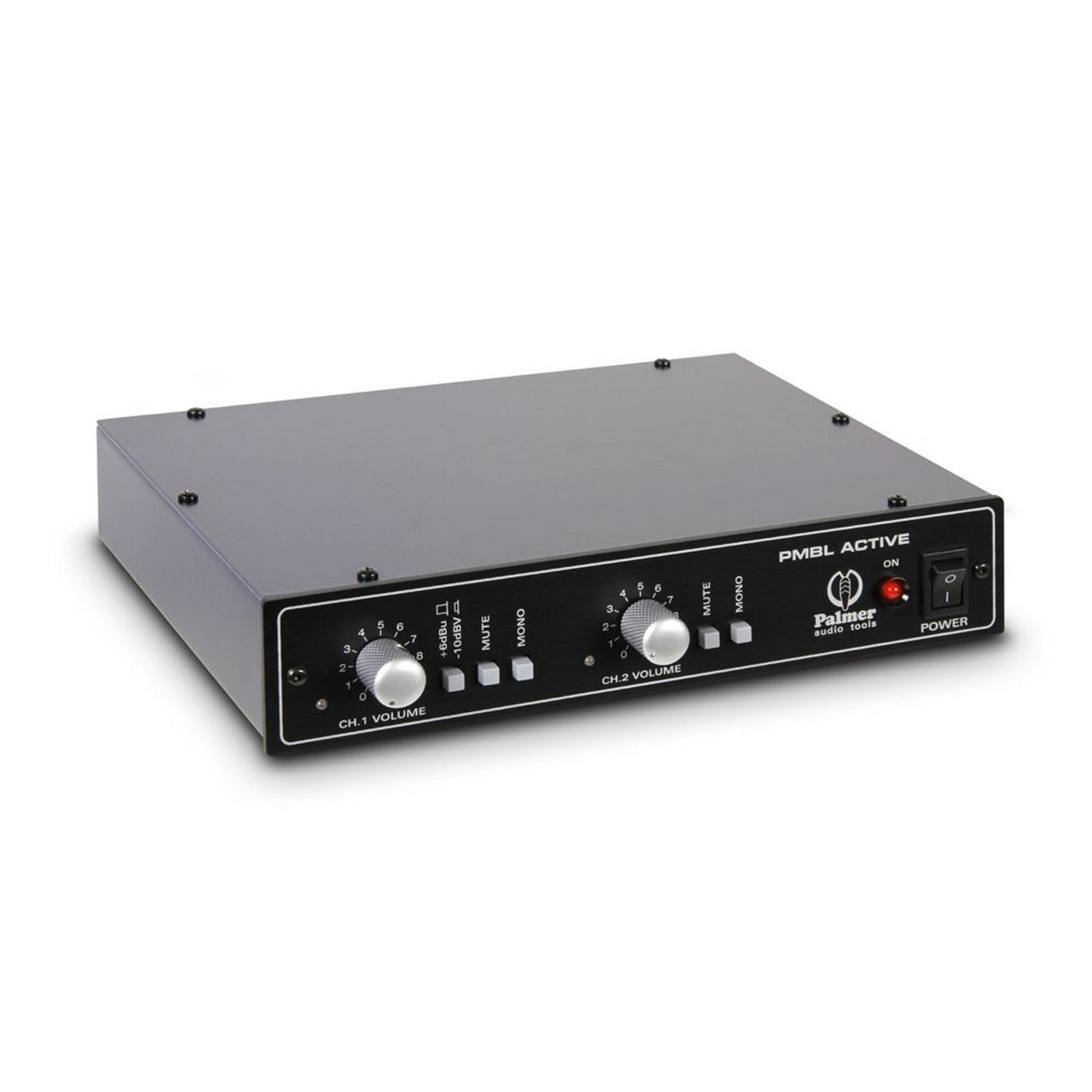

The PMBL-ACTIVE is a 2-channel stereo line level merge box that can be used to merge two stereo line signals into one stereo output. One classic application: routing two mixing desks to one PA system. The unit has enough amplification to boost even semi-professional levels accordingly. The input channels are galvanically isolated from one another. Each channel offers a mute switch and the ability to mix the stereo signal down to mono. The unit is housed in a 1 U/9.5" case and has a built-in power supply.
Technical Specifications
Product type
Merger
Type
active
Inputs
2
Input connectors
6.3 mm jack , XLR
Input impedance
2 k Ohm(s)
Adjustable input
Yes
Outputs
2
Output connectors
XLR
Adjustable output
no
Output impedance
600 Ohm(s)
Max. output level
+20 dBu (balanced) dBu
Indicators
Power
Controls
+6 dBu / -10 dBV switchable , ground lift , mono/stereo , mute , Power
Operating voltage
integrated (115 / 230 V)
Power consumption
2.5 W
Width
222 mm
Depth
160 mm
Height
44 mm
Cabinet material
sheet steel/aluminium
Cabinet surface
powder coated/anodized
Weight
1,51 kg
