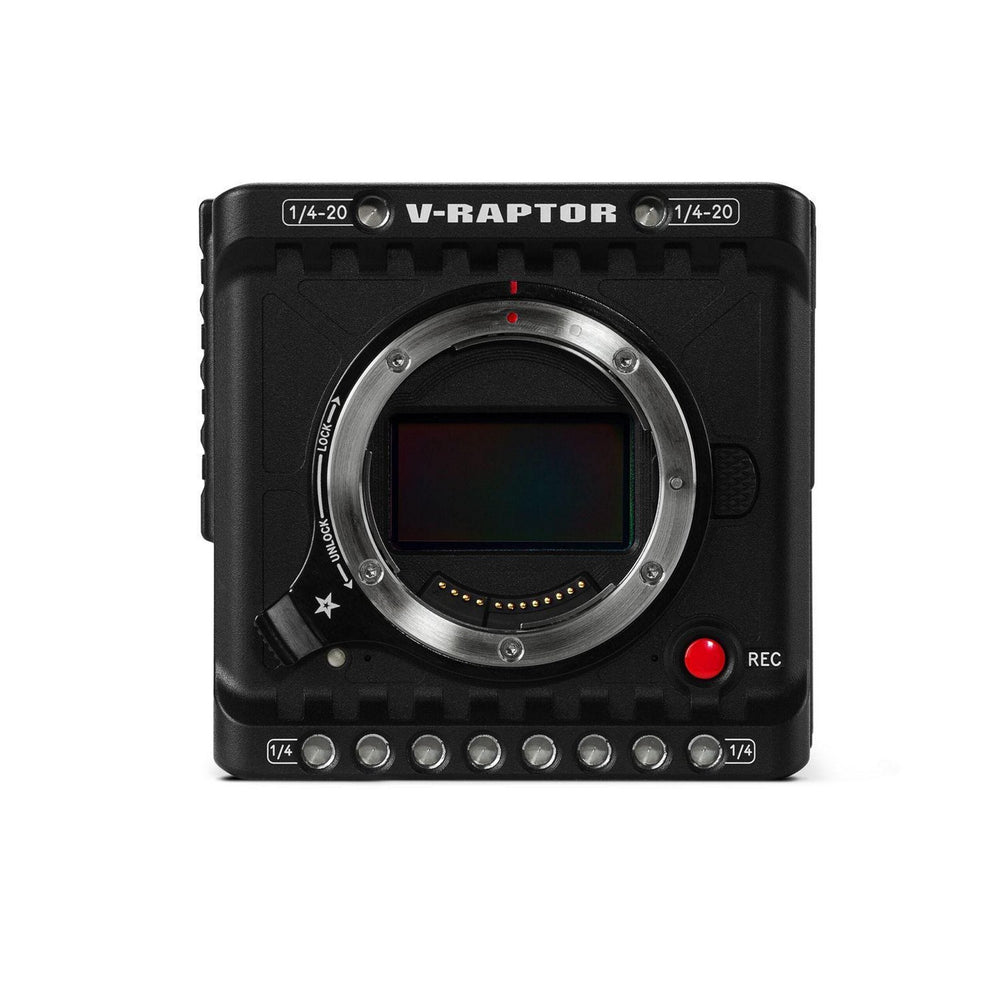

RED V-RAPTOR 8K VV + 6K S35 Dual Format Cinema Camera

V-RAPTOR 8K VV is the most powerful and advanced RED cinema camera ever. As the brand’s new flagship system and sensor, as well as the first entrant into the new DSMC3 generation of cameras, V-RAPTOR stands alone at the forefront of digital image capture technology.

Featuring a groundbreaking multi-format 8K sensor- with the ability to shoot 8K Large Format or 6K S35, it unlocks the largest lens selection of any comparable camera on the market and allows shooters the ability to always deliver at over 4K. The sensor also boasts the highest recorded dynamic range of any RED camera and the fastest ever cinema quality scan time. With a dynamic range of over 17 stops and featuring scan times 2x faster than any previous RED camera, allowing users to capture up to 600 fps at 2K. V-RAPTOR will also continue to feature RED’s proprietary REDCODE RAW codec, allowing users to capture 16-bit RAW, and leverage RED’s latest IPP2 workflow and color management.

Along with a new flagship sensor, the V-RAPTOR features a modernized platform in an amazingly compact package weighing in at barely over 4 lbs. With two 4K 12G-SDI outputs, XLR audio and phantom power via adapter, and 1080p livestream, this system can handle most anything a shooter can throw at it.

Technical Specifications

SENSOR TYPE
V-RAPTOR 8K VV 35.4 Megapixel CMOS
EFFECTIVE PIXELS
8192 - 4320
SENSOR SIZE
40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE
17+ stops
MOUNT TYPE
Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choices
MAX DATA RATES
Up to 800 MB/s using RED branded or other qualified CFexpress media cards<1>
REDCODE RAW MAX FRAME RATES
120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
BEST AVAILABLE REDCODE SETTINGS
REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fp
REDCODE RAW ACQUISITION FORMATS
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
CONSTRUCTION
Aluminum Alloy
WEIGHT
4.03 lbs (without body cap and CFexpress card)
DIMENSIONS
6" x 4.25" x 4.25" (L x W x H)
BATTERY TYPE
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries<1>
DC POWER INPUT
11-17V via 6-pin DC-IN
OPERATING TEMPERATURE
0C to 40C (32F to 104F)
STORAGE TEMPERATURE
-20C to 50C (-4F to 122F)
RELATIVE HUMIDITY
0% to 85% non-condensing
COLOR MANAGEMENT
Image Processing Pipeline 2 (IPP2)
Supports 33-33-33 3D LUTs
Supports import of CDLs
AUDIO
Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
REMOTE CONTROL
Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload
MONITOR OUTPUTS
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS
DSMC3 RED Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4" LCD for camera control (no preview video)
RED CONTROL
Access full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
Included
1x V-RAPTOR 8K VV Body
1x DSMC AC Power Adaptor Pack 150W
1x RED Logo Sticker
V-RAPTOR Information Card (incl. registration and support info)
2 Year Standard Warranty
