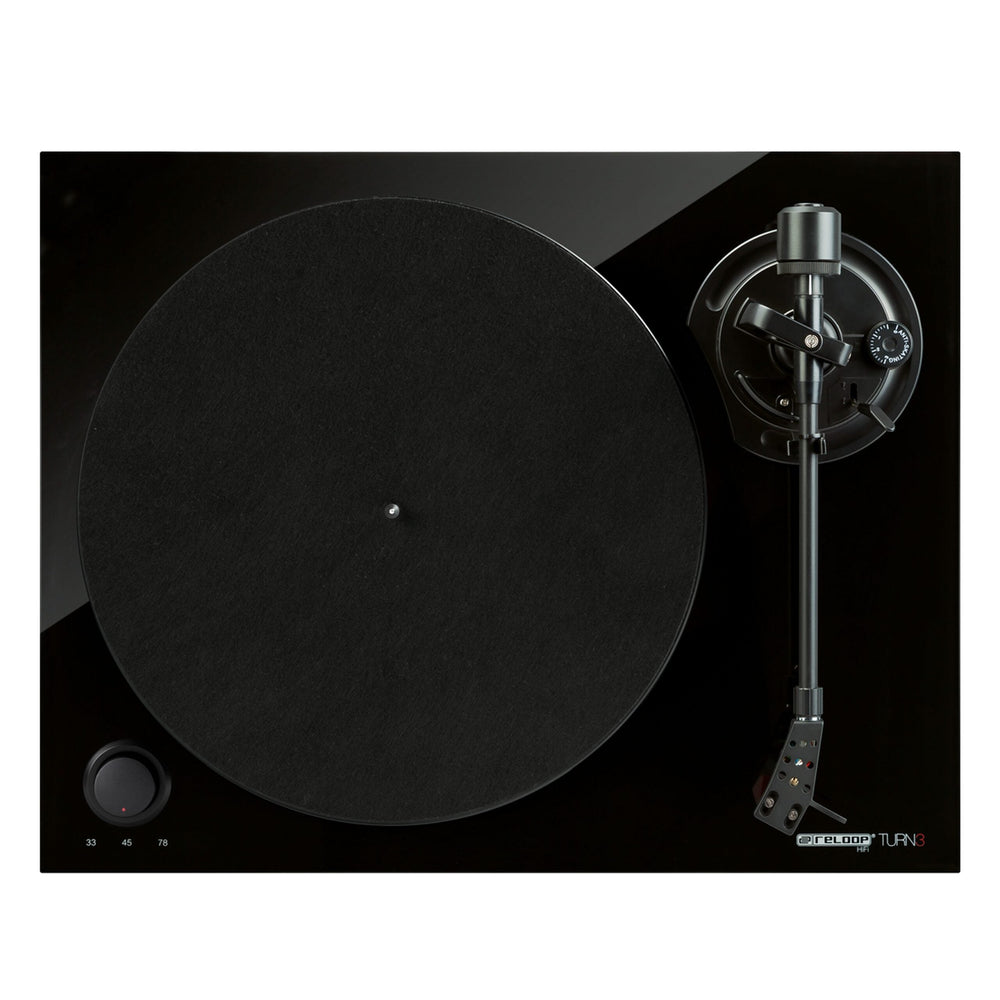

Reloop TURN-3 Professional Belt Drive Turntable System

Over 20 years experience
With over 20 years experience in the DJ & Pro-Audio industry, Reloop is one of the market leaders for DJ turntables and accessories. Now, for the first time, Reloop is proud to present a hifi turntable that has been especially designed for music enthusiasts and sound purists: TURN3.

Low-Noise DC Motor
The TURN3's belt drive operation is powered by a low-vibration DC motor, keeping unwanted noise to a minimum.

Electronic Speed Control for 33, 45 & 78 RPM
Pure convenience: No troublesome belt adjustments required with TURN3. Depending on your choice of vinyl, it is possible to comfortably adjust the desired speed to 33, 45 or 78 RPM, thanks to the large speed selection knob. Even Shellac records can be played back, when using a suitable pick-up system.

Precision Tone Arm
The straight tone arm, which was especially designed for TURN3, offers optimal tracking performance for a superior sound experience.

Anti-Skating System Wheel
The tonearm anti-skating setting can be adjusted comfortably with a dedicated wheel for optimal tracking adjustment.

Flexible Headshell Connection
The headshell connection makes TURN3 a really flexible performer. The GM/SME locking mechanism allows for easy switching between pick-up cartridges mounted on different headshells.

USB Recording Function
Thanks to the integrated USB interface you can digitize your favorite records directly to PC/MAC in CD quality. Great for listening on the go, or archiving your treasured vinyl collection.

Semi-Automatic for Auto Stop
Practical and comfortable: With the integrated semi-automatic control, TURN3 stops automatically at the end of a record. Purists can deactivate the semi-automatic system for fully manual playback pleasure.

Anti-Vibration Feet
TURN3 is equipped with de-coupled, shock-absorbing feet which help remove unwanted vibration and guarantee a clean audio signal.

Aluminum Diecast Platter with Deadening Rubber Coating
The turntable’s platter is a heavy aluminum die-cast construction, facilitating a solid & smooth rotation performance. The additional rubber damping beneath the platter adds further mass and helps eliminating unwanted resonance for optimal acoustic results.

Solid housing construction with Piano Finish
A sturdy MDF plinth, coated in a classy piano finish, ensures detailed and warm sound characteristics.

Comes Plug 'n' Play with Ortofon 2M Red System
Immediate aural pleasure: TURN3 comes equipped with a pre-mounted, high-quality Ortofon 2M Red pick-up system.

Gold-Plated Connections & Flexible Cables
Besides gold-plated connections for the purest sound signal transfer, TURN3 allows for maximum individuality and flexibility, as all cables are detachable.

Integrated Phono Stage
The Reloop TURN3 is equipped with a built-in pre-amp, meaning you can connect directly to an amplifier without phono input. This way a separate pre-amp is not mandatory for a line level input.

Key Features

• Belt-drive Hi-Fi Turntable
• Pre-installed Ortofon 2M Red cartridge
• Specially designed tonearm for optimal tracking performance
• Headshell connection provides added flexibility
• High-quality built-in Phono Stage can be switched on or off (Phono/Line output)
• USB output for recording your vinyl to a PC or Mac
• Semi-Automatic Motor Stop can be switched on or off
• Low-vibration DC motor
• Integrated motor control with large speed selector for conveniently selecting three different speeds (33, 45 and 78 RPM)
• External DC power supply ensures a silent running motor (100-240 V / 12V / 500mA)
• Aluminium platter with rubber damping for optimized resonance control
• Adjustable anti-skating dial for improved cartridge tracking
• Gold-plated, corrosion resistant audio outputs (all cables detachable)
• Purpose-chosen turntable feet for effective decoupling
• Gloss black piano finish
• Master power switch on rear panel
• Supplied with pre-installed Ortofon 2M Red Cartridge, Counter Weight, Dust Cover (incl. hinges), Felt-Mat, Rubberised Aluminium Platter, Aluminium 7” Adapter, RCA & USB cables and international power supply (UK/EU/US)

Technical Specifications

Reloop Turn3
Type of turntable: Belt drive
Motor: DC Motor
Rotation speeds: 33 1/3, 45 & 78
Wow and Flutter: 0.2% WRMS
Analogue Output: Phono / Line switchable
Connections: RCA Audio output (gold-plated), USB type B
Phono Output Level: 4.0 mV (with Ortofon 2M Red)
Line Output Level: 224 mV (with Ortofon 2M Red)
Tone Arm type: Straight
Effective Arm Length: 233 mm
Effective tonearm mass: 24.84g
Overhang: 20 mm
Tracking force Range: 18mN
Platter diameter: 300 mm
Anti-Skating adjustment: Yes
USB Audio Output with 48 kHz / 16-Bit: Yes
OS Supported: Windows & Mac
Type of cartridge: MM (Ortofon 2M Red)
Needle pressure range: 1.8 +/- 0.2g
Headshell weight: 20g
Power consumption: 6W
S/N: >60 dB or higher
Dimensions: 450 (W) x 352 (D) x 138.7 (H) mm (incl. Dust cover)
Weight: 6.8 kg
Record weight: recommended 500g
Ortofon 2M Red
Output voltage at 1000 Hz, 5cm/sec.: 5,5 mV
Channel balance at 1 kHz: 1,5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 μMm
Compliance, dynamic, lateral: 20 μMm
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 μMm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1,3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Red
Cartridge weight: 7.2 g
