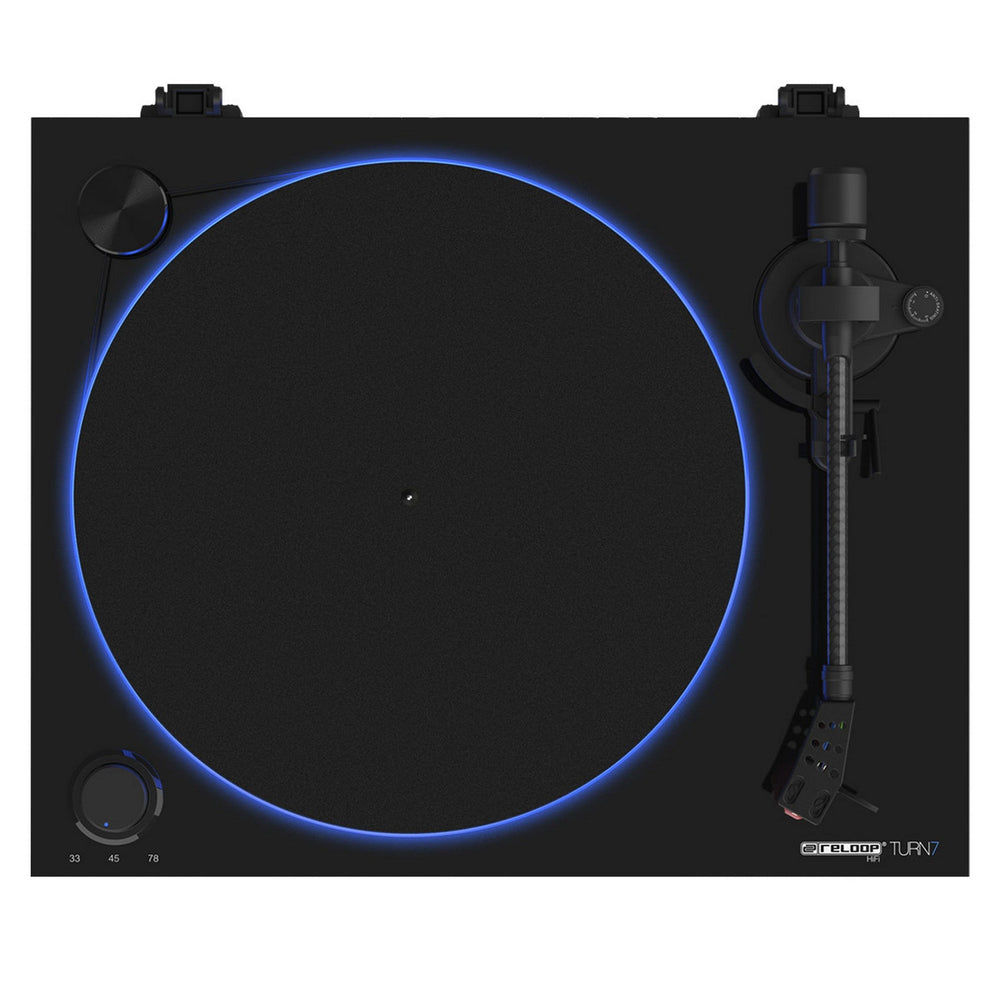

Reloop TURN 7 Direct-Drive Turntable

The Reloop TURN 7 is a high-performance direct-drive turntable designed for both professional DJs and audiophiles who demand top-notch audio quality. Featuring a robust and durable design, this turntable ensures precise playback and minimal vibration, making it ideal for both studio use and live performances. With its advanced features, the TURN 7 offers superior torque, adjustable pitch control, and a range of connectivity options, setting a new standard in the world of turntables.

Equipped with a powerful direct-drive motor, the Reloop TURN 7 delivers consistent and accurate rotation, crucial for maintaining the integrity of your vinyl records. The turntable’s heavy-duty build helps to minimize unwanted vibrations, while the high-torque motor provides smooth and reliable performance. The TURN 7 also includes a high-quality S-shaped tonearm that ensures precise tracking and minimizes distortion, further enhancing the overall sound experience.

The TURN 7 features a range of modern amenities including an adjustable pitch control and a built-in phono preamp, allowing for versatile connectivity and customization. Whether you’re spinning records in the studio or performing live, the TURN 7’s comprehensive feature set ensures you have everything you need to achieve exceptional sound quality and performance.

Key Features

• Direct-drive motor with high torque for smooth and precise playback
• Adjustable pitch control for perfect pitch accuracy
• Heavy-duty construction to reduce vibrations and enhance durability
• High-quality S-shaped tonearm for accurate tracking
• Built-in phono preamp for versatile connectivity options

Technical Specifications

Type of Turntable
Belt-Driven manual Turntable System with USB Interface
Drive
Belt drive
Motor
DC Motor
Rotation Speeds
33 1/3, 45 RPM
Starting Torque

Start-up Time / RPM Change

Wow and Flutter
0.2% WRMS
S/N Ratio
>45dB or higher
Breaking System
Manually

Turntable Platter
Acrylic glass
Diameter: 300 mm
Weight: About 1.7 kg

Tonearm Section
Type: Straight Tonearm
Effective Length: 223.6 mm
Effective Tonearm Mass: 18.5g
Overhang: 18.61 mm
Tracking Error Angle: ±1.5°
VTA Adjustment Range: - 2 ~ 4 mm
Applicable Cartridge Weight: 7.2 ~ 11.2 g (incl. Headshell)
Anti-Skating Range: 0 - 4 g

Cartridge
Ortofon 2M Red
Output Voltage at 1000 Hz, 5 cm/sec.: 5.5 mV
Channel Balance at 1 kHz: 1.5 dB
Channel Separation at 1 kHz: 22 dB
Channel Separation at 15 kHz: 15 dB
Frequency Response: 20-20,000 Hz + 3 / - 1 dB
Tracking Ability at 315Hz at Recommended Tracking Force: 70 µm
Compliance, Dynamic, Lateral: 20 µm/mN
Stylus Type: Elliptical
Stylus Tip Radius: r/R 8/18 µm
Tracking Force Range: 1.6 - 2.0 g (16-20 mN)
Tracking Force, Recommended: 1.8 g (18 mN)
Tracking Angle: 24.7°
Internal Impedance, DC Resistance: 1.3 kOhm
Internal Inductance: 700 mH
Recommended Load Resistance: 47 kOhm
Recommended Load Capacitance: 150-300 pF
Cartridge Colour, Body/Stylus: Black/Red
Cartridge Weight: 7.2 g

General
Terminals: 1x PHONO/LINE Out, Built-in Phono Stage (Pre Amp)
Power Supply: 12 V 1A DC
Power Consumption: 12W
Dimensions: 420 (W) x 356 (D) x 148 (H) mm
Weight: 8.2 kg
