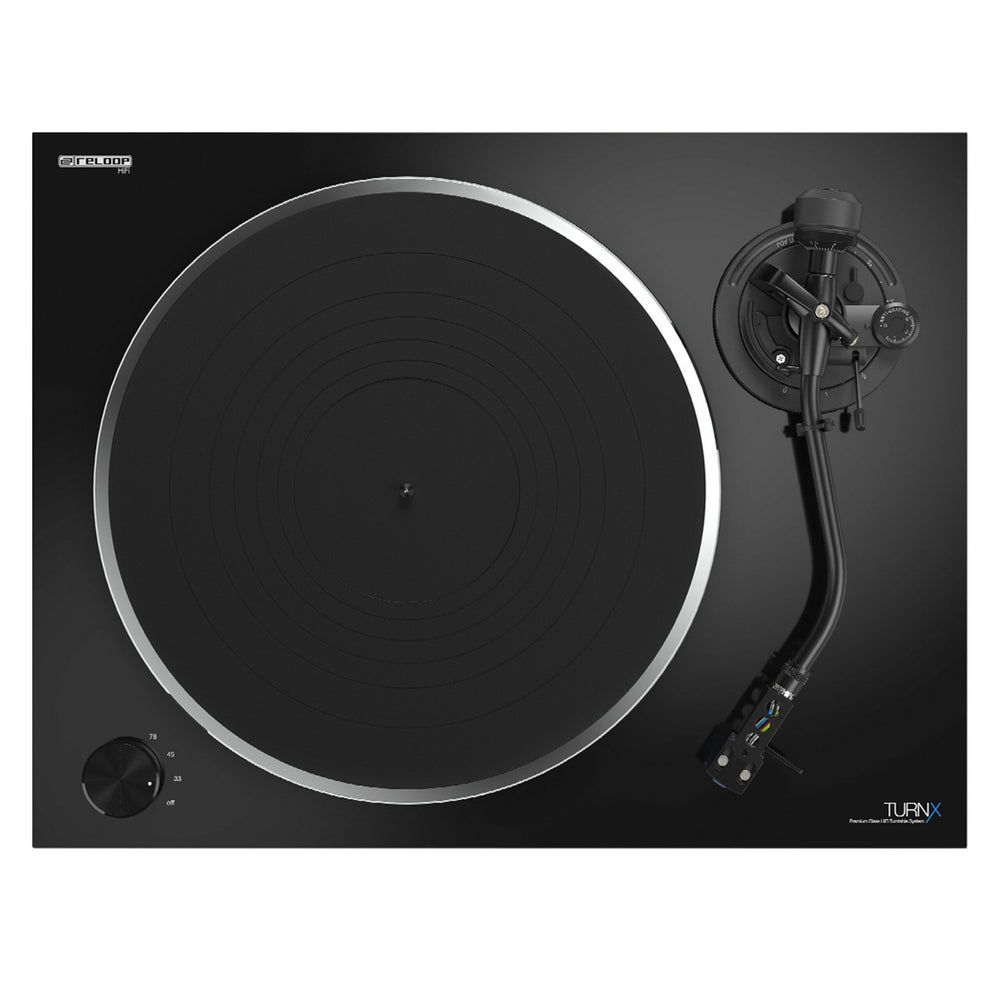

Reloop Turn X Premium Class HiFi Turntable System
Premium Class HiFi Turntable System
Reloop's Turn X is a quartz-driven, high-end turntable that impresses in more ways than just its sound and premium aesthetics.
Designed with precision from the outset
The Turn X's direct-drive DC motor offers incredibly accurate and consistent speeds. The high torque ensures lightning-fast start-up times and minimal variances of just +/-0.03%. The Turn X excels when operated in full manual mode, where its electronic brake and rotary switch for smooth starting and stopping, which also doubles as a speed selector (33, 45 and 78 RPM), shine.
Audiophile tonearm
The statically balanced S-shaped tonearm can be adjusted in height to change the cartridge's azimuth (the angle at which the needle approaches the record) and the record's vertical tracking angle (VTA). The tonearm design guarantees free and fluid movement and optimum cartridge performance.
Balance perfection
A solid aluminum block supports the record player's precision-machined die-cast platter. Its hefty 2.1 kg, 332 mm diameter and 22.5 mm thickness ensure smooth, even movement. The damping rubber coating on the back of the turntable and the rubber mat provide excellent isolation properties and minimize vibrations.
Crystal clear sound quality
The Turn X has a high-quality Ortofon 2M Blue cartridge pre-installed, ensuring excellent dynamics and sound resolution to satisfy even the most discerning audiophiles. Another highlight: The universal SME connector enables a quick and easy cartridge system change if required.
Sound and nothing but sound
The turntable's solid MDF chassis is exceptionally sturdy and robust, keeping unwanted resonances at bay from the outset. As a bonus, the Turn X is effectively decoupled thanks to the height-adjustable isolator feet.
Design without compromise
In addition to meeting the exacting demands of vinyl enthusiasts, the Reloop Turn X is a true visual showpiece. The record player's sleek design, sophisticated one-button control, and classy piano lacquer finish make it a real eye-catcher.
Attention to detail
Last but not least, the Turn X features a gold-plated high-resolution phono output and a gold-plated ground connector for optimum signal transfer and corrosion resistance. Interference is reduced even further by the power switch's ultra-low noise insulation.
Key Features
- Quartz-controlled, premium HiFi turntable
- Super high torque, direct drive DC motor with ultra-precise rotation speed
- Quick start-up and drift-off rotation speed less than +/-0.03%
- Full manual operation with motor control-switch to select three different speeds (33, 45 and 78 RPM)
- Precision machined, extra heavy aluminum die-cast platter for a perfectly balanced rotation (305 mm diameter, 22.5 mm thick, 2.1 kg)
- Deadening rubber covering rear platter surface & special 5 mm rubber mat for optimized resonance control and damping
- Sunk-in platter cavity construction
- Static-balanced S-shaped tonearm with VTA adjustment
- Adjustable anti-skating wheel for optimal pick-up tracking
- Pre-installed Ortofon 2M Blue cartridge for excellent dynamics and sound resolution
- Universal headshell connector (SME) provides added flexibility
- Counterweight supplied supports a wide variety of cartridges
- Premium, high-resolution audio phono outputs (with separate grounding connection)
- Gold-plated, corrosion-resistant audio connections (detachable power and RCA cables)
- Built-in switching power with ultra-low noise isolation design
- Rigid construction, with extra-heavy, solid MDF wooden plinth
- Height-adjustable, shock-resistant insulator feet for effective decoupling
- Timeless design with high-gloss, black piano finish
- Accessories included: Turntable platter, dust cover, 2x dust cover hinges, balance counterweight, PHONO RCA cable with grounding cable, AC power cord, rubber mat, instruction manual, Ortofon 2M Blue cartridge & headshell
Technical Specifications
Turntable Section
Type of turntable
Direct drive, fully manual
Drive
Quartz driven upper-torque direct drive with precision rotation
Motor
DC Motor, 16-Pole, 3-Phase, brushless
Rotation speeds
33 1/3, 45 & 78 RPM
Starting Torque
More than 4500 g/cm
Start-up time / rpm change
Less than 0.3 sec.
Wow and Flutter
Less than 0.1% WRMS (JIS WTD)
S/N Ratio
More than 60dB (DIN-B)
Breaking System
Electronic brake
Turntable Platter
Turntable Platter
Aluminum die-cast
305 mm diameter
Weight About 2.1 kg
Tonearm Section
Type
Static balanced S-Shape
Effective Length
230 mm
Overhang
15 mm
Tracking Error Angle
Less than 3 degrees
VTA Adjustment Range
0-6 mm
Applicable Cartridge Weight
17 - 25 g (incl. Headshell)
Anti-Skating Range
0-3 g
Terminals
1x PHONO Out (gold-plated), 1x GND Earth Terminal
Cartridge
Type of cartridge
Ortofon 2M Blue
Output voltage at 1000 Hz, 5cm/sec.
5.5 mV
Channel balance at 1 kHz
1.5 dB
Channel separation at 1 kHz
25 dB
Channel separation at 15 kHz
15 dB
Frequency response
20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force
80 Āµm
Compliance, dynamic, lateral
20 Āµm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 Āµm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20 Degrees
Internal impedance, DC resistance
1.3 kOhm
Internal inductance
700 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
150-300 pF
Cartridge color, body/stylus
Black/Blue
Cartridge weight
7.2 g
General
Power Supply
AC IN 100~240V, 50/60 HZ
Power consumption
3W
Dimensions
460(W) x 367.3(D) x 172.6(H) mm
Weight
10.35 kg
Included Accessories
dust cover + 2x hinge, rubber mat, power supply cable, RCA cable with grounding connection (gold-plated), Headshell with Ortofon 2M Blue (pre-installed), turntable platter, operation manual & counterweight
