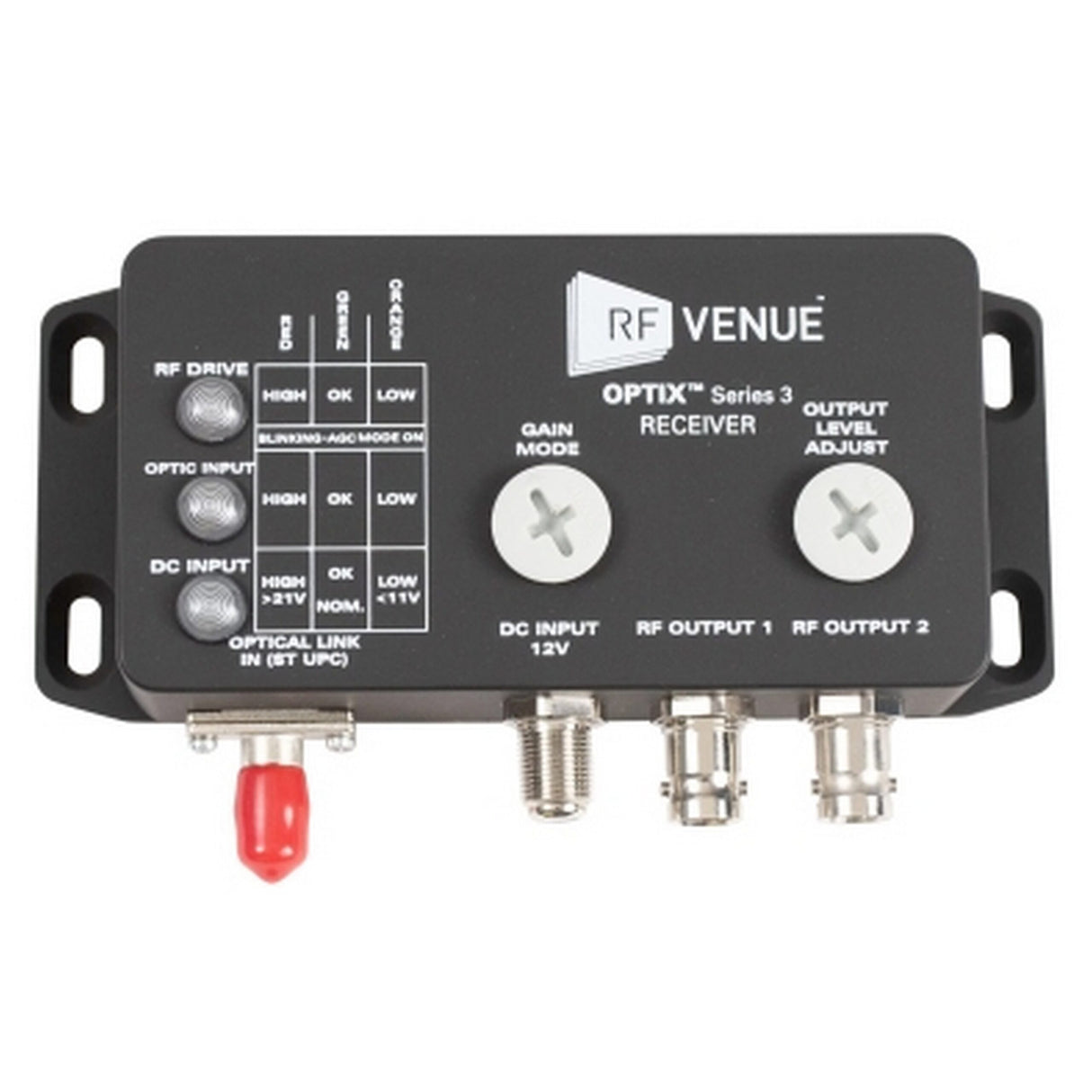

RF Venue OPTIX2-S3-US OPTIX Series 3 RF-Over-Fiber Dual Channel Remote Antenna Distribution System
OPTIX Series 3 is a high-performance , RF to fiber optic (RFoF) conversion system designed to facilitate the remote placement of wireless audio antennas. The OPTIX Transmitter module converts RF signals arriving from an antenna source into a single-mode optical signal, sending that signal down a length of fiber-optic cable to the OPTIX Receiver module which converts the source signal back into RF. Without any signal loss over the optical cable, the OPTIX system can extend the range of antenna placement up to several kilometers, eliminating the need for bulky and lossy coaxial cable runs. Well-suited for live production as well as installed sound, OPTIX Series 3 features extensive user configurable controls to manage signal level, apply DC power for active antennas or amplifiers, and even directly monitor outputs to dial in performance. OPTIX Series 3 is compatible across VHF, UHF, and the 900 MHz band, and across any brand wireless audio system.
Available in single-channel (OPTIX1-S3-US) and dual-channel (OPTIX2-S3-US) systems.
Key Features
- RF to fiber optic conversion system designed to facilitate the remote placement of wireless audio antennas
- Extends the range of antenna placement up to several kilometers, eliminating the need for bulky and lossy coaxial cable runs
- Well-suited for live production and installed sound
- Features user configurable controls to manage signal level, apply DC power for active antennas or amplifiers, and directly monitor outputs
- Compatible across VHF, UHF, and the 900 MHz band, and across any brand wireless audio system
- Available in single-channel (OPTIX1-S3-US) and dual-channel (OPTIX2-S3-US) systems
Technical Specifications
Usable dynamic range
60 dB
Input noise floor
-100 dBm
Max usable signal
-25 dBm (do not exceed or clipping will occur)
Typical operating frequency
175-213, 470-698, 900-960 MHz
VSWR avg.
< 2.5:1
Impedance (nom)
50 OHM
Max RF input power
< 0 dBm / 1 mW
DC operating voltage
5-22 V
Power supply voltage
12.25 VDC
Tx Module Power Draw
~166 mA @ 12VDC
Rx Module Power Draw
~258 mA @ 12VDC
Optical Tx wavelength
1310 nm
Dimensions (Tx and Rx)
138 mm (5.43") W X 77 mm (3.03") H X 33 mm (1.30") D (including flange and connectors)
Weight
Tx 223 g (7.9 oz)
Rx 229 g (8.1 oz)
Operating temperature
-25 C to 75 C (-13 F to 167 F)
RF Connectors
BNC female
Optical connectors
ST/UPC
