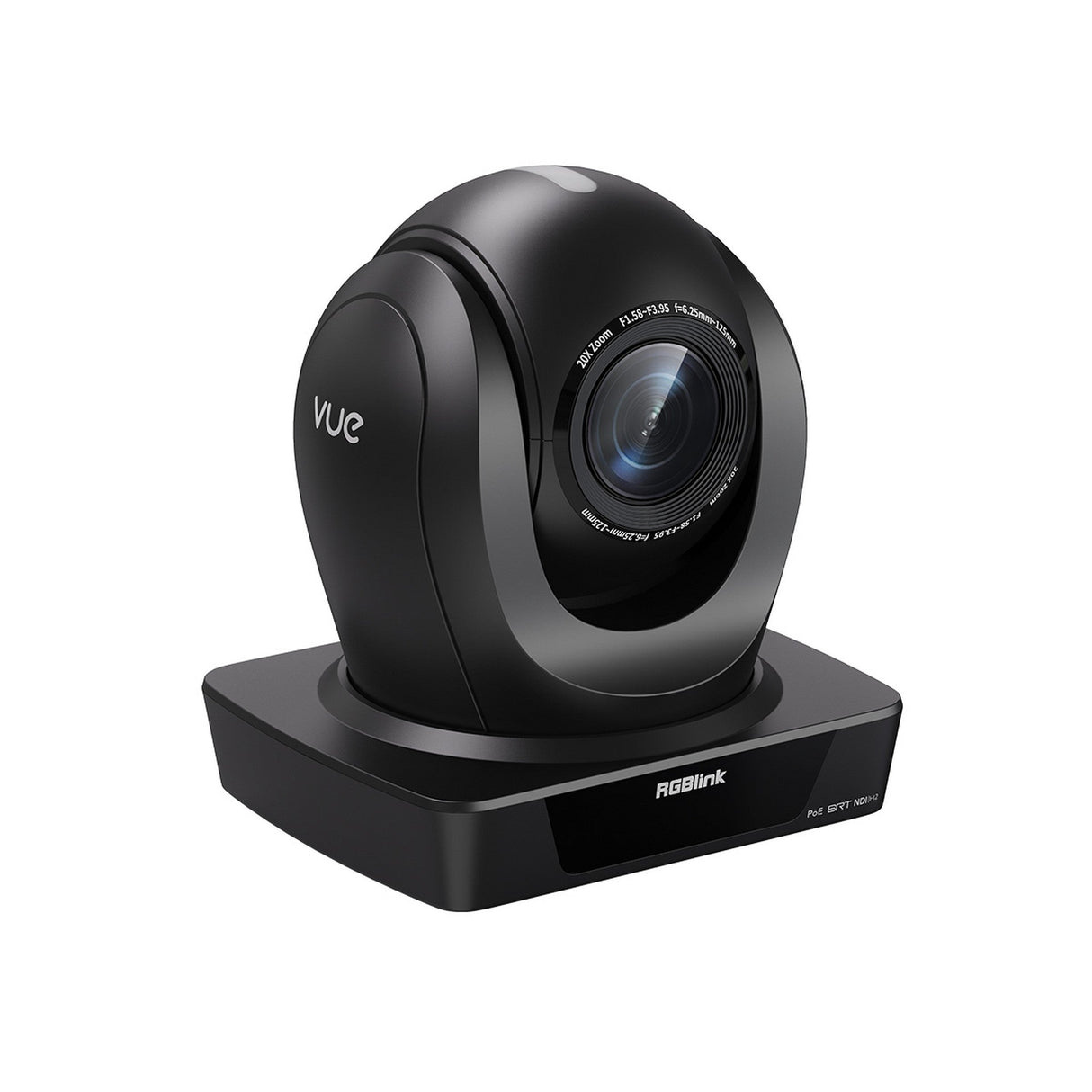

RGBlink 4K Vue PTZ Camera with Ultra-Wide Dynamic Range - 12x / No

Unleash exceptional image quality and unparalleled versatility in your professional productions with the RGBlink 4K Vue PTZ Camera with Ultra-Wide Dynamic Range. This camera is meticulously engineered to deliver stunning visuals, boasting resolutions up to 3840x260 at 60fps. The secret behind this brilliance lies in the advanced ISP image processor working in tandem with a high-resolution 8.51-megapixel sensor. Remarkably, the 1600TVL resolution lens captures every detail with exceptional clarity, while the wide dynamic range ensures vibrant colors and flawless performance even in low-light environments.

Effortlessly frame your shots and deliver dynamic close-ups with the 4K Vue PTZ camera's 12X/20X optical zoom. The camera's pan and tilt functionality provide a massive range of motion, covering a maximum pitch angle of -30° to +210° for comprehensive panoramic coverage.

Integrating the 4K Vue PTZ camera into your existing workflow is a breeze. The camera features a multitude of connectivity options, including HDMI, 12G-SDI, and USB Type-C outputs, ensuring compatibility with various production setups. Additionally, it supports H.265/H.264 dual-stream encoding for optimized network transmission.

The 4K Vue PTZ camera caters to a wide range of professional broadcasting scenarios. It's the perfect solution for radio and television stages, corporate live events, interviews, conferences, weddings, educational institutions, e-sports productions, houses of worship, and more.

The 4K Vue PTZ camera offers a plethora of additional features to enhance your productions. Experience effortless subject focus during live productions with Stable AI Tracking. A unique 360° TALLY Indicator ensures clear camera identification at all times. Built-in dual microphones capture high-quality audio, while the optional NDI|HX2 Output provides enhanced network integration. PoE+ support simplifies power and network connectivity, and a low-power sleep function promotes energy efficiency.

Elevate your productions to new heights with the exceptional image quality, versatility, and control of the RGBlink 4K Vue PTZ camera!

Key Features

• AI Tracking with Stable Performance

• High Resolution of 3840x2160@60

• Excellent Low Light Performance with Wide Dynamic Range

• Dual Stream Output in H.265/H.264 for Different Network Environments

• Multiple Output Options: 12G-SDI, HDMI2.0, USB Type-C

• Pan and Tilt Control Capability

• Dual Built-in Microphones

• Optional NDI|HX2 Output

• TALLY Support

• PoE+ Support

• Low-power Sleep Function for Energy Efficiency

Technical Specifications

Connections
Video Output
SDI
1xBNC
HDMI
1xHDMI2.0
USB
1xUSB Type-C
NDI
1xRJ45
LAN(PoE+)
1xR.J45
Audio (IN)
1x3.5mm TRS Stereo Jack
Built in Dual Microphones
Communication
RS 232 In/Out
1×DIN 8
R5485
1×3Pin Phoenix Connector
LAN
1×1000M LAN Port
Power
1XJEITA type (DC IN 12V)

Performance
Camera
Optical Zoom
12x
-or-
20x
Focal Length
12x: f=3.47mm-41.65mm
20x: f= 625mm - 125mm
Aperture
F1.84-F3.72
F1.58 - F3.95
Horizontal View Angle
80.8 - 7.5°
60 - 3.5°
Vertical View Angle
49.90 - 4.3°
35.7 - 2.0°
CMOS Sensor
1/2.5 inch
1/1.8 inch
Effective Pixels
8.51m
8.42m
Optical Zoom
16x
Minimum Illumination
0.5 Lux (@F1.8, AGC ON)
DNR
30 DNR
White Balance
Auto / Manual/ One Push/ Indoors/ Outdoors/VAR
Focus/Ira/Shutter
Auto / Manual
BLC
ON/OFF
Dynamic Range
OFF/ Dynamic level adjustment
Video Adjustment
Brightness/Hue/Saturation/Contrast/Sharpness/
B/W mode/Gamma Curve
Image Flip
Auto / Manual
Image Freeze
Supported
SNR
≥55dB
Lens Resolution
1600TVL+ (Central Area)

Pan-and Tilt Parameter
Pan/Tilt Movement
-170° ~+170°/-30° ~+210°
Pan/Tilt Control Speed
1.8 - 100°/s; 1.5 ~ 60°/s
Preset Speed/Quantity
Pan: 100°/s/max), Tilt:60*/s (max:
Up to 255 preset positions
(10 remote control)
360^ TALLY
Full 360° view of TALLY
TALLY Signboard (No. 1~255)

Output Resolutions
HDMI & SDI
3840*2160p60/59.94/50/30/29.97/2
5 | 1080p60/59.94/50/30/29.97/25 |
1080i60/59.94/50 | 720p60/59.94/50
Network (H.265 / H.264 / MJPEG)
3840x2160, 1920x1080, 1280x720
etc. (First Stream: 2kbps~51200kbps
Second Stream: 32kbps~20480kbps)

Audio Compression Format
AAC | G.711A

Video Compression Format
H.264 | H.265 | Dual Streaming Output

USB Protocol
UVC 1.5 (UVC 1.1 backward compatible)

NDI Protocol
NDI|HX2

Control Protocol
VISCA | Pelco-D | Pelco-P | ONVIF

FreeD Protocal
Support (Network)

Network Protocol
RTSP | RTMP | ONVIF |NDI | VISCA | FreeD

Baud Rate(bps)
115200 | 9600 | 4800 | 2400bps

Synchronous Output
12G SDI + HDMI2.0 UVC 1.5+ NDI+ Dual RTSP + FreeD

Supported Standards
SDI ST2082-1 | SMPTE 425M (Level A & B) | SMPTE 424M ||
SMPTE 292M | SMPTE 259M-C | DVB-ASI

Power
Input Voltage
DC 12V/1.5A
Max Power
18W

Environment
Temperature
0°C - 40°C
Humidity
20% ~ 80%
