RGBlink mini-EFP Portable Video Production Switcher Kit with Mini-Edge - mini-edge-st

The RGBlink mini-EFP Portable Video Production Switcher Kit with Mini-Edge is designed to excel in professional live production environments. It boasts a customizable input and output capacity, along with a wide range of signal compatibility to address various on-site signal bridging challenges.

The mini-EFP offers flexibility with its ability to handle HDMI, UVC, SDI, Ethernet, and Fiber signals. This allows for transmission distances ranging from a few meters to over 1000 meters, making it adaptable to diverse production setups. The system's cloud connectivity through the TAO platform streamlines content production sharing and fosters remote collaboration with professional teams, ensuring projects can leverage expertise regardless of location.

Seamless switching and preset creation are also hallmarks of the mini-EFP. It features 17 transition effects and multi-layer preview for smooth program output with multi-layer integration. Operators can design presets with various layer settings on the preview and then recall them with polished transitions to the program output.

For comprehensive control, the mini-EFP integrates picture-in-picture canvas control, pivot map control, cropping parameter adjustments, signal source selection, PTZ camera preset management, and more. It can control up to 4 cameras simultaneously using the standard VISCA protocol, allowing for real-time adjustments like scaling and viewing angle control.

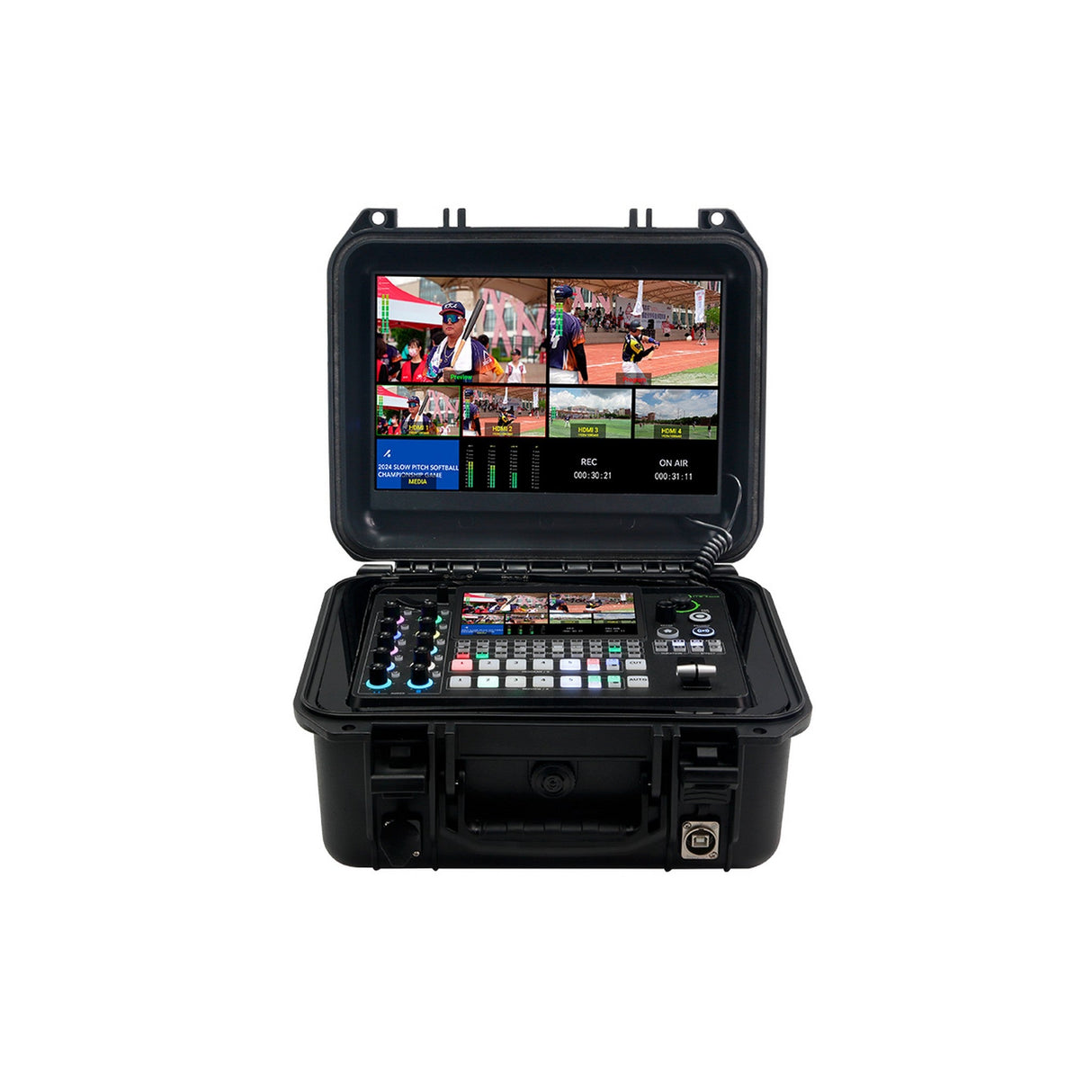

Pre-monitoring is another strength of the mini-EFP. A built-in 5.5-inch LCD display on the mixer and a 13.3-inch IPS high-brightness monitoring screen ensure clear viewing of all audio and video inputs, even in bright sunlight.

The mini-EFP is built to last. Its professional construction includes a high-quality aviation plug interface for reliable performance, a robust PE case for shockproof and dustproof protection, and an integrated active cooling fan to efficiently manage heat dissipation.

The portable design of the mini-EFP makes it ideal for field productions. Its compact size and lightweight construction allow for easy transport and use in various locations.

By combining an efficient live production workflow, remote collaboration capabilities, high-quality output, and a wide range of applications, the RGBlink mini-EFP Portable Video Production Switcher Kit with Mini-Edge establishes itself as a powerful and versatile solution for live production professionals. From live event production companies and broadcast studios to content creators, educational institutions, and corporate event organizers, the mini-EFP caters to the needs of a diverse clientele.

Key Features

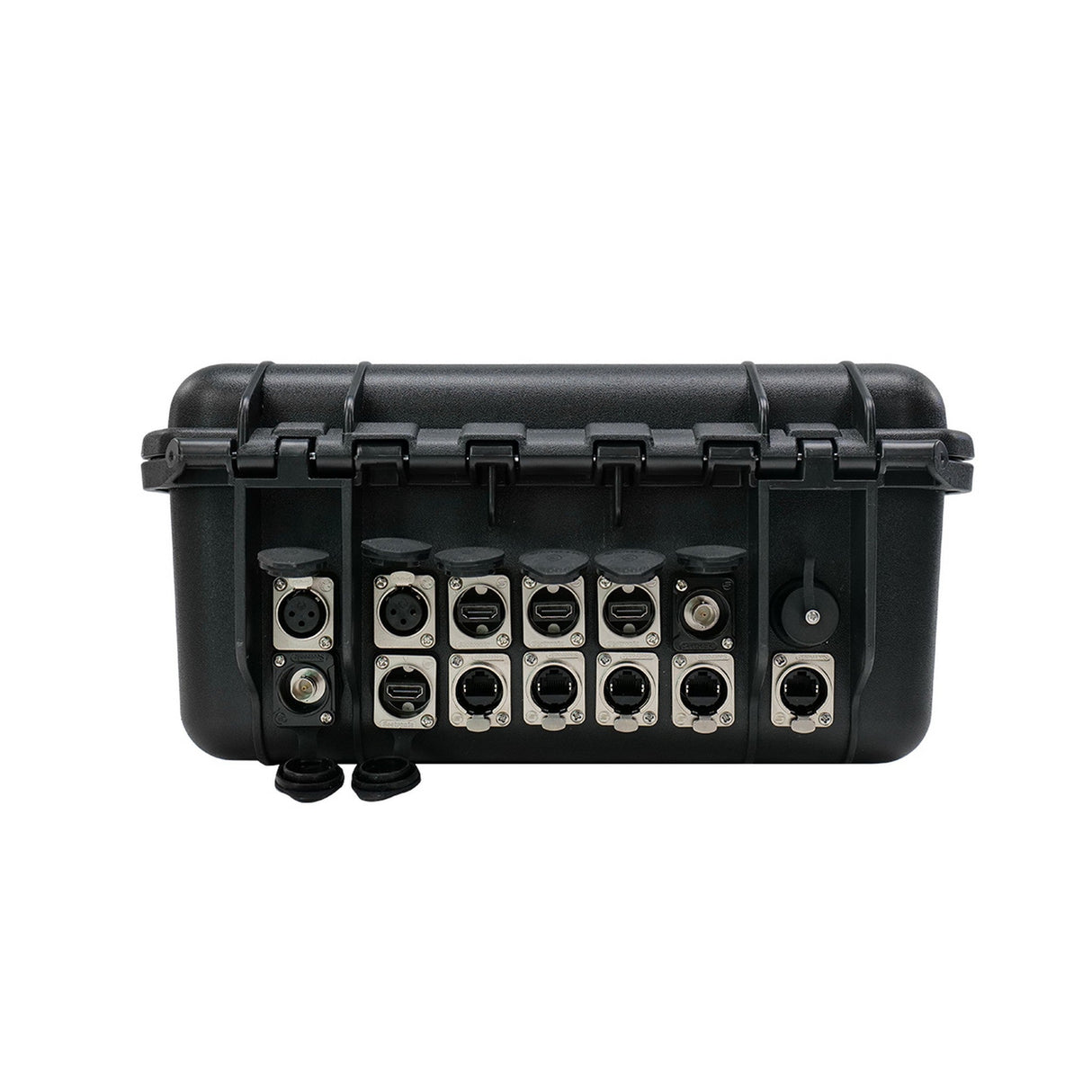

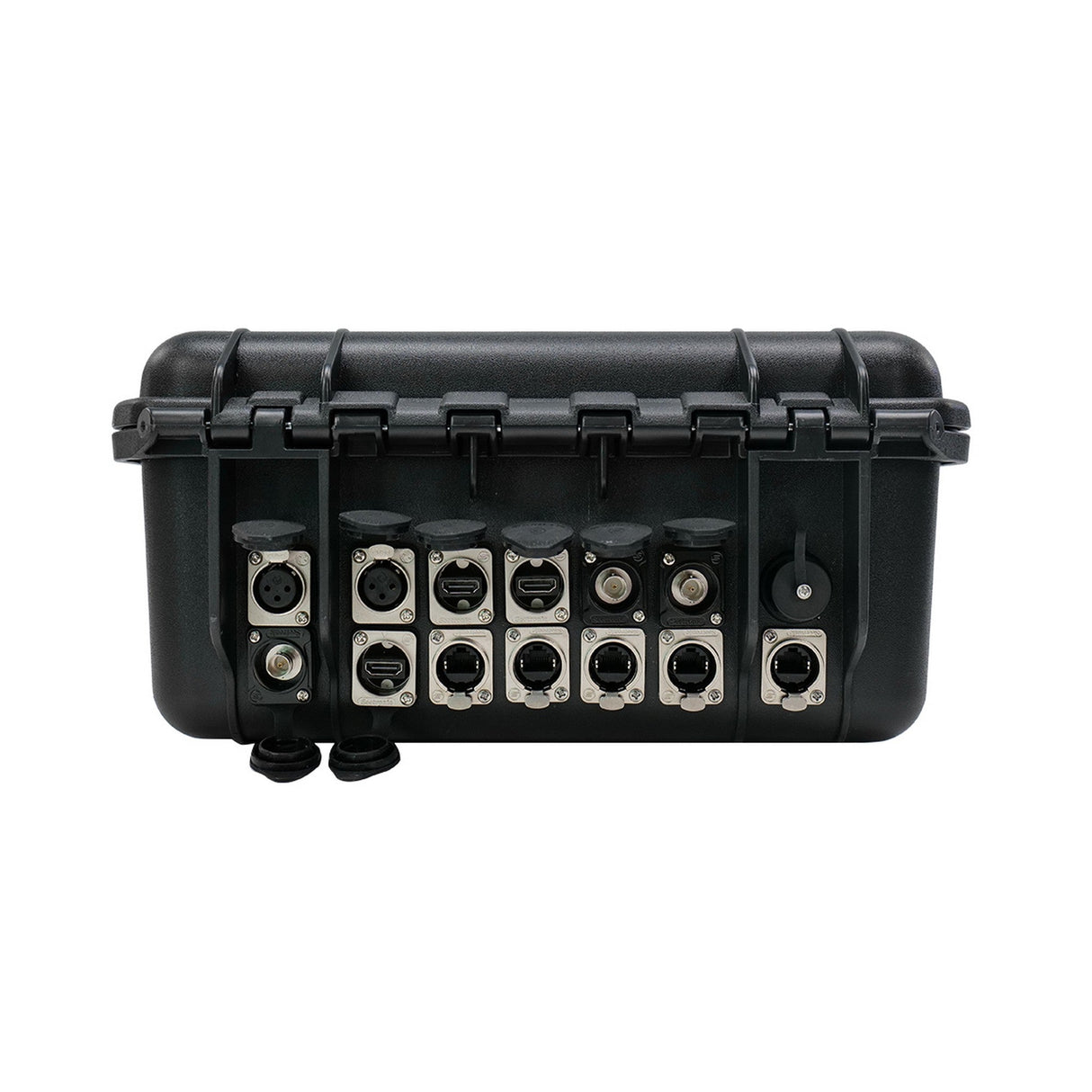

• Professional aviation connector for optimal performance

• Adaptable standard connectors for customized applications

• 13.3" HD IPS monitor integrated into the system

• Durable high strength PP flightcase for long-lasting use

• Hydraulic rod support for enhanced stability during operation

• Powerful air-cooling system specifically designed for outdoor environments

• 5.5 inch LCD screen built-in for mini-edgeOne USB (UVC) input

• Dual audio out jacks for audio monitoring

• Eight audio inputs including HDMI 2.0 embedded audio inputs and external audio inputs

• Dual HDMI 1.3 outputs for multi-window monitoringPVW, PGM or AUX

Technical Specifications

Connectors
Input
HDMI 4K (HDMI-A)
mix-mx-st: 4 Inputs
mini-mx-1s: 3 Inputs
mini-mx-2s: 2 Inputs
SDI (BNC) In
mix-mx-st: 0 Inputs
mini-mx-1s: 1 Inputs
mini-mx-2s: 2 Inputs
Output
HDMI 2K 2×HDMI-A
USB (Record) 1×USB-C
USB (Stream) 1×USB-C
SDI (BNC) Out
mix-mx-st: 0 Outputs
mini-mx-1s: 1 Outputs
mini-mx-2s: 1 Outputs
Audio In
MIC
1×CANNON
Jack (XLR) LINE
1×6.35mmTRS Jack
Bluetooth
1×Bluetooth
Module UAC 1×USB-C HDMI
SDI 1×BNC
Audio Out
AUDIO
1×6.35mmTRS Jack
1×3.5mmmini-Jack
HDMI
1×HDMI-A SDI
1×BNC UVC
1×USB-C
LAN 1×RJ45 USB (record)
1×USB-C
Performance
Input Resolution
HDMI
1280×720@50/59.94/60 | 1024×768@60| 1280×768@60|1280×800@60|1280×1024@60|1360×768@60|1366×768@60 | 1440×900@60 | 1600×1200@60|1680×1050@60|1920×1200@60|1920×1080i@50/59.94/60|1920×1080p@23.98/24/25/29.97/30/50/59.94/60|3840×2160p@30/50/60|4096x2160@30/50/60
Output Resolution
HDMI
1280×720@50/60 | 1920×1080@60| 3840×1080@30
USB (Webcam) 1920×1080@24/25/30/50/60
Video
Video Formats
HDMI 2.0 | HDCP 2.2
Grayscale Processing
10bit
Video Sampling
4:4:4 YUV
Video Latency
<4 frames

Audio
Line In Delay
up to 8 frames
Audio Format
HDMI Linear PCM, 24bits/48kHz, 2ch
USB Linear PCM, 16bits/48kHz, 2ch

Record/Storage
Record Formats
MP4
Disk Formats
FAT32(≤32 GB) | exFAT(64GB~2T)
Supported Standards
HDMI 2.0
USB 3.0
H.265 ITU-T H.265/ ISO/IEC 23008-2

13.3'' Display
Screen Size
13.3"
Panel Type
IPS
Display Color
16.7M, 72%NTSC/:16.7M, 100%sRGB
Resolution
1920×1080 pixels
Aspect Ratio
1000:1
Gamut
72%
Brightness
350 cd/m2
Refresh Rate
60Hz
View Angle
85°/85°(L/R) 85°/85°(U/D)

Power
Input Voltage
PD 12V/5A
Maximum Power
60W

Physical
Outer Size
460mm× 360 mm× 200mm
Material
PP
Color
Black
Packaged Weight
9.23 kg
Packaged Dimension
470mm× 370mm× 210mm
