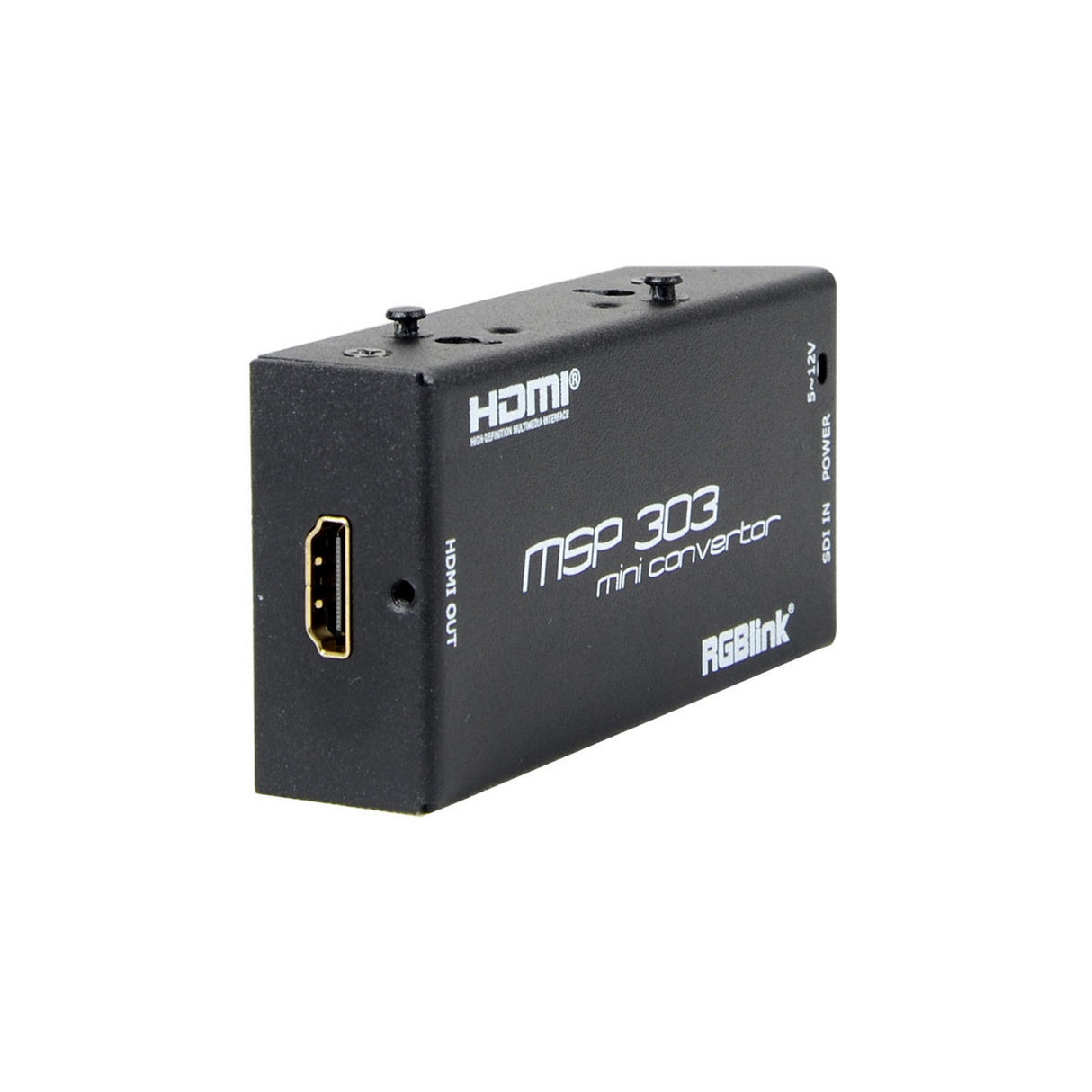

RGBlink MSP 303 SDI to HDMI Mini Converter

The RGBlink MSP 303 SDI to HDMI Mini Converter is designed for professional AV applications. This powerful converter bridges the gap between SDI and HDMI signals, ensuring smooth video transmission.

The MSP 303 boasts a miniature form factor for discreet placement and space-saving integration into your setup. It supports all SMPTE compliant SDI signals, including 3G-SDI, HD-SDI, and SD-SDI, for maximum versatility. The converter also handles a wide range of video resolutions, from standard definition (480i & 576i) to high definition (720p & 1080i/p) at various frame rates. This caters to diverse video needs and ensures compatibility with most equipment.

An additional benefit of the MSP 303 is its embedded audio support. This feature effortlessly transmits embedded audio alongside the video signal, streamlining your workflow by eliminating the need for separate audio cables. For increased installation flexibility, the converter can be mounted on a rack using optional mounting ears (sold separately).

The RGBlink MSP 303 is the perfect solution for professionals seeking a reliable and compact SDI to HDMI conversion tool. It is ideal for broadcasters, video editors, and AV integrators who need to seamlessly integrate SDI devices into HDMI workflows.

Key Features

• Compact size

• Supports all SMPTE signals

• Input for 3G/HD/SD SDI with embedded audio

Technical Specifications

Connectors
Input
SDI 1×BNC
Output
HDMI
1×HDMI-A

Performance
Input Resolution
SDI SMPTE
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
Output Resolution
HDMI SMPTE
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
VESA
720×480@60 I 720×576@60 I 1280×720@60 I
1920×1080@23.98/24/25/29.97/30/50/59.94/60
Supported Standard
SDI
SMPTE 425M (Level A&B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
HDMI
1.3

Power
Input Voltage
5-12V DC

Physical
Weight
0.15kg
Dimension
98mm×47mm×24mm
