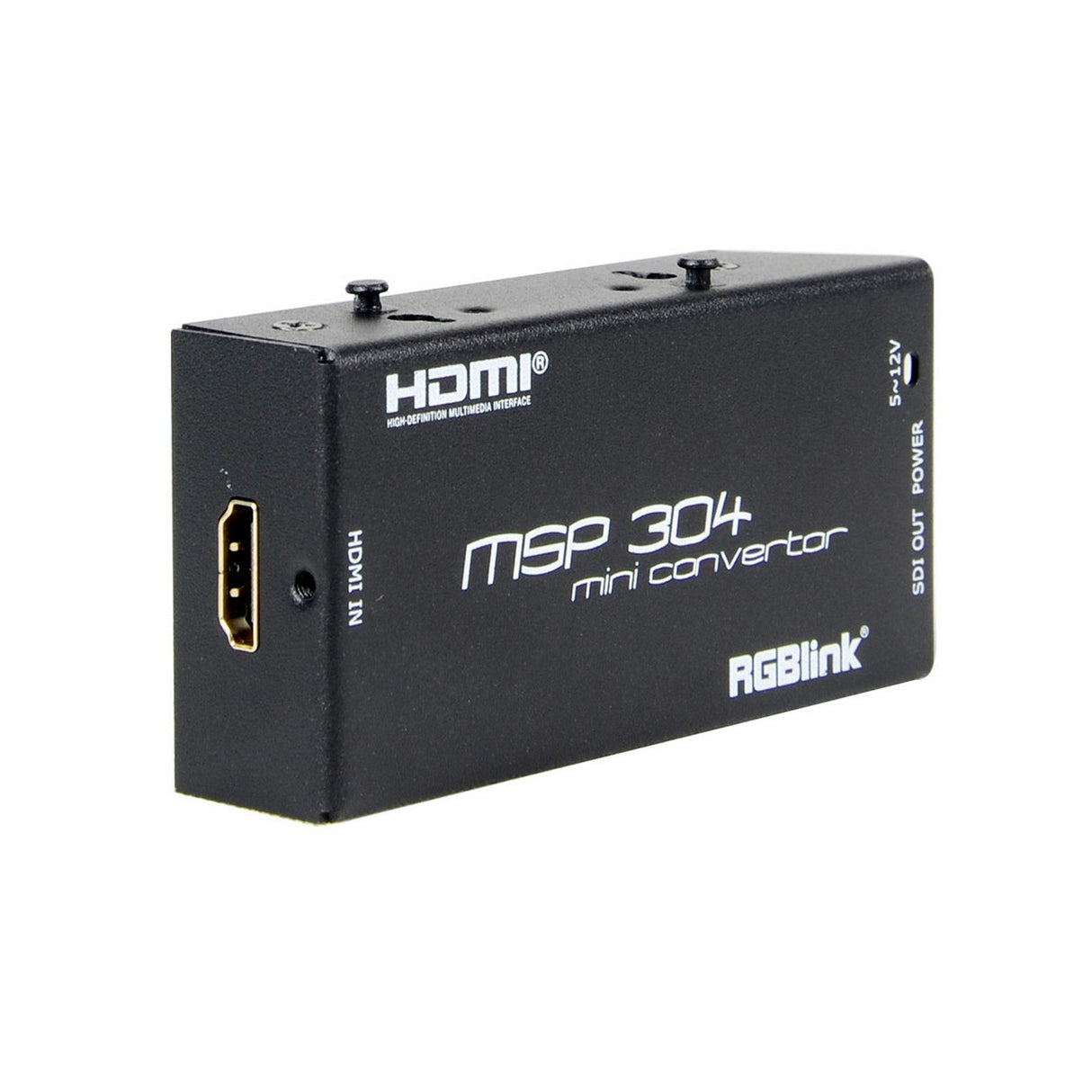

RGBlink MSP 304 HDMI to SDI Mini Converter
RGBlink MSP 304 HDMI to SDI Mini Converter
The RGBlink MSP 304 HDMI to SDI Mini Converter effortlessly converts HDMI to SDI, allowing seamless transmission of high-definition video and embedded audio between HDMI and SDI equipment. Supporting a wide range of resolutions from 720x480 up to 1920x1080 at frame rates between 23.98 and 60Hz, the MSP 304 ensures compatibility with various video formats. Its versatility extends to outputting 3G-SDI, HD-SDI, and SD-SDI signals. Additionally, the MSP 304 supports HDCP for secure content transmission (optional feature).
Despite its compact size, the MSP 304 delivers maximum performance, making it ideal for mobile productions and situations with limited space. An optional pair of mounting ears allows for rack installation, enhancing its flexibility in professional environments.
Upgrade your workflow with the reliable and versatile RGBlink MSP 304 HDMI to SDI Mini Converter!
Key Features
- Compact size
- HDMI input with 1080p resolution
- Audio integrated within the system
- Compatible with all SMPTE signals
- Outputs in 3G/HD/SD SDI format and supports HDCP
Technical Specifications
Connectors
Input
1×HDMI
Output
1×SDI
Performance
Input Resolution
HDMI
SMPTE
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
VESA
720×480@60 I 720×576@60 I 1280×720@60 I
1920×1080@23.98/24/25/29.97/30/50/59.94/60
Output Resolution
SDI
SMPTE
480i@60 I 576i I 720P@50/59.94/60 I 1080i@50/59.94/60 I
1080P@23.98/24/25/29.97/30/50/59.94/60
Supported Standard
HDMI
1.3
SDI
SD/HD/3G
Power
Input Voltage
5-12V DC
Physical
Weight
0.15kg
Dimension
98mm×47mm×24mm
