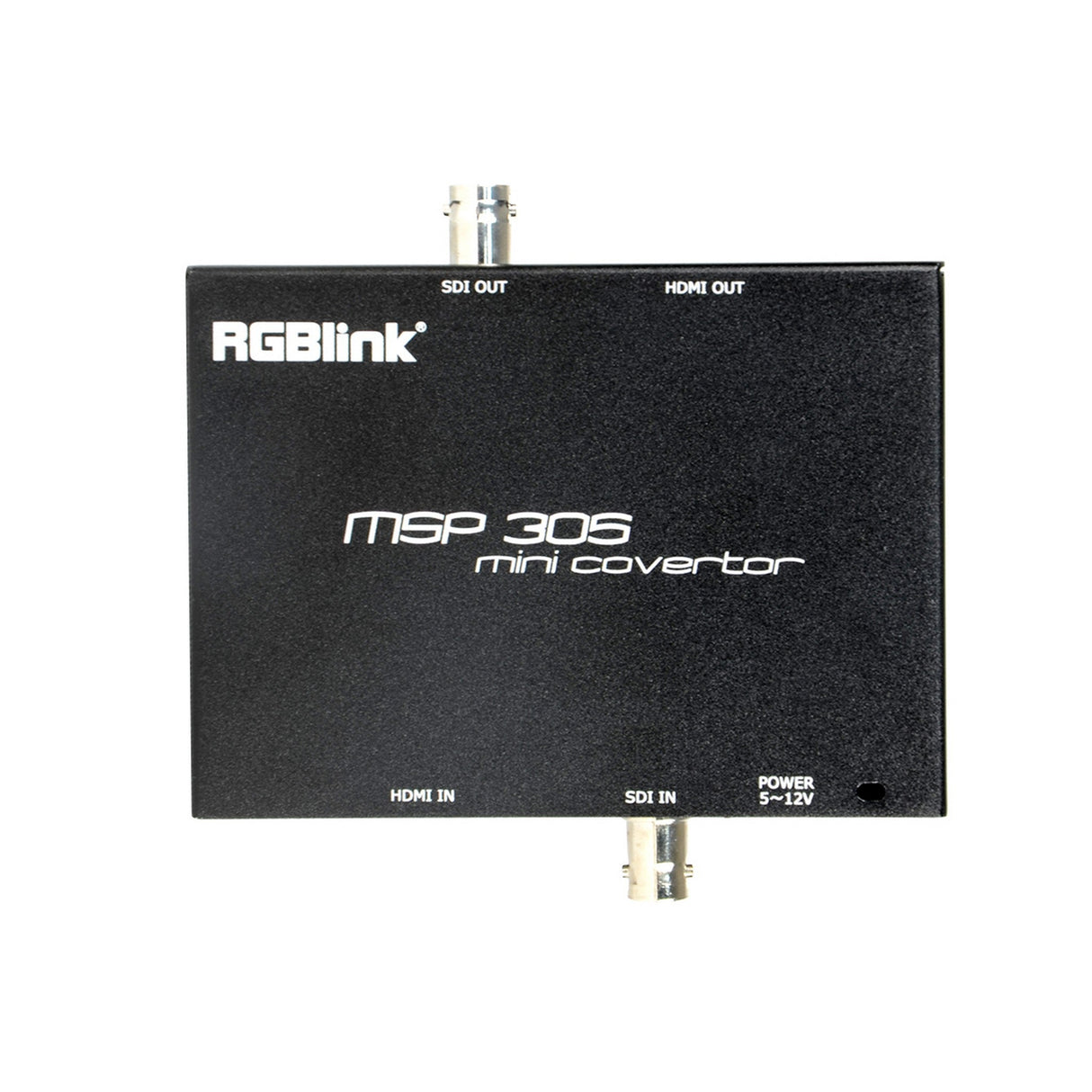

RGBlink MSP 305 Bidirectional 3G SDI/HDMI Converter

The RGBlink MSP 305 Bidirectional 3G SDI/HDMI Converter is a game-changer for seamless signal conversion in professional settings. This bidirectional 3G-SDI/HDMI converter empowers you to effortlessly switch between HDMI and SDI formats, ensuring flawless transmission of your high-definition content (up to 1080p60 resolution) over extended distances. Equipped to handle high bit rates of 2.970 Gbit/s, the MSP 305 guarantees pristine signal delivery without any loss.
Furthermore, the RGBlink MSP 305 Bidirectional 3G SDI/HDMI Converter eliminates compatibility headaches by bridging the gap between HDMI and SDI displays. This versatile converter boasts features like embedded audio and auto-detection of 3G/HD/SD formats, simplifying your workflow and guaranteeing smooth signal conversion for even the most demanding projects.

Key Features

• HDMI 1.3 and 3G SDI compatibility

• Supports resolutions up to 1080p60

• Features 1 HDMI input and 1 SDI output

• Includes 1 SDI input and 1 HDMI output

• Supports embedded audio and auto detects 3G/HD/SD signals

Technical Specifications

Connectors
Input
HDMI
1×HDMI Type A
SDI
1×BNC
Output
HDMI
1×HDMI Type A
SDI
1×BNC

Performance
Input Resolutions
SMPTE
720p@23.98/24/25/29.97/30/50/59.94/60 | 1080i@23.98/24/25/29.97/30/50/59.94/60 |
VESA
800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1366x768@60 |
1600x1200@60 | 1920x1080@60
Output Resolutions
SMPTE
720p@23.98/24/25/29.97/30/50/59.94/60 | 1080i@23.98/24/25/29.97/30/50/59.94/60 |
VESA
800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1366x768@60 |
1600x1200@60 | 1920x1080@60
Supported Standard
SDI
SMPTE 425M,SMPTE 424M,SMPTE 292M,SMPTE 259M-C
HDMI
1.3

Power
Input Voltage
DC 5-12V

Environment
Working Temperature
0 ~40℃
Storage Temperature
-20~60℃
Humidity
20- 90%

Physical
Weight
Net
0.25kg
Packaged
0.5kg
Dimensions
Net
112mm×106mm×24mm
Packaged
160mm×120mm×80mm
