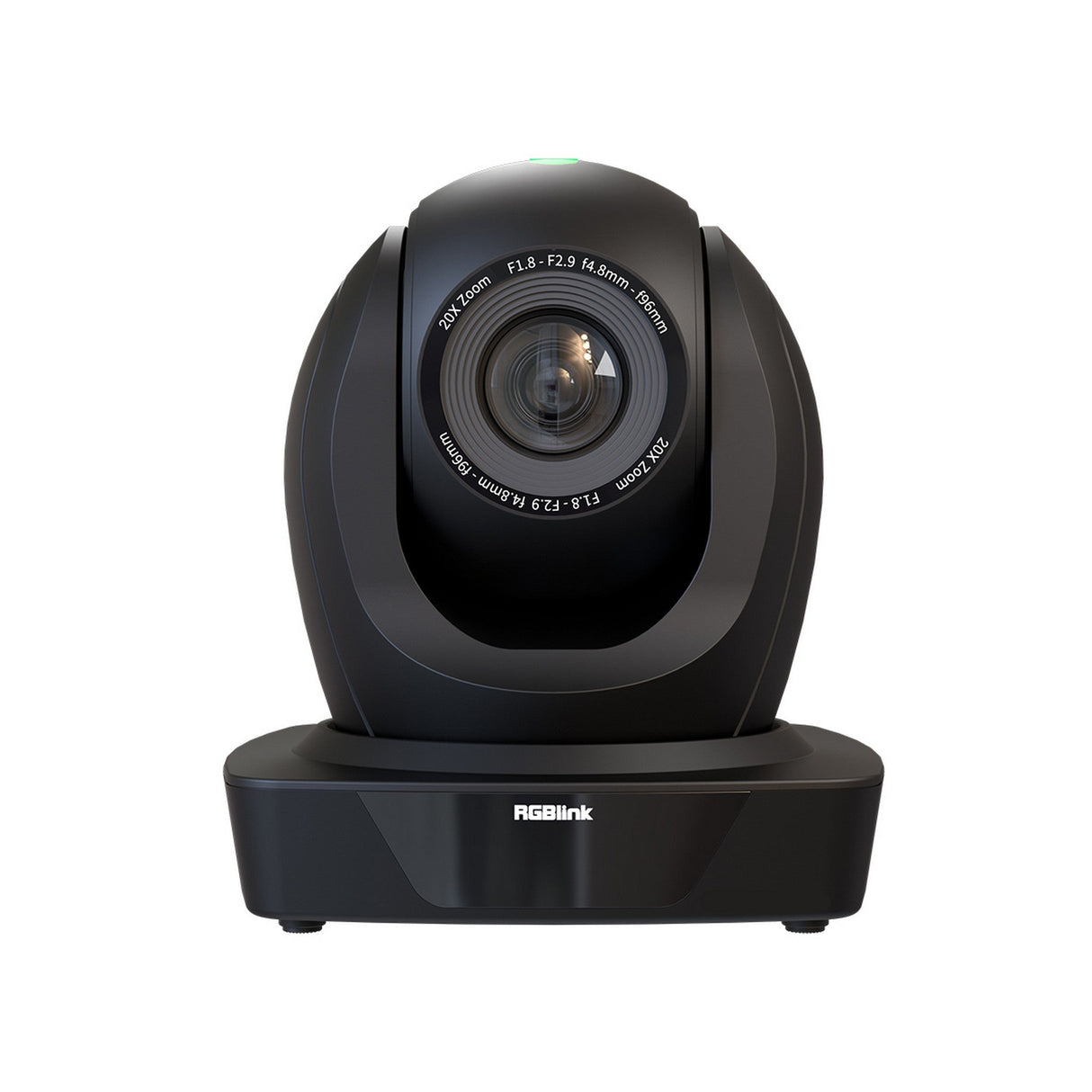

RGBlink RGB30X-PNDI-TLY vue 30X NDI PTZ Camera with TALLY

Add whole new dimensions to capturing video presentations with RGBlink vue PTZ cameras.

Pan, Tilt, Zoom to capture all the action - get in even closer with 10X digital zoom, and the best video with auto focus, dynamic level adjustment (WDR) and 2D/3D Dynamic Noise Reduction (DNR) all at up to 60fps.

All vue models feature the unique TALLY crown light indicator, integrated right into the housing for 360-degree viewing. The innovative and patented RGBlink vue camera design is at home in every environment.

Key Features

• High speed optical zoom
• RTSP/RTMP/SRT encoding output
• High performance in low light scenarios with Wide Dynamic Range
• H.265/H.264 dual stream output adapted to different network environments
• Full 1920×1080p HD resolutions up to 60 frames per second
• Pan and Tilt Control
• Low-power sleep function
• Applicable to meeting, live streaming, church, classroom and more
• Support TALLY
• Support PoE

Technical Specifications

Output
3G SDI: 1xBNC
HDMI: 1xHDMI-A
USB: 1xUSB-A
LAN: 1xRJ45
Audio
IN: 1x3.5mm Stereo Jack
Control
RS232 IN/OUT: 2xDIN8
RS485: 1x4pin Terminal
Power
1xDC12V Jack
Optical Zoom
12X: f=4.1-49.2mm
20X: f=4.8-96mm
30X: f=5.2-148.4mm
View Angle
12X: 6.57-deg - 70.28-deg
20X: 3.45-deg - 60.04-deg
30X: 2.14-deg -58.1-deg
AV
12X: F1.8 - F2.68
20X: F1.8 - F2.9
30X: F1.3 - F4.8
Digital Zoom
10X
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus
Auto/Manual
Aperture/Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/Dynamic Level Adjustment
Video Adjustment
Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve
SNR
>55dB
Effective Pixels
2.07m,16:9
Pan/Tilt Movement
-170-deg -+170-deg /'-30-deg -+90-deg
Pan/Tilt Control Speed
0.1-60-deg /S;0.1-30-deg /S
Preset Speed/Quantity
Pan:60-deg /S, Tilt:30-deg /S; Up to 255 preset positions (10 remote control)
360-deg TALLY
Full 360-deg view of TALLY
Audio Compression Format
AAC | MP3 | G.711A
Video Compression Format
H.264 | H.265 | Dual Streaming Output
Output Resolutions
720p50/59.94/60 | 1080p25/29.97/30/50/59.94/60 | 1080i50/59.94/60
Control Protocol
VISCA | Pelco-D | Pelco-P | ONVIF
Baud Rate(bps)
115200 | 9600 | 4800 | 2400bps
Network Protocol
RTSP | RTMP | SRT | ONVIF
Supported Standards
SDI
SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
Input Voltage
DC12V/1.5A
Max Power
12W
Environment Temperature
-10 deg C-50 deg C
Humidity
20%-80%
Weight
Net
1.7kg
Dimension
Net
180mm(front)×188mm(side)×198mm(height)
