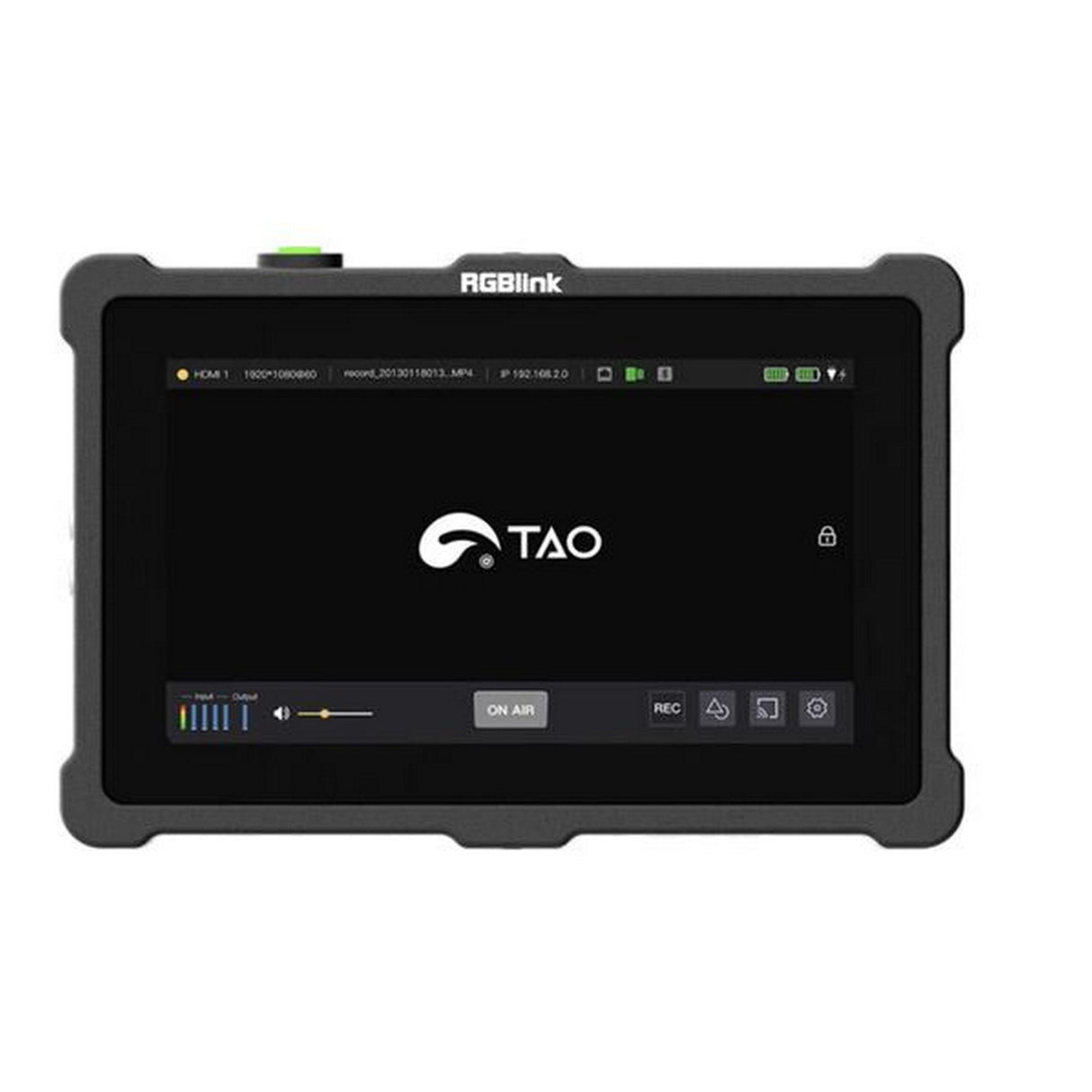

RGBLink TAO 1pro 5.5-Inch FHD Broadcast Streaming Decoder
TAO 1pro is a Broadcasting streaming decoder with a 5.5-inch FHD preview display, but also a 4 channels seamless video switcher for 2 USB 3.0 and 2 HDMI 1.3 inputs, and supports streaming directly by ethernet output which is ready to connect to external cloud-based router and streaming from Anywhere to Everywhere.
TAO 1pro is compatible with standard USB 2.0 and USB 3.0 cameras by UVC protocol, and brings itself as a much affordable and user-friendly streaming tools for anybody, the talents who is willing to be Anchor Online.
TAO 1pro is also with touch panel for finger configuration, and with optional 2 chargable battery extending its capacity for outdoor application.
Key Features
- 5.5-inch touchscreen operation
- Network HD streaming
- Seamless switcher
- 2*UVC inputs,2*HDMI 1.3 input and 1* HDMI 2.0 output
- NDI 5.0 encoder
- Recording via USB 2.0 port,mobile hard disk stores up to 2T
- Multistream up to 4 Live Streaming platforms simultaneously
Technical Specifications
Connectors
Input
HDMI 1.3: 2xHDMI-A
USB 3.0: 2xUSB TypeA
Output
HDMI 2.0: 1xHDMI-A
Record
USB 2.0: 1xUSB TypeA
Audio
In: 1x3.5mm Audio Jack
Out: 1x3.5mm Audio Jack
Communication/Stream
LAN: 1xRJ45
Power
1xUSB-C
Performance
Input Resolutions
SMPTE: 720p@50/60 | 1080p@23/24/60
VESA: 1024x768@60 | 1280x720@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 |1600x1200@60 | 1680x1050@60 | 1920x1080@60
Output Resolutions
SMPTE: 720p@50/60 | 1080p@24/25/50/60 | 2160p@60
VESA: 1024x768@60 | 1280x720@50/60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1920x1080@50/60 | 3840x2160@60
Supported Standard
HDMI: 1.3(Input) | 2.0(Output)
USB: 3.0
Screen Feature
Screen Dimension
5.5ā TFT
Resolution
1080x1920 pixels
Dot Pitch
0.063(H)x0.021(W)(mm)
Aspect Ratio
16:9
Brightness
450cd/mĀ²
Contrast
1000:1
Backlight
LED
View Angle
80Ā°/80Ā°(L/R)80Ā°/80Ā°(U/D)
Power
Input Voltage
9V/2A
Max Power
18W
Environment
Temperature
0 Degrees Celcius~55 Degrees Celcius
Humidity
5%~85%
Physical
Weight
Net
350g (without battery);882g(with battery)
Package
770g
Dimension
Net
161mmx106mmx36mm
Package
255mmx145mmx85mm
