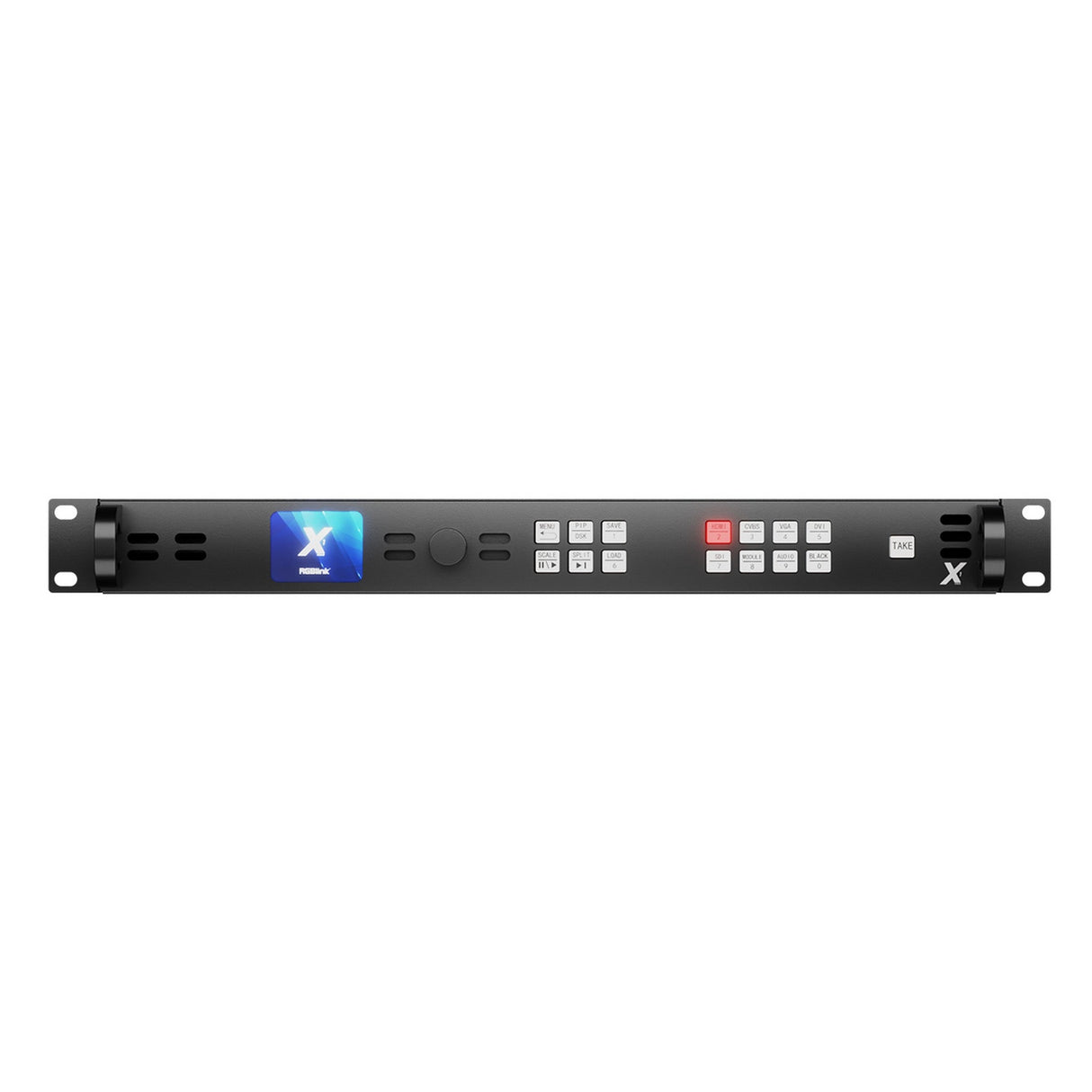

RGBlink X1-S Gen2 HDMI/SDI Broadcast-Grade LED Video Processor

Introducing the X1-S Gen2, the second iteration of Azden’s leading broadcast video processor, which has been refined and enhanced based on market feedback and industry trends. The X1-S Gen2 builds on the success of the X1, offering improved performance and additional features to meet the growing demands of modern broadcast environments. This versatile processor is designed to handle a wide range of video inputs, providing seamless switching, exceptional audio and video synchronization, and robust connectivity options. It is the perfect choice for both studio and rental applications, providing reliable and customizable solutions for LED displays and broadcast needs.

The X1-S Gen2 supports DVI output resolution up to 2048×1152@60 and includes the capacity for customized resolutions, allowing for flexibility in diverse broadcast scenarios. It also offers an optional SDI module to extend its functionality, making it suitable for studio and rental environments. The processor is compatible with multiple LED control systems, including Novastar, Colorlight, Linsn, Mooncell, and RGBlink, ensuring seamless integration across various platforms. Additionally, the X1-S Gen2 offers a suite of advanced features, such as Picture-in-Picture (PIP), Picture-by-Picture (PBP), DSK/Chroma Key, and an open API for third-party integration, enabling creative and dynamic setups.

Designed with ease of use in mind, the X1-S Gen2 boasts user-friendly features such as EDID management for both DVI and HDMI inputs, multiple test patterns, and seamless TAKE switching between inputs. Whether used for video displays, presentations, or live events, the X1-S Gen2 is built to deliver exceptional quality and reliable performance, making it the ideal solution for high-end broadcast video processing.

Key Features

• Supports DVI output resolution up to 2048×1152@60 with customizable resolution options
• Optional SDI module for extended broadcast capabilities
• Compatible with a wide range of LED control systems including Novastar, Colorlight, Linsn, Mooncell, and RGBlink
• Picture-in-Picture (PIP) and Picture-by-Picture (PBP) support with customizable layouts
• Audio and video synchronization for flawless broadcast quality
• Seamless TAKE switching between inputs for smooth transitions
• DSK/Chroma Key functionality for professional-level video production
• Open API for third-party integration
• EDID management for both DVI and HDMI inputs
• Standard with two DVI outputs
• Supports cascading of multiple units for uniform control
• Built-in test patterns for quick and easy setup

Technical Specifications

Connectors X1-S Gen2:
Standard with HDMI In/Loop 2×HDMI-A, DVI 1×DVI-I, VGA 1×DB15, CVBS 1×BNC, SDI In/Loop 2×BNC (1 In | 1 Loop)

Connectors Output:
Standard with DVI 2×DVI-I, Audio IN L/R 2×RCA, OUT L/R 2×RCA, AUDIO OUT 1×3.5mm Stereo Jack

Communication:
RS232 1×RJ11, USB 1×USB-B, Power 1×IEC

Performance Input Resolution:
DVI | HDMI: SMPTE 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60, VESA 800×600@60 | 1024×768@60 | 1280×768@60 | 1280×1024@60 | 1366×768@60 | 1600×1200@60 | 1920×1080@60
VGA: VESA 800×600@60 | 1024×768@60 | 1280×1024@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60
SDI: SMPTE 480i | 576i | 720p@25/30/50/60Hz | 1080i@50/59.94/60Hz | 1080p@23.98/24/25/29.97/30/50/59.94/60

Output Resolution:
Select from DVI or configure customized options: SMPTE 720p@50/60 | 1080p@50/60, VESA 1024×768@60 | 1280×720@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 | 1440×900@60 | 1600×1200@60 | 1920×1080@60 | 1920×1200@60 | 2048×1152@60 | 2560×816@60

Supported Standard:
SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

Power Input:
Voltage AC 85~264V, 50/60Hz, Max Power 25W

Environment:
Temperature 0℃~40℃, Humidity 10%~85%

Physical:
Weight Net 3.1kg, Packaged 5.25kg, Dimension Net 480mm×303mm×45mm, Packaged 540mm×360mm×135mm
