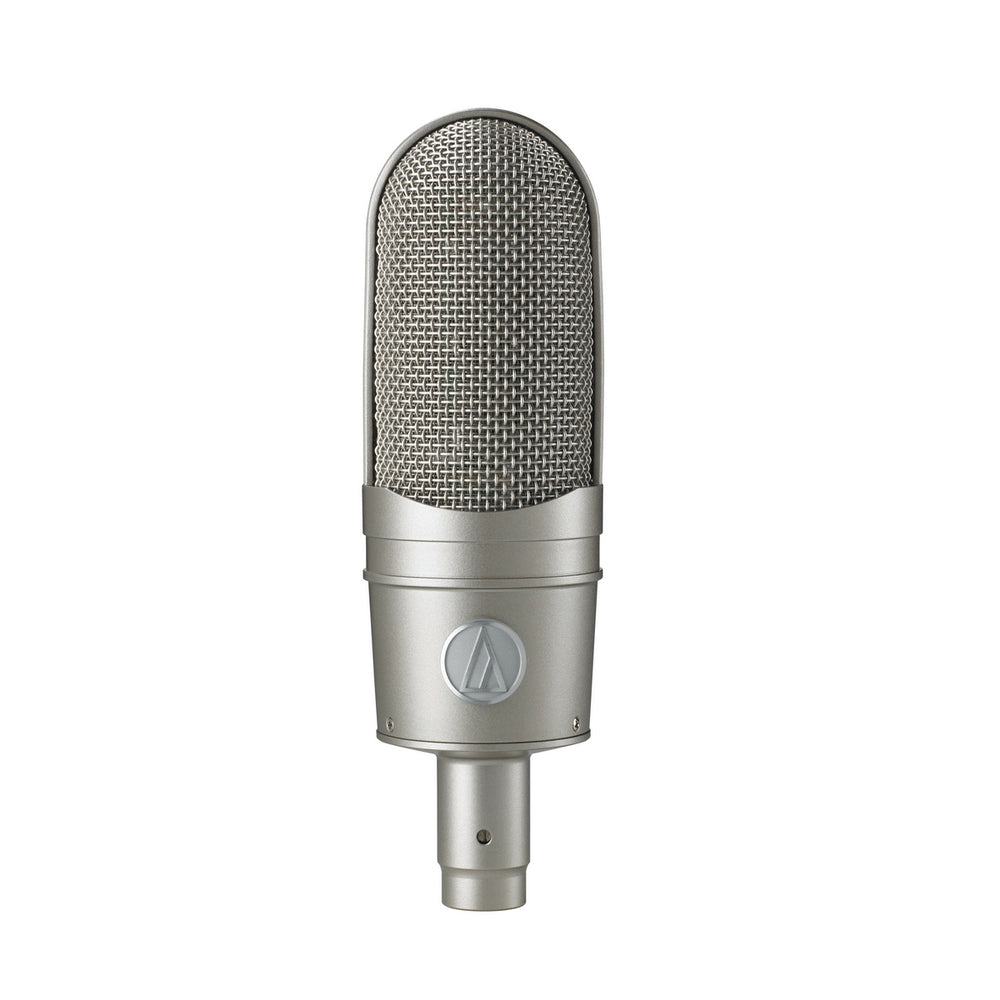

Audio-Technica AT4080 Bidirectional Ribbon Microphone Broadcast Recording

Audio-Technica AT4080 Bidirectional Ribbon Microphone Broadcast Recording

With the groundbreaking AT4080, Audio-Technica achieves the coveted ribbon microphone sound while solving the problems of fragility and low output that have historically plagued ribbon mics. Delivering the warm, smooth sound of a classic ribbon microphone, Audio-Technica's handcrafted AT4080 Ribbon Microphone offers a robust build for long-lasting, reliable performance and higher output for maximum compatibility with microphone preamplifiers.

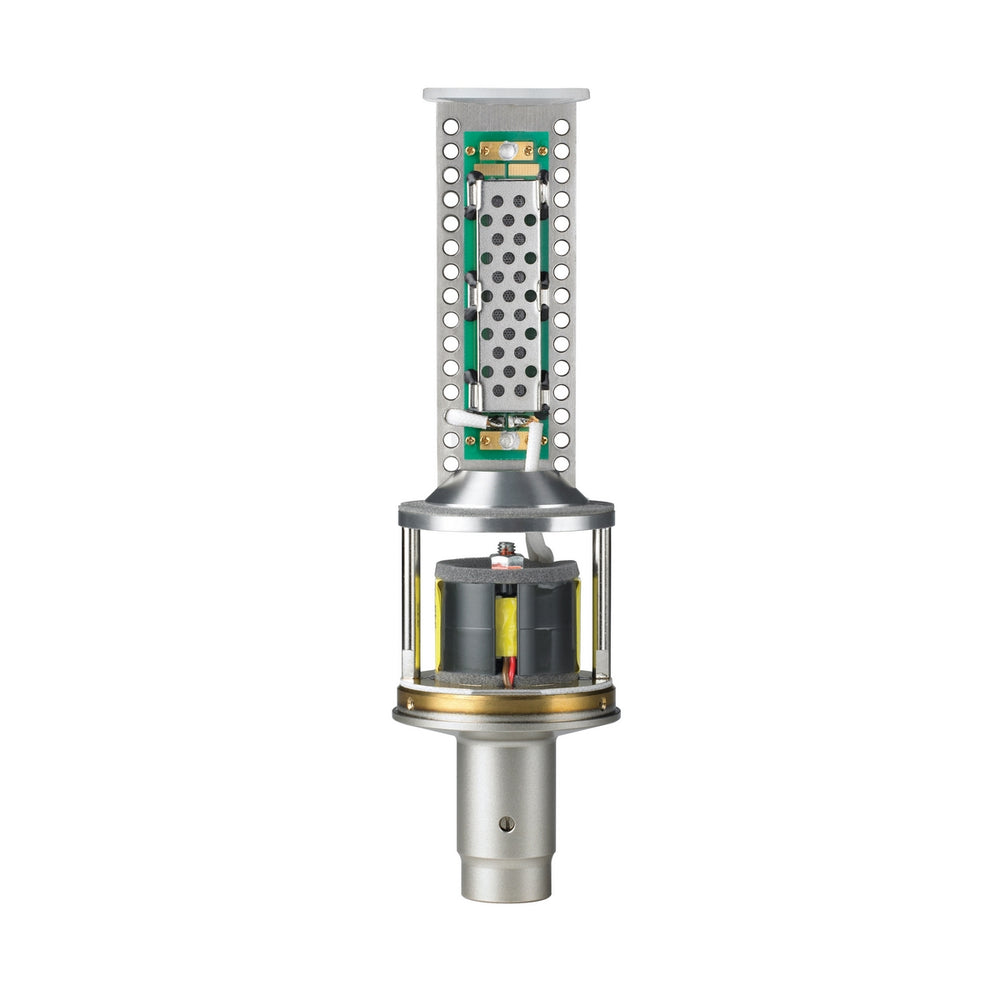

Equally at home in recording studios and live-sound settings, the microphone features Audio-Technica's innovative MicroLinear ribbon imprint, which protects the dual ribbons from lateral flexing and distortion. Utilizing six new patents, Audio-Technica's innovative ribbon transducer advances the evolution of ribbon microphone design. Experience the difference with the Audio-Technica AT4080 and elevate your audio recording to new heights.

Key Features

• Smooth, warm and natural high-fidelity sound for professional recording, broadcast and sound reinforcement
• Proprietary MicroLinear ribbon imprint for superior durability
• Innovative dual ribbon construction for increased sensitivity
• Extremely powerful N50 neodymium magnets for high output level
• Ultra-fine mesh helps protect against ribbon damage
• Classic bidirectional (figure-of-eight) polar pattern picks up sounds equally from the front and back of the element
• High-SPL capability and extended frequency response for natural audio reproduction
• Acoustic baffle system and extra-large output transformer provide natural low-frequency response and extended dynamic range
• Handmade production including ribbon corrugation, imprint and assembly
• Open acoustical environment of the housing assembly minimizes unwanted internal reflections
• Phantom-powered active electronics provide stable impedance and higher output for maximum compatibility with microphone preamplifiers
• Custom shock mount provides superior isolation
• Certified by the METAlliance (Music Engineering and Technology Alliance)

Specifications

• ELEMENT: Ribbon
• POLAR PATTERN: Figure-of-eight
• FREQUENCY RESPONSE: 20-18,000 Hz
• OPEN CIRCUIT SENSITIVITY: -39 dB (11.2 mV) re 1V at 1 Pa
• IMPEDANCE: 100 ohms
• MAXIMUM INPUT SOUND LEVEL: 150 dB SPL, 1 kHz at 1% T.H.D.
• NOISE: 22 dB SPL
• DYNAMIC RANGE (typical): 128 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 72 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 48V DC, 3.0 mA typical
• WEIGHT: 474 g (16.7 oz)
• DIMENSIONS: 177.5 mm (6.99") long, 53.4 mm (2.10") maximum body diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type

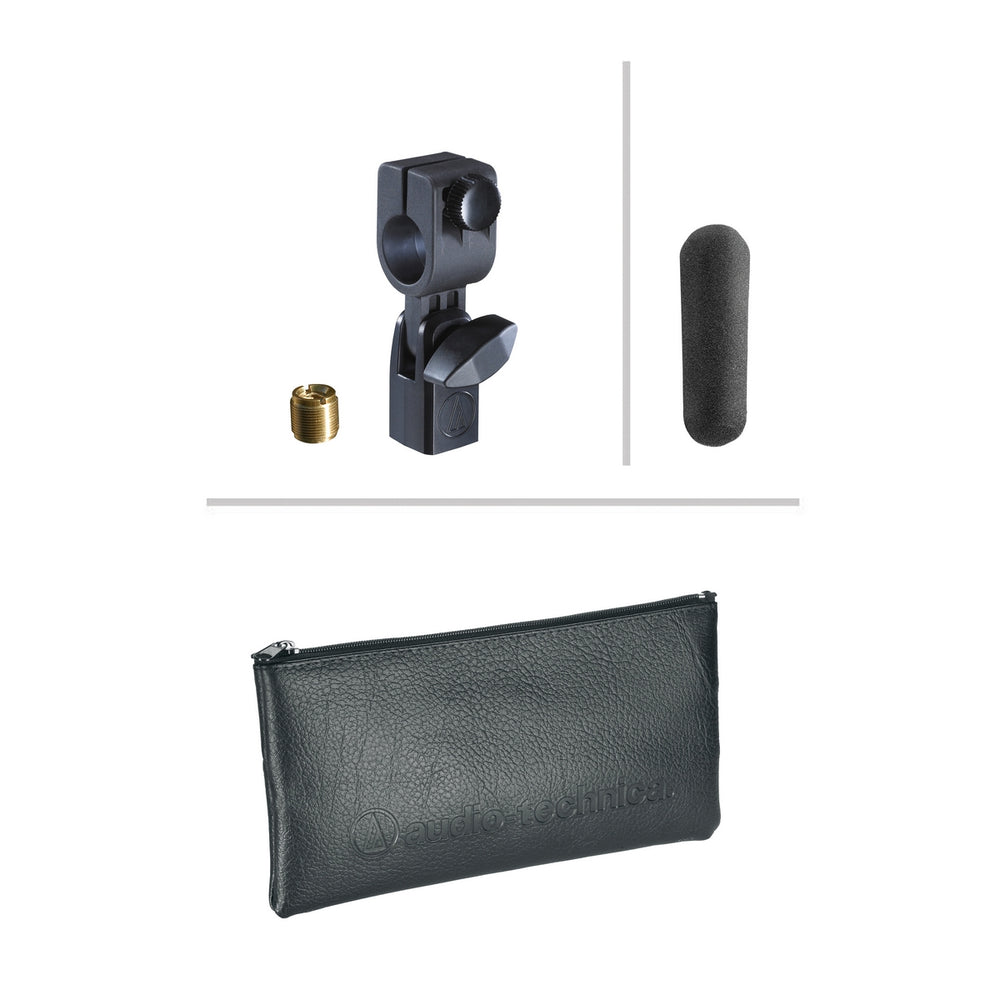

Package Contents

• AT8449/SV shock mount for 5/8"-27 threaded stands
• Microphone dust cover
• Protective carrying case
