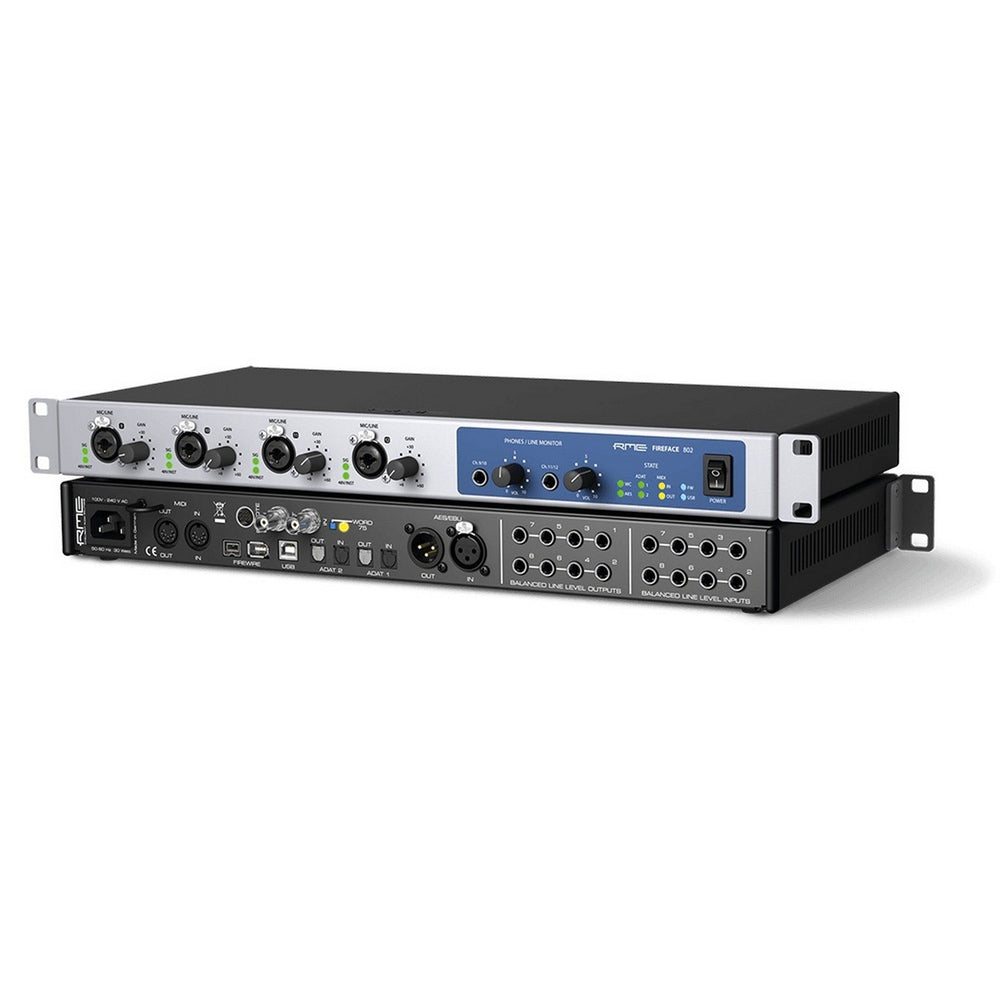

RME Fireface 802 60 Channel High End 192 kHz USB Firewire Audio Interface

Ultra-low latency operation with USB or FireWire, combined with the legendary RME driver stability and maintenance. Active jitter suppression, individually switchable reference levels for all inputs and outputs, full stand-alone functionality, RME’s unique DIGICheck metering and analysis toolbox, and identical operation on Windows PC and Mac.

Key Features

• 30 Input / 30 Output channels
• Four definable groups for Solo, Mute and Faders
• Switchable Mono and Stereo channel view
• Channel Options: Stereo Width, MS Processing, Phase L/R
• Unlimited Undo and Redo
• Slim channel mode for selected or all channels, to save space or give a meter bridge view
• 2 Row Mode: reduces the height of the mixer to two rows for smaller displays

Technical Specifications

AD, Line In 1-8, rear
Resolution AD
24 bit
Signal to Noise ratio (SNR)
113 dB RMS unweighted, 116 dBA
Frequency response @ 44.1 kHz, -0.1 dB
5 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB
5 Hz - 45.8 kHz
Frequency response @ 192 kHz, -1 dB
5 Hz - 92 kHz
THD
< -110 dB, < 0.00032 %
THD+N
< -104 dB, < 0.00063 %
Channel separation
> 110 dB
Input
6.3 mm TRS jack, electronically balanced
Input sensitivity
8 kOhm unbalanced, 12 kOhm balanced
Input sensitivity
switchable to Lo Gain, +4 dBu, -10 dBV
Input level for 0 dBFS @ Lo Gain
+19 dBu
Input level for 0 dBFS @ +4 dBu
+13 dBu
Microphone In 9-12, front
As AD, but:
Input
XLR, electronically balanced
Input impedance
3.4 kOhm
Signal to Noise ratio (SNR)
112 dB RMS unweighted, 116 dBA
Gain range
54 dB
Maximum input level, Gain +6 dB
+10 dBu
Instrument In 9-12, front
As AD, but
Input
6.3 mm TS jack, unbalanced
Input impedance
800 kOhm
Signal to Noise ratio (SNR)
112 dB RMS unweighted, 115 dBA
Maximum input level, Gain +6 dB
+21 dBu
DA, Line Out 1-8, rear
Dynamic range (DR)
115 dB RMS unweighted, 118 dBA
Frequency response @ 44.1 kHz, -0.5 dB
5 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB
5 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB
5 Hz - 89 kHz
THD
-110 dB, < 0.00032 %
THD+N
-104 dB, < 0.00063 %
Channel separation
> 110 dB
Output
6.3 mm TRS jack, servo-balanced
Output impedance
75 Ohm
Output level switchable Hi Gain, +4 dBu, -10 dBV
Output level at 0 dBFS @ Hi Gain
+19 dBu
Output level at 0 dBFS @ +4 dBu
+13 dBu
Output level at 0 dBFS @ -10 dBV
+2 dBV=
DA - Stereo Monitor Output Phones (9-12)
As DA, but
Output
6.3 mm TRS stereo jack, unbalanced
Maximum output level at 0 dBFS, High
+16.8 dBu
Maximum output level at 0 dBFS, Low
+2 dBV
Output impedance
30 Ohm
AES/EBU
2 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
ADAT Optical
2 x TOSLINK I/O, format according to Alesis specification
Standard
2 x 8 channels 24 bit, up to 48 kHz
Double Speed (S/MUX)
2 x 4 channels 24 bit 96 kHz
Quad Speed (S/MUX4)
2 x 2 channels 24 bit 192 kHz
Quad Speed Windows USB
1 x 2 channels 24 bit 192 kHz
SPDIF optical (via ADAT2)
1 x optical, according to IEC 60958
Word Clock
BNC, switchable termination
