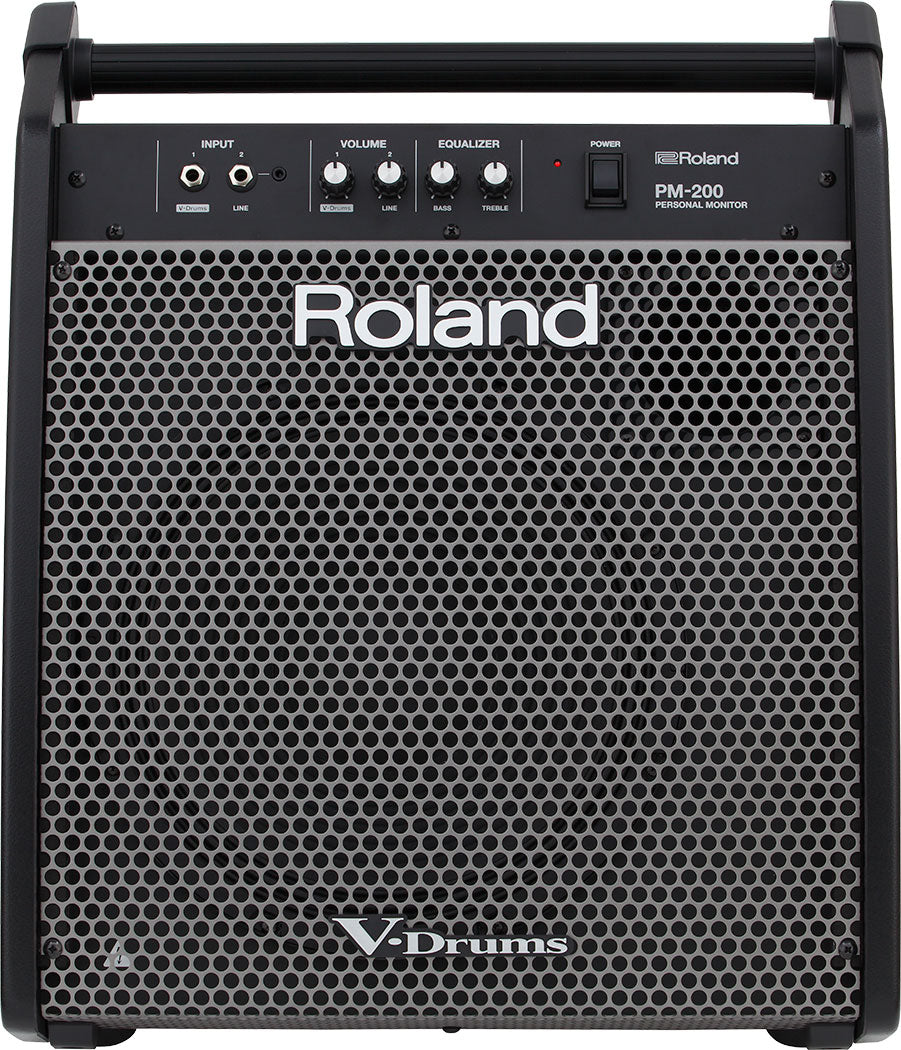

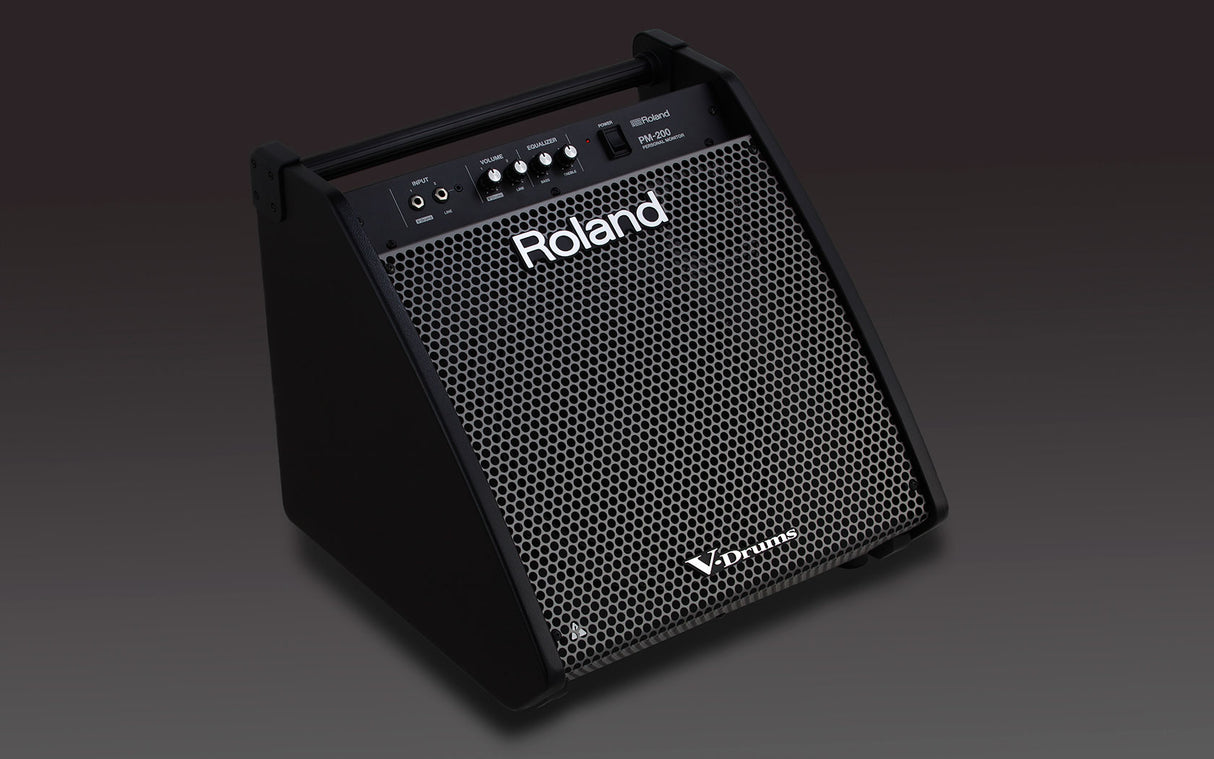

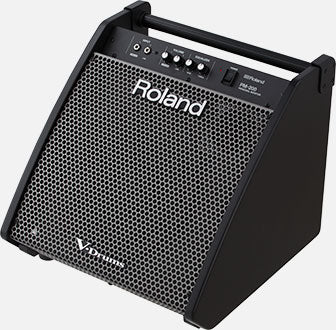

Roland PM-200 180W V-Drums Personal Monitor

Roland PM-200 180W V-Drums Personal Monitor

The Roland PM-200 is a high-powered 180-watt personal monitor engineered specifically for Roland V-Drums electronic drum kits. Delivering more than double the output of the PM-100, the PM-200 accommodates larger rooms, louder acoustic environments, and band rehearsal settings where the drummer needs to hear their V-Drums sound clearly above the mix. A custom 12-inch (30 cm) woofer and horn tweeter reproduce the full dynamic range of V-Drums output with exceptional clarity and impact.

Connectivity mirrors the PM-100's focused design: a dedicated stereo V-Drums input (1/4-inch, –6 dBu) and a general line input accepting both 1/4-inch and 1/8-inch stereo sources for blending drum sounds with backing tracks. Independent volume controls and a two-band EQ (BASS and TREBLE) give the drummer real-time monitoring control without accessing the drum module. A balanced XLR DIRECT OUT — switchable between stereo and dual mono — allows the PM-200's audio to be sent directly to a PA system or recording interface.

The DIRECT OUT switch positions (stereo vs. dual mono) make the PM-200 equally useful as a stage monitor feeding a front-of-house mix and as a studio reference monitor for recording sessions. The full-width carry bar enables easy transport and floor placement, and the angled front baffle directs sound optimally toward a seated drummer at floor level.

Key Features

• 180-watt output; custom 12-inch (30 cm) woofer + horn tweeter, angled for floor monitoring
• Dedicated V-Drums stereo input (1/4-inch, –6 dBu, 10 kΩ)
• Line input: 1/4-inch stereo + 1/8-inch stereo (–6 dBu, 10 kΩ) for backing tracks
• XLR DIRECT OUT (balanced) switchable between stereo and dual mono for PA/recording sends
• Independent V-Drums and Line Input volume controls; two-band EQ (BASS/TREBLE)
• DIRECT OUT switch for stereo/dual-mono routing selection
• Full-width carry bar; angled cabinet for floor-level monitoring

Technical Specifications

• Rated Power Output: 180 W
• Power Consumption: 64 W
• Speaker System: 30 cm (12-inch) Woofer ×1, Horn Tweeter ×1
• V-Drums INPUT: Stereo 1/4-inch phone jack, Nominal Level –6 dBu, Input Impedance 10 kΩ
• LINE INPUT (1/4-inch): Stereo 1/4-inch phone jack, Nominal Level –6 dBu, Input Impedance 10 kΩ
• LINE INPUT (1/8-inch): Stereo 1/8-inch (3.5 mm) phone jack, Nominal Level –6 dBu, Input Impedance 10 kΩ

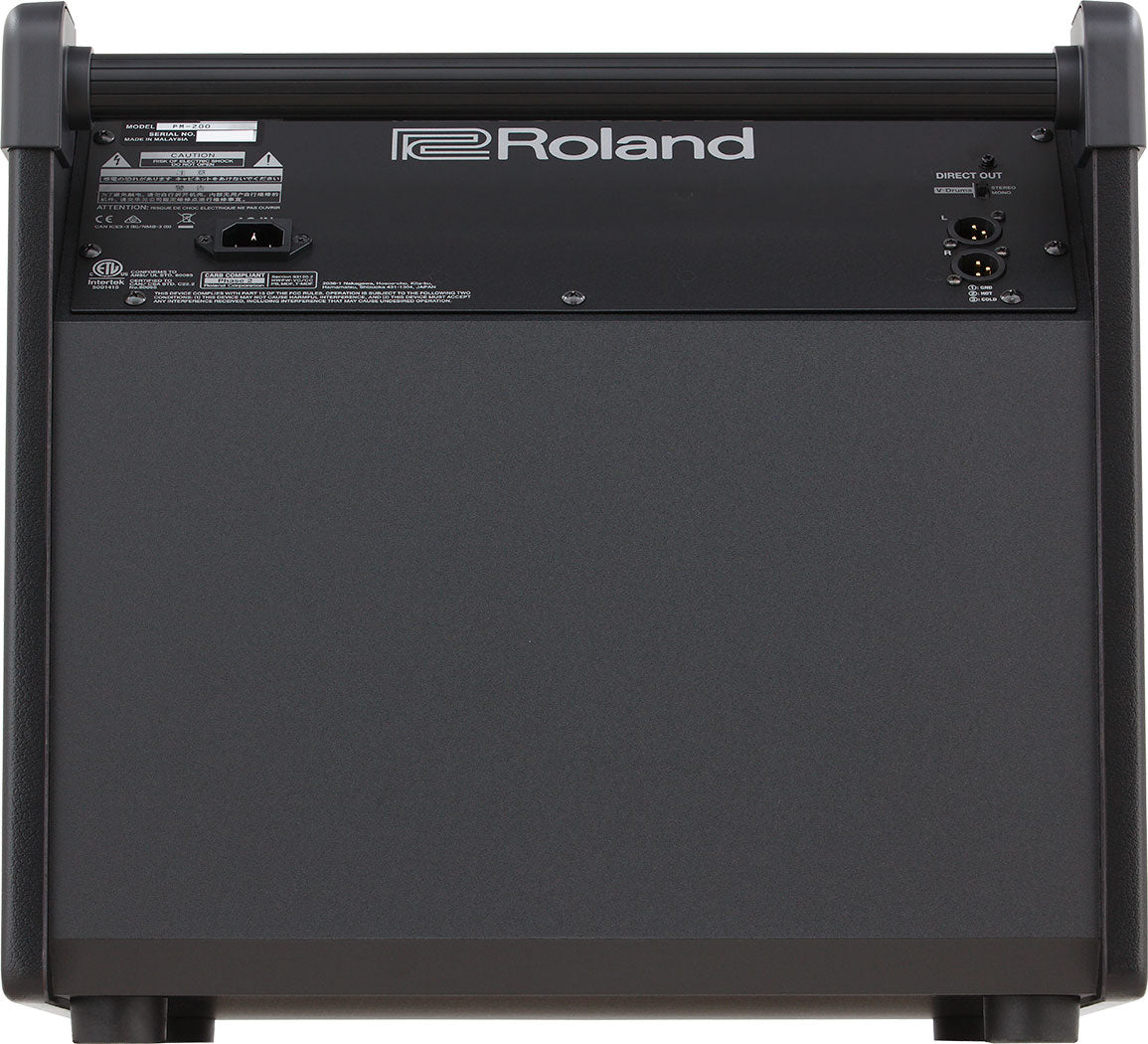

• DIRECT OUT: XLR type (balanced), switchable stereo or dual mono
• AC IN Jack
• Controls: Power Switch, V-Drums Volume Knob, Line Input Volume Knob, Bass Knob, Treble Knob, Direct Out Switch
• Indicator: Power LED
• Width: 458 mm (18-1/16 inches)
• Depth: 469 mm (18-1/2 inches)
• Height: 420 mm (16-9/16 inches)
• Weight: 21.0 kg (46 lbs 5 oz)
• What's In The Box: Owner's Manual, Power Cord
