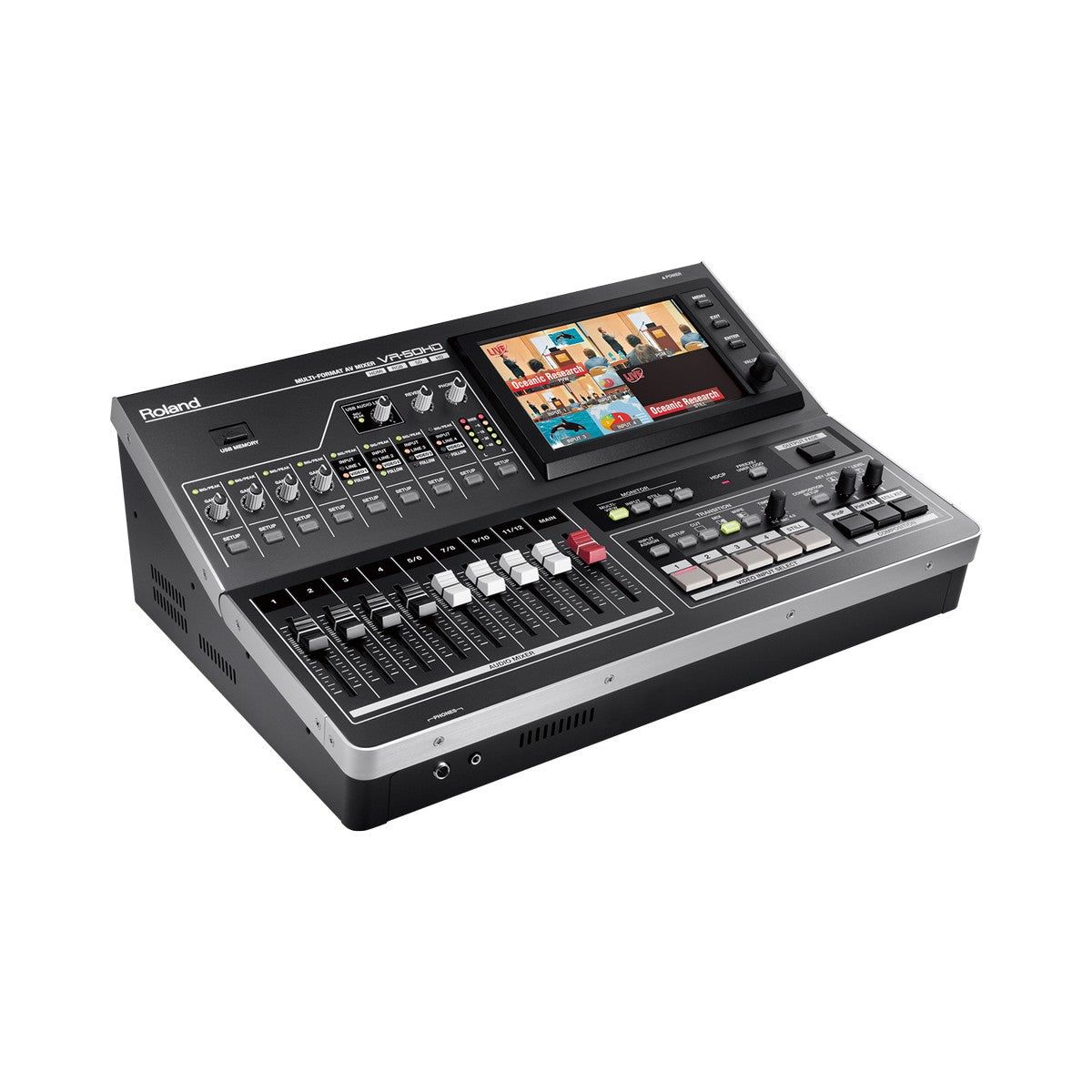

Roland VR-50HD Multi Format AV Mixer

Roland VR-50HD Multi Format AV Mixer

A complete portable HD studio in a single unit. Single-person operation of sound and picture using faders, buttons and touch screen. The Roland VR-50HD all-in-one AV mixer beautifully integrates an audio mixer, video switcher, multi-viewer touch screen and USB video/audio streaming into a stand-alone device. This single unit delivers functionality that until now required a number of peripheral devices to accomplish. This portable live HD production solution is ideal for schools, churches, council meetings, corporate events, sports, trainings, or any other live event.

Key Features

• 12 input, 4-Channel Video plus still channel Multi-Format Switcher
• Supports 3G/HD/SD SDI, HDMI, RGB/Component, and Composite Video Inputs Up to 1080p (3G SDI)
• Embedding of audio with delay settings
• 12-Channel Digital Audio Mixer with XLR, TRS, and RCA jacks along with audio from SDI and HDMI inputs
• 4 Layer, Compositing of PinP, PinP/KEY, and STILL
• Built-In Preview Touch Monitor (7 inch Graphic color LCD 800 x 480 dots)
• External Multi-View Output through HDMI
• HDCP Support
• USB3.0 Video/Audio Output for web streaming and recording up to 1080p (uncompressed)

Technical Specs

Video

Processing
4:4:4 (RGB), 10-bit
4:2:2 (Y/Pb/Pr), 10-bit
Input Connectors
3G/HD/SD-SDI: BNC type x 4 (INPUT 1--4)
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C.
HDMI(DVI-D): Type A(19pin) x 4 (INPUT 1--4)
* HDCP Supported.
Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (INPUT 1--2)
Analog Video (SD): Composite (BNC type) x 2 (INPUT 1--2)
* INPUT 1-2: Select SDI, HDMI or Analog RGB, Composite using menu.
* INPUT 3-4: Select SDI, HDMI using menu.
Output Connectors
3G/HD/SD-SDI: BNC type x 2 (PGM OUT, AUX OUT)
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-C
HDMI(DVI-D): Type A(19pin) x 3 (PGM OUT, AUX OUT, MULTI VIEW)
* HDCP Supported
Analog RGB/HD-Component: Mini D-sub 15-pin type x 2 (PGM OUT, AUX OUT)
Input/Output Level and Impedance
Composite: 1.0 Vp-p 75 ohms
Analog RGB: 0.7 Vp-p 75 ohms (H, V: 5 VTTL)
Analog HD: 1.0 Vp-p 75 ohms (Sync-Signal: Bi-Level/Tri-Level)

Supported Video Formats

SDI
480/59.94i, 576/50i, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* Conforms to SMPTE 274M, SMPTE 296M, ITU-R BT.601-5.
HDMI:(*2)
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i,
1080/59.94p, 1080/50p
1024×768/60Hz(*1), 1280×720/60Hz(*1), 1280×800/60Hz(*1), 1280×1024/60Hz(*1),
1400×1050/60Hz, 1920x1080/60Hz
HDMI(MULTI-VIEW Output):(*2)
1080/59.94p
Component
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i,
1080/59.94p, 1080/50p
RGB:(*2)
1024×768/60Hz(*1), 1280×720/60Hz(*1), 1280×800/60Hz(*1), 1280×1024/60Hz(*1),
1400×1050/60Hz, 1920x1080/60Hz
Composite
NTSC, PAL
*Note
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
*2 Conforms to CEA-861-E or VESA DMT Version 1.0 Revision 11.
* The video signal frame rate must match the unit’s frame rate setting.
* The output format of HDMI and RGB/Component is always the same.
When a Video format is selected, component signal is output from the RGB/COMPONENT connector.
When a RGB format is selected, RGB signal is output from the RGB/COMPONENT connector.
USB-VIDEO
480/29.97p, 576/25p, 480/59.94p, 576/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p,
1080/29.97p, 1080/25p, 1080/59.94p, 1080/50p
Still Image
Windows(R) Bitmap File (.bmp)
* Maximum 1920 x 1080 pixels, 24-bit per pixel, uncompressed.
Effects
Transition: Mix, Cut, Wipe (9 patterns)
Composition: PinP, Chrominance Key, Luminance Key
Others: Output Fade, Output Freeze, User Logo

Audio

Audio Processing
Sampling Rate: 24-bit/48 kHz
Input Connectors
AUDIO IN (1 to 4) jacks (XLR/TRS combo type)
* XLR type: 1 GND, 2 HOT, 3 COLD
* Phantom Power: DC 48 V (unloaded maximum), 5 mA (maximum load)
(Current value per channel).
AUDIO IN (5 to 8) jacks (RCA phono type)
AUDIO IN (9 to 12) jacks (TRS type)
Output Connectors
AUDIO OUT L,R jacks (XLR-3-32 type)
* XLR type: 1 GND, 2 HOT, 3 COLD
AUDIO OUT L,R jacks (RCA phono type)
PHONES jack (Stereo 1/4-inch phone type) (headphones)
PHONES jack (Stereo miniature type) (headphones)
Input Level and Impedance
XLR/TRS: -68 to +4 dBu (Maximum: +22 dBu, 4 k ohms)
RCA phono: -10 dBu (Maximum: +8 dBu, 11 k ohms)
TRS: +4 dBu (Maximum: +22 dBu, 98 k ohms)
Output Level and Impedance
XLR: +22 dBu (Maximum: +22 dBu, 600 ohms)
RCA phono: -10 dBu (Maximum: +8 dBu, 1 k ohms)
Headphones: 25 mW + 25 mW, 20 ohms
Audio Formats
SDI: Linear PCM, 24bit, 48kHz, 2ch
* SMPTE 299M, SMPTE 272M-C
HDMI: Linear PCM, 24bit, 48kHz, 2ch
USB-AUDIO: Linear PCM, 16bit, 48kHz, 2ch
Audio Effects
Channel Effects: Compressor, Noise Gate, 3-Band EQ, Delay
Master Effects: Mastering, 3-Band EQ, Reverb

Others

Remote
Remote MIDI: 5 pin DIN type (IN, OUT/THRU)
RS-232C: D-sub 9 pin type x 1
Interface
USB2.0 port(host): Hi-Speed USB: Type A (for USB memory)
USB3.0 port(device): Type B for USB-VIDEO (Super-Speed/Hi-Speed), USB-AUDIO (Full-Speed)
Display
7 inch Graphic color LCD 800 x 480 dots (touch screen)
Power Supply
AC Adaptor DC 24V Secondary AC Adaptor DC 12 V to 16 V (XLR-4-32 type)
Current Draw
2.5 A (DC 24V)
Operation Temperature
+0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit
Accessories
AC Adaptor, Power Cord, Owner's Manual

Size and Weight

Width (W)
434 mm (17-1/8 inches)
Depth (D)
306 mm (12-1/16 inches)
Height (H)
149 mm (5-7/8 inches)
Weight
5.3 kg (11 lbs. 11 oz.)
