Rolls ABC904 Route Three Passive Stereo/Mono Guitar Pedal Switcher
Rolls ABC904 Route Three Passive Stereo/Mono Guitar Pedal Switcher
Rolls ABC904 Route Three Passive Stereo/Mono Guitar Pedal Switcher

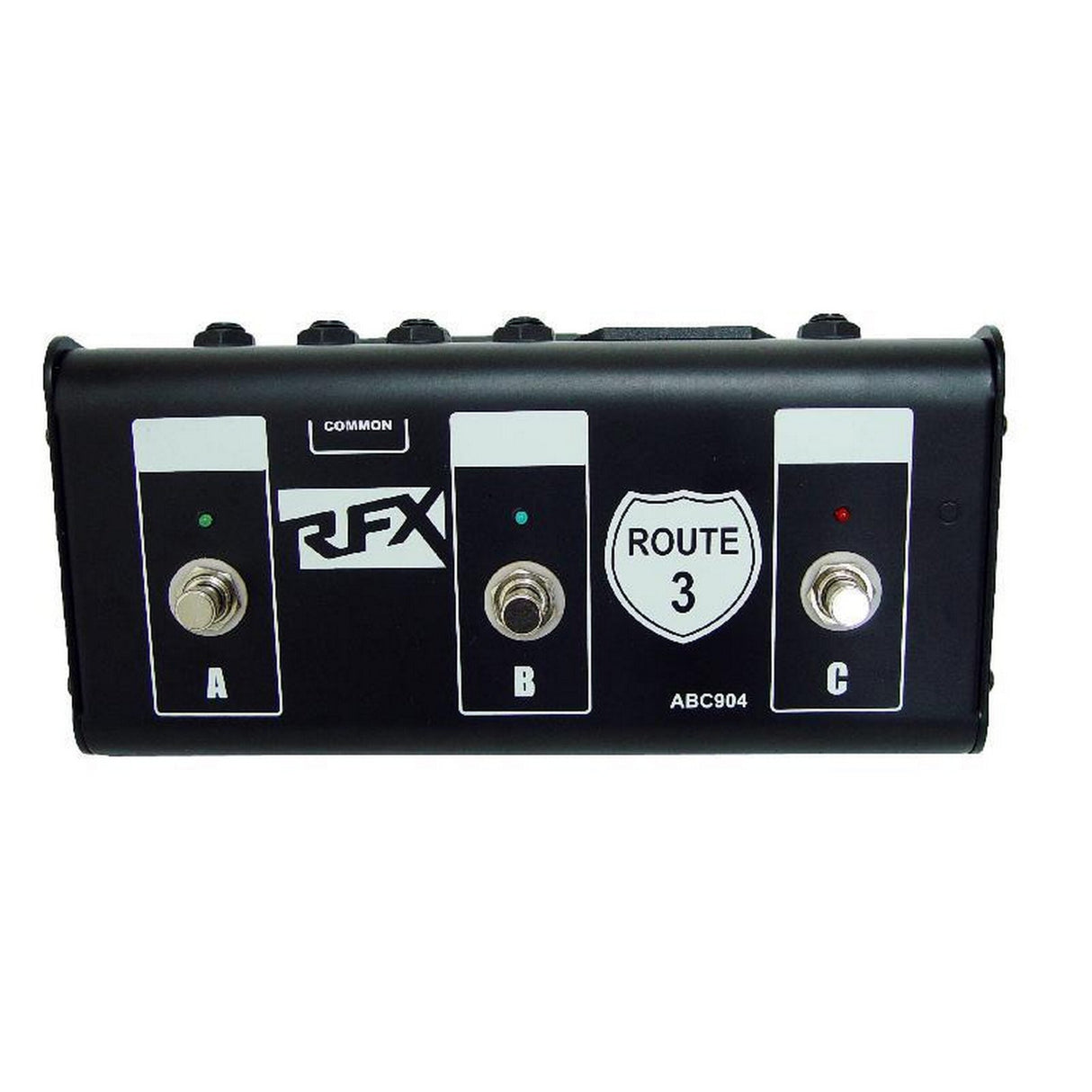

The ABC904 is a passive stereo or mono signal switching device designed to route a single signal to three outputs, or three input signals to a single output. For the guitarist, the ABC904 is used to select between three guitars to a single amplifier, or possibly a single guitar switched to three separate amplifiers.
Key Features
- 1/4ā Tip-Ring-Sleeve jacks
- Uses a single 9V battery to power the indicator LEDs
- Housed in a sturdy 13 gauge (.090 in.) steel chassis
Technical Specifications
Connectors
5 ea; 1/4ā Tip-Ring-Sleeve jacks
Indicators
3 ea; T1 LEDs (1 Green, 1 Blue, 1 Red)
Switches
3 ea; Triple pull / double throw push switches
Power
9 Volt (for the LEDs)
Size
4ā W x 1.9ā H (at highest point) x 4.13ā D
Weight
3 lbs.
