Rolls HRS84 FM Digital Tuner with XLR Outputs
Description
Description

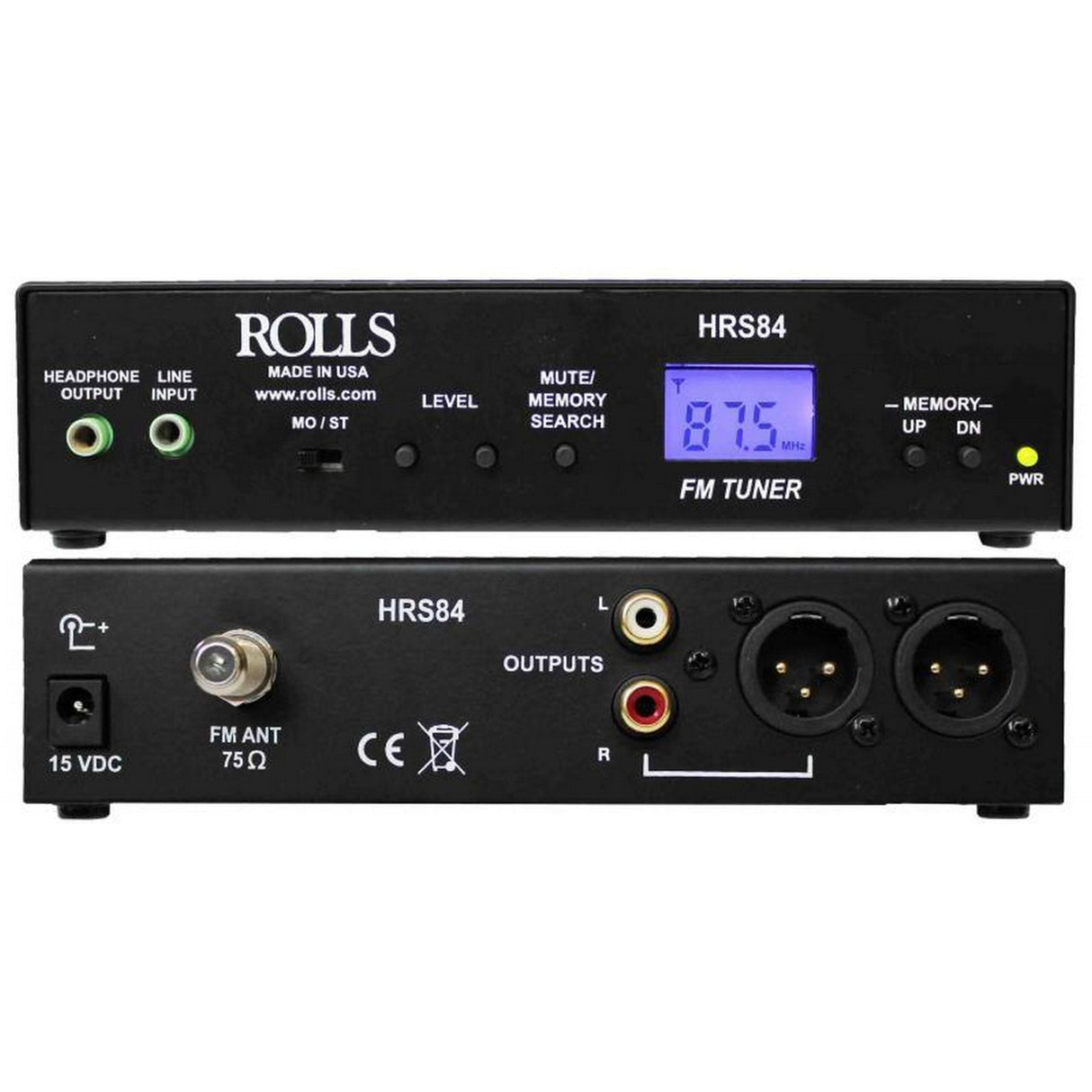

Rolls HRS84 FM Digital Tuner with XLR Outputs
The HRS84 is a digital FM tuner. It features professional line level XLR outputs. A dedicated headphone output on the front of the unit. Operates in Mono or Stereo. Up to two HRS84s can be rack mounted in a single standard 1U rack space, the Rolls URT5 (Universal Rack Tray), or the RMS270 Rack Module System.
Key Features
- Tuning Range: 87.5 - 108 MHz
- Output Level control
- XLR and RCA Outputs
- FM stereo or mono operation
Technical Specifications
30 dB quieting sensitivity
28 dB
Image Rejection 105.9 MHz
20 - 26 dB
3dB Limiting Sensitivity
28 - 35 dB
THD 1 mV Input
0.5 - 2 %
Auto Tuning Sensitivity 97.9 MHz
25 - 30 dB
Current
100 mA
Supply Voltage
12-15 VDC
Dimensions
6.75”w x 3”d x 1.6”h
Weight
1.1 lbs
