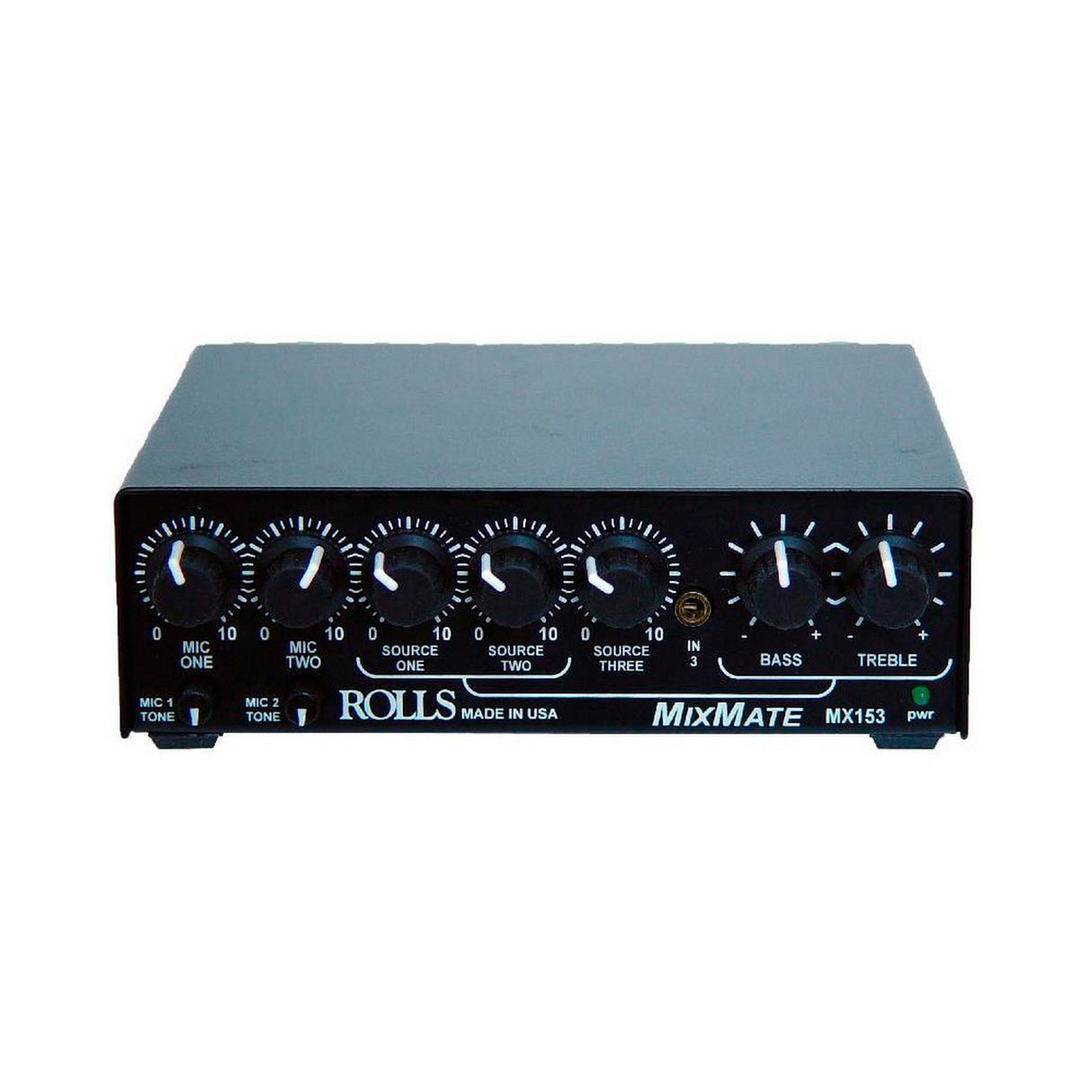

Rolls MX153 MixMate 1/2RU 2 Mic and 3 Stereo Source Mixer with PS27
Rolls MX153 MixMate 1/2RU 2 Mic and 3 Stereo Source Mixer with PS27
The Rolls MX153 is a one-half rack space, two microphone and three stereo source mixer. The unit provides a compact and efficient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones. Applications include background music and paging for small clubs, churches, schools, restaurants, etc.
Key Features
- Two Mic inputs with available phantom power
- Treble or Bass cut controls for each mic
- Three stereo source inputs
- Bass and Treble controls on source 1 and 2
- Signal muting (ducking) on mic 1 and source 3
- Switchable Mono or Stereo mode on unbalanced outputs
- Uses 12VDC power for easy use in mobile applications
Technical Specifications
Mic input Z 600 ohm balanced
Source input
Z >10K ohms RCA
Mic Max input
-14dBV
Max source input
24dBV
Phantom Voltage
12VDC
Max Gain
60 dBV mic
Max Gain
24 dBV/Channel source
Muting
60dBV
Power
12VDC 100Ma.
Size
6.5 x 1.5 x 5 (W x H x D)
Weight
2 lbs (.8Kg)
