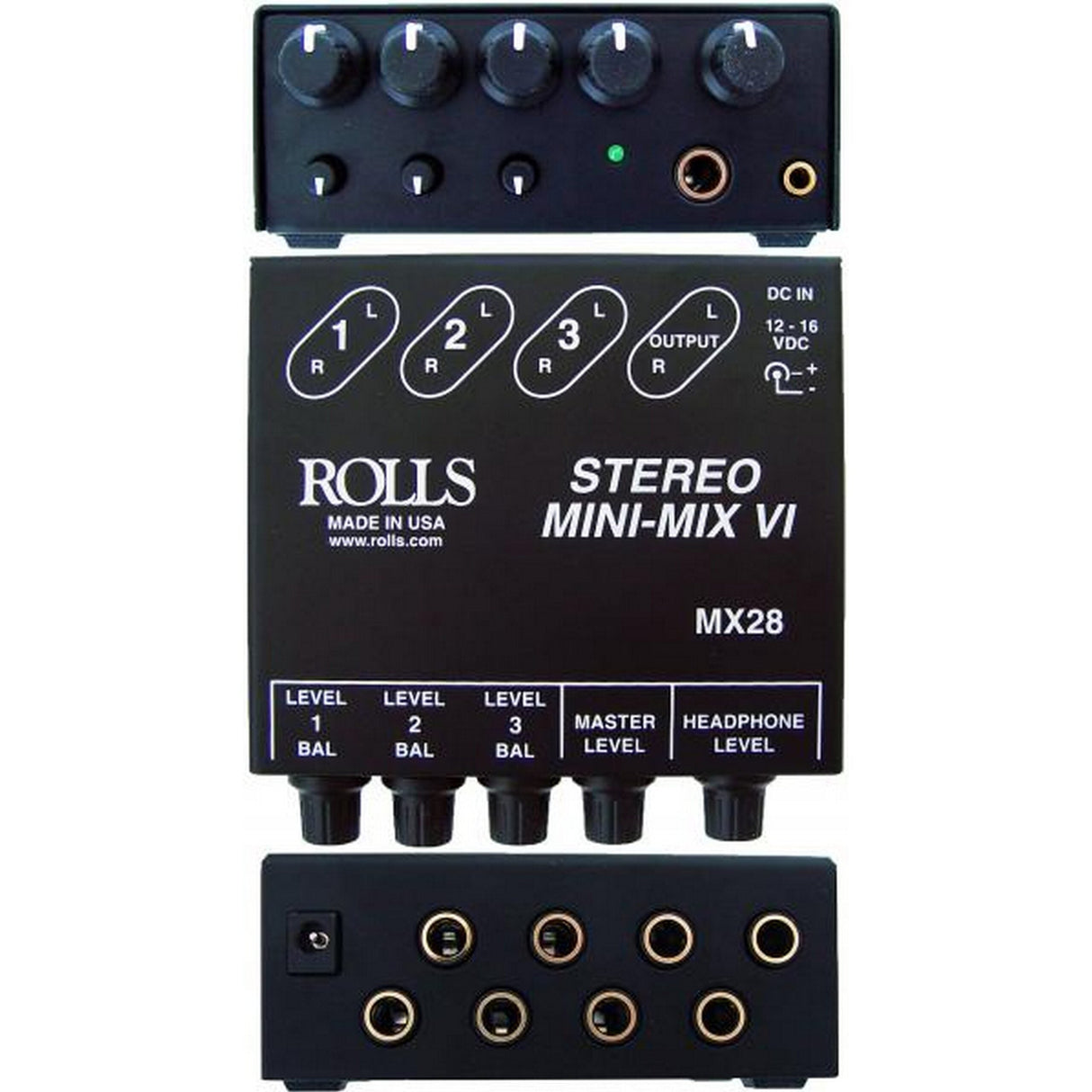

Rolls MX28 Stereo MINI-MIX VI 3 Channel Line Mixer
The MX28 is a three-channel true stereo line mixer. Each channel has an individual 1/4” input for the right and left sides, and the outputs are individual right and left 1/4” jacks. Each channel has a level and pan (balance) control. The Master Level controls the output volume and the Headphone Level controls the level to the two headphone outputs.
Key Features
- 3: Stereo 1/4” Stereo Inputs
- True stereo 1/4” outputs, unbalanced
- Two Headphone Outs (1/4” and 3.5mm)
- Pan control for each channel
Technical Specifications
Input Impedance
10K Ohms
Output Impedance
100 Ohms
Max Gain
+27 dBV
Max Input Level
+30 dBV
Max Output Level
+13 dB
Frequency Response:
20Hz - 20kHz +/- 1 dBV
THD + Noise
<.005%
Power
12 VDC 150 mA adapter (center negative)
Size
4.25” x 1.75” x 4.5” (WxHxD)
Weight
1.2 lbs. (.49 Kg)
