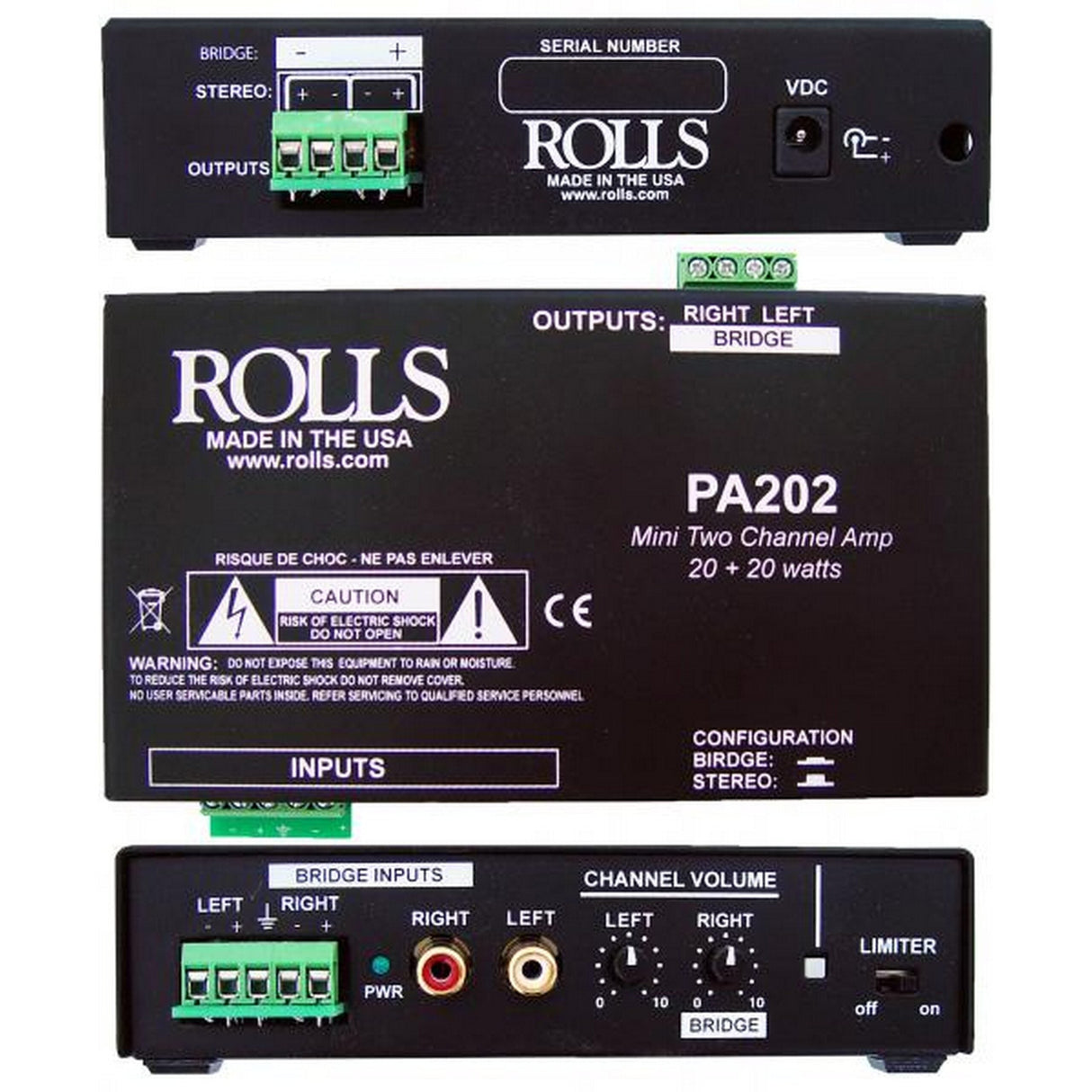

Rolls PA202 Stereo Class D Amplifier, 20 Watt
Rolls PA202 Stereo Class D Amplifier, 20 Watt
Small general purpose audio power amplifier for projector, ceiling mount, or rack monitoring. Great for boardroom and classroom applications. Ideal for small space installations where a larger amplifier won?t fit. Works with 4 or 8 ohm loads. Has bridge switch for higher power mono and a limiter. Included 24 VDC inline IEC power supply.
Key Features
- Small size with mounting tabs
- Balanced and Unbalanced Inputs
- Pheonix type input and output
- Low cost, helps win your bid
- Optical Limiter for maximum clean power output
- Bridge switch for 40W mono operation
- Included 24 VDC inline IEC power supply
Technical Specifications
Input Connectors
Screw Term & Dual RCA
Outputs Connectors
Screw Terminals
Max Gain
34 dB/Channel
Voltage Gain
32 dB
Bandwidth
20 - 25KHz
Input Sensitivity
28 mV
Included 24 VDC inline IEC power supply
Line Input Impedance
47K Ohms
Power Output
20 watts X 2 @ 4 Ohms, 40 watts bridge @ 8 Ohms
Maximum Supply Voltage
30 VDC
THD
.05% typical
EIN
3 mV
Efficiency
85%
Cooling
Conection Cooling (No Fans)
Standby and Idle Current Draw
.005/.01 Amps
Signal to Noise
>100 dB
Size
4.25 x 1.5 x 2.375 (W x H x D)
Weight
1 lb.
