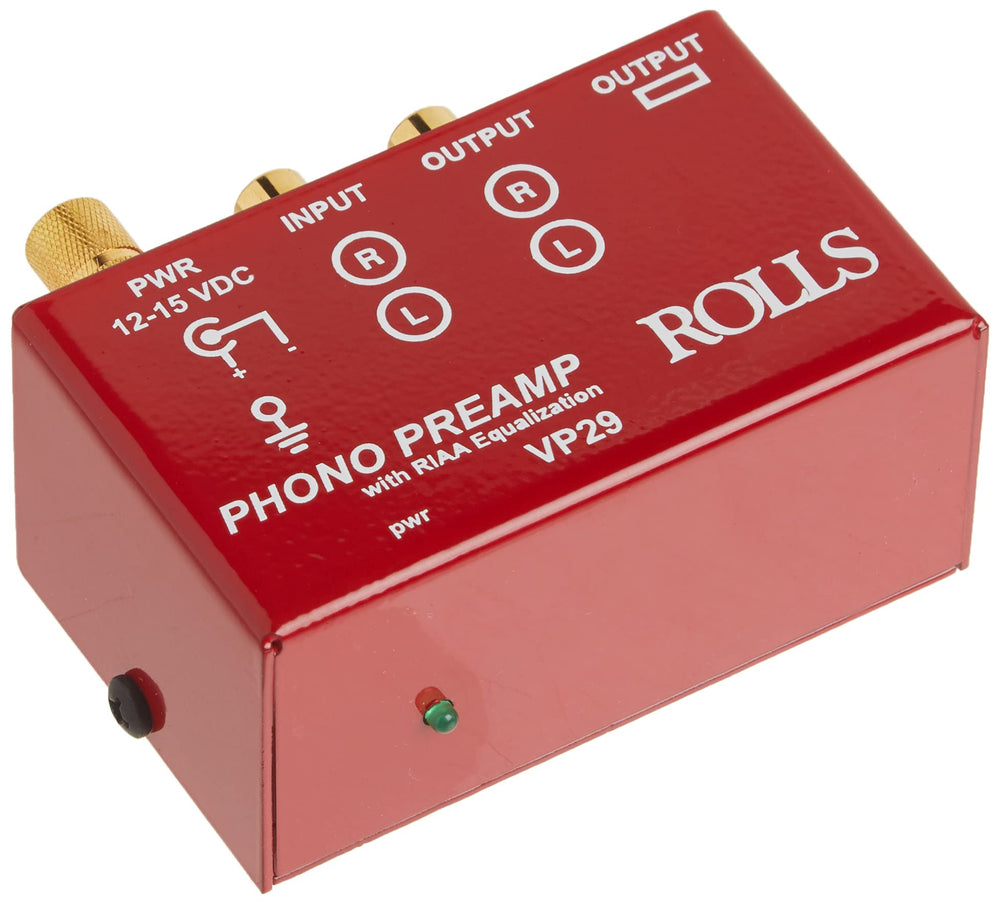

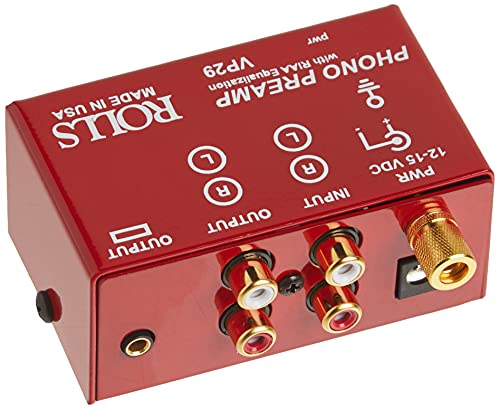

Rolls VP29 Phono Preamplifier
Description
Description
Rolls VP29 Phono Preamplifier
The VP29 is a brilliant phono preamplifier. Its circuitry is designed not only to provide the exact RIAA equalization curve, but smooth and quiet operation.
Technical Specifications
RIAA Equalization
RCA inputs/outputs - 1/8 inch (3.5mm) TRS output.
AC adapter included
Input Sensitivity
42 dB gain 1kHz, 47k Ohms
Input Capacitance
120pf
Sensitivity
5mV for 635mV output
Input Impedance
47k Ohms
Frequency Response
/ - .5 dB 20 Hz - 20 kHz (Conforms to RIAA Equalization Curve)
PWR
9 - 15 VDC
THD
.01% @ 1 kHz
S/N Ratio
>83 dB unweighted
Output Impedance
1K Ohms
Size
3.25" x 2" x 1.5"
