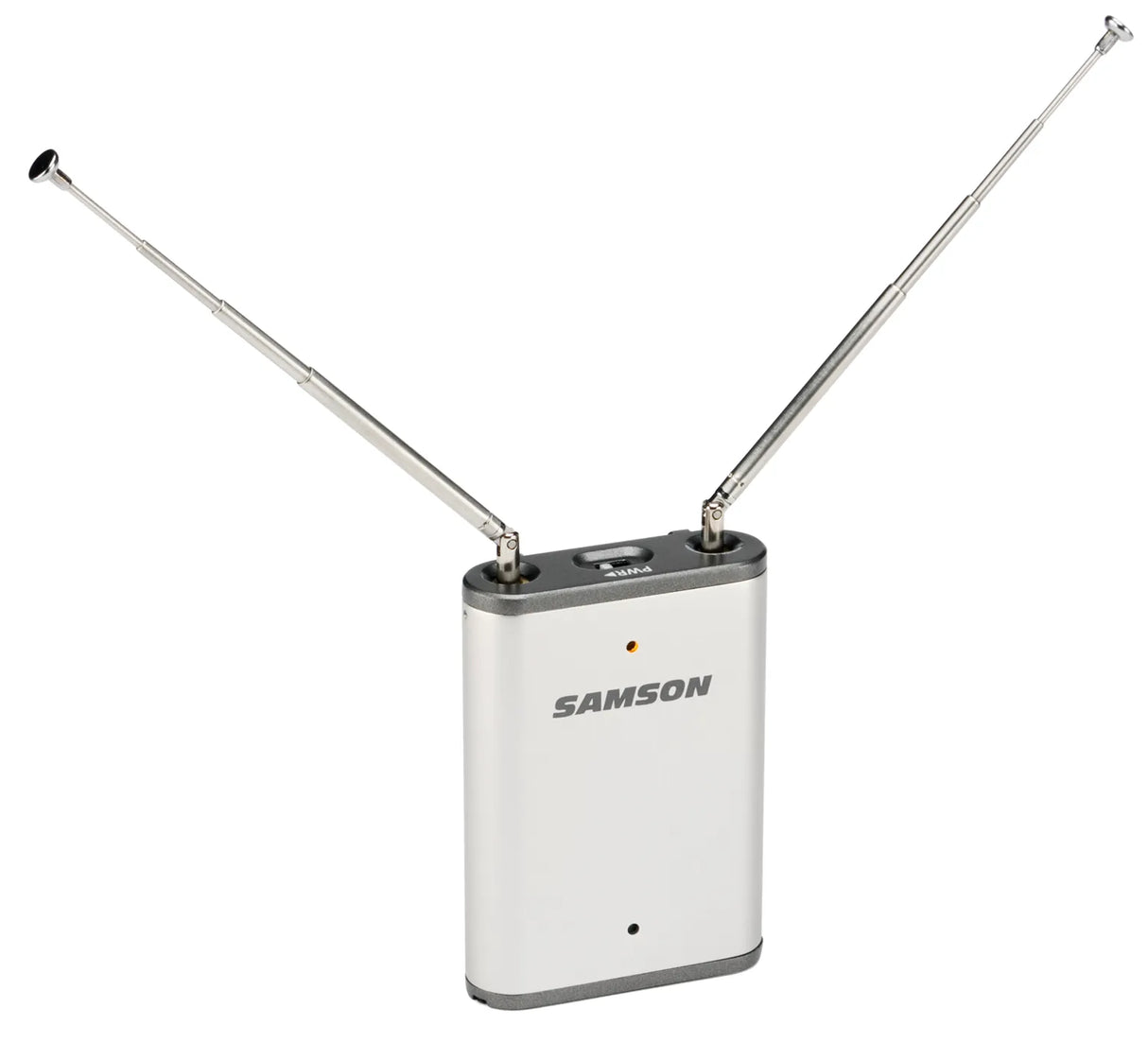

Samson AirLine Micro AR2 Wireless Receiver - K1: 489.050 MHz

Take your audio anywhere with the Samson AirLine Micro AR2 Wireless Receiver. Remarkably compact, the AR2 packs a punch with its 3.5mm unbalanced mic/line level output. Connect directly to mixers, PA systems, or portable speakers for seamless audio integration. Experience crystal-clear wireless performance thanks to tone key and auto-mute circuitry that eliminates noise, dropouts, and interference.

This version keeps the conversational tone while highlighting the portability, versatility (through the output options) and wireless performance (mentioning noise reduction features) of the AR2 receiver.

Key Features

• Compact Dimensions: Measuring only 2.36 inches by 1.67 inches by 0.51 inches, this wireless receiver offers exceptional portability and can be easily tucked away for a clutter-free setup.

• Uninterrupted Wireless Freedom: The integrated lithium-ion battery delivers up to 6 hours of continuous operation on a single charge, ideal for extended use throughout the day without worrying about running out of power.

• Always Ready to Use: The receiver supports both USB DC input for convenient power and charging, ensuring your device is always ready to use whenever you need it.

• Seamless Audio Integration: The 3.5mm unbalanced microphone/line level output allows for effortless connection to a variety of audio devices, enhancing your setup's functionality.

Technical Specifications

AR2 Receiver
Audio Output Connector
1/8” Unbalanced
Audio Output Level (Typical)
-30dBv (Mic), -10dBv (Line)
Audio Output Impedance
Unbalanced 600 Ohms
AF Frequency Response
50Hz - 15kHz
Antennas
Two 1/4 Wavelength Rod
Selectivity
±150kHz (AF Out Ratio -60dB)
S/N Ratio (Overall)
90dB (w/IHF-A Filter)
Sensitivity
18dBu (@ THD 2%)
Power Requirements
Internal lithium-ion rechargeable battery or AC adaptor
Battery Life
~6 hours
Indicators
Power On, Tone Key, Transmitter Mute, Transmitter Peak, Battery Low, Recharging
Dimensions (LxWxH)
1.7” x 0.51” x 2.4” / 43 mm x 13 mm x 60 mm
Weight
1.5oz / 42g

Installation / Use Cases

• Use as a compact wireless receiver for compatible Samson AirLine Micro wireless systems.
• Suitable for portable audio setups, presenters, performers, instructors, fitness users, and mobile sound applications.
• Use the 1/8-inch unbalanced mic/line output to connect to compatible mixers, PA systems, or portable speakers.
• Use tone key and auto-mute circuitry to help reduce noise, dropouts, and interference.
• Use the internal lithium-ion rechargeable battery for up to about 6 hours of operation.
• Use USB DC input for convenient power and charging.
• Use the compact receiver body for low-profile setups where space is limited.
• Available in K1, K2, and K3 frequency band options.
