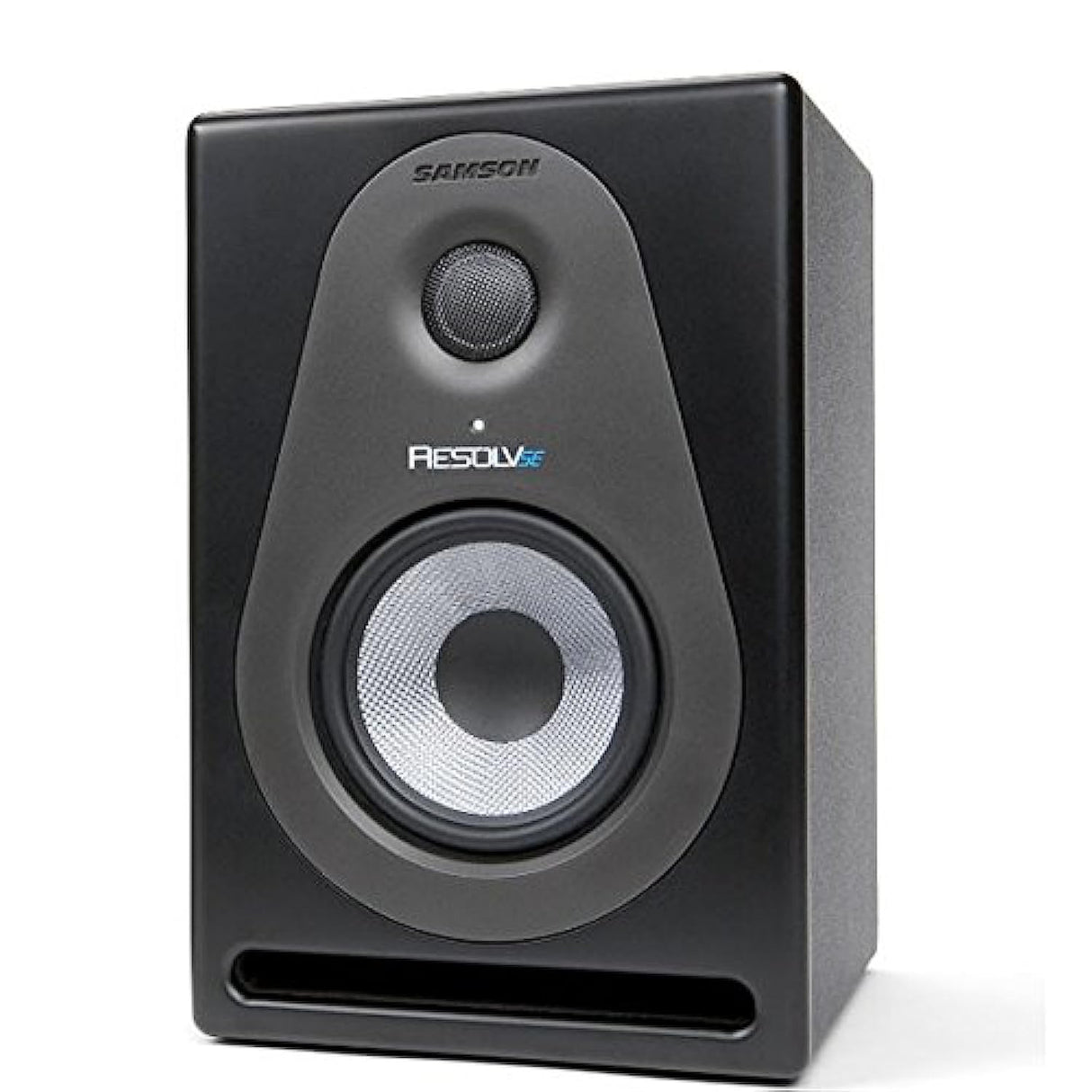

Samson Resolv SE5 5 Inch Two-Way Active Studio Reference Monitor

Studio Enhanced.
Samson’s Resolv SE5 2-Way Active Studio Reference Monitor offers a redesign from the classic Resolv A-Series monitor, with more accurate sound reproduction and a stylish new look. Resolv SE5 utilizes the latest innovations in speaker engineering, which can be used with multiple monitors to provide superb stereo imaging for recording, post-production and other multimedia applications.

Producing 70 watts of power, Resolv SE5 includes a dedicated power amp and electronic crossover that provide accurate tonal balance. The new 5-inch woven carbon fiber woofer provides tight and controlled low frequency response, while its 1.25-inch soft dome tweeter gives the high frequencies a true, natural sound without unwanted resonance. Resolv SE5 also includes a 4-position high frequency lift control that allows the monitor to be optimized for different mixing environments, and is AV shielded for operation near CRT monitors and other sensitive electronics.

This new-look enclosure is constructed of solid MDF (Medium Density Fiberboard) and feature an elegant finish on the front panel. Inset into the panel is a sleek, time-aligned waveguide that allows for a wide listening area with minimum diffraction. In addition, its slotted front ports with rounded inner edges help reduce port noise at high SPLs.

A pair of Resolv SE5s is the perfect monitor setup for any recording studio. Tracking vocals, instruments and sound design elements are a breeze with these pro-level monitors, as you’ll be able to hear every nuance with impeccable precision and make adjustments for the best possible performance. In the end, Resolv SE5s will help you get the sound you want from the start and save you valuable time in post-production.

Key Features

• 2-way active studio reference monitor with ported tuned enclosure (sold individually)
• 70 watts of power
• 5-inch woven carbon fiber woofer
• 1.25-inch soft dome tweeter with neodymium magnet
• 50Hz-27kHz frequency response
• Active crossover with multi-pole design for linear response
• 4-position high frequency lift control
• Balanced 1/4-inch inputs, unbalanced RCA inputs
• AV shielded for use with sensitive electronics
• Solid MDF (Medium Density Fiberboard) construction

Technical Specifications

Woofer
5” woven carbon fiber
Tweeter
1.25” Silk Dome
Enclosure Type
2-way Bass Reflex System
Enclosure
Vinyl wrapped 3/4” (18mm) MDF cabinet with painted front baffle
Frequency Response
45Hz - 27kHz +/-3dB
Crossover Frequency
3.19kHz 24dB/oct Linkwitz-Riley
Output Power
HF - 20 Watts RMS
LF - 50 Watts RMS
Input Connectors
Unbalanced - RCA
Balanced - ¼” TRS Phone
Input Impedance
10k ohm
Controls
VOLUME Control
HF LEVEL (-2dB, 0dB, +2dB, +4dB)
Power Consumption
125W
Fuse
100V - 120V T1.6AL (slow blow)
220V - 240V T800mAL (slow blow)
