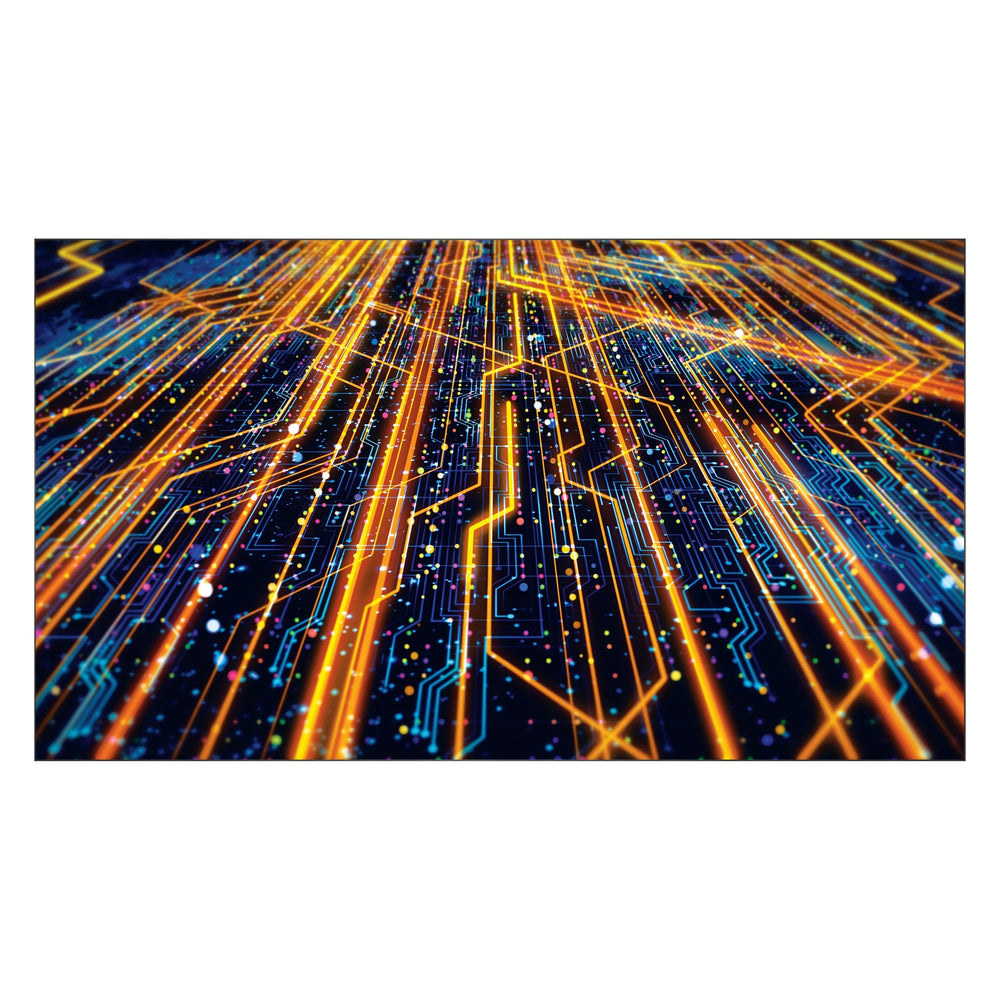

Samsung IAC 130 2K 130-Inch All-in-One LED Display
Samsung IAC 130 2K 130-Inch All-in-One LED Display
Samsung IAC 130 2K 130-Inch All-in-One LED Display
This is the true all-in-one
Discover a true all-in-one LED display. Experience easier installation than ever with Samsung's exclusive Quick Build technology. It takes as little as two hours to install a giant screen in your space. All you have to do is enjoy its brilliant performance. This is Samsung's all-in-one experience.*
* Install time estimate based on internal testing.
Quick install. Big impact.
With its Quick Build structure, Samsungās all-in-one LED IAC series offers a drastically simplified installation unlike anything seen before. Dock the two background plates and hang just four preset modules - that's it! In as little as two hours, you'll have a giant 130-inch screen that transforms your space into a viewer's dream.
Auto configuration setup
Time-consuming configuration between control box and cabinet is no longer needed. The IAC series eliminates a cumbersome configuration process by integrating the control box so it's built into the display, getting it up and running faster than ever before.
No extra peripherals needed
Samsungās IAC series includes everything you need to begin operations ā from the control box and wall brackets to speakers and dĆ©cor bezels. No additional purchases or components are required.
Best-in-class LED picture quality
Drawing on Samsungās industry leadership experience and years of innovation in visual display technology, the IAC series produces images with vivid color expression, reduced noise, and a full range of grays and blacks.
Clearly refined visuals
LED HDR turns any content into HDR-level quality without requiring special metadata. Samsung's Dynamic Peaking technology analyzes content in real-time and manages power consumption, producing a brilliant eye-catching display against any background.
Bring content to a bigger screen
Deliver your vision on a bigger screen. Samsung's IAC series allows users to combine multiple side-by-side displays simultaneously, expanding the possibilities for presentations in large meeting spaces.
Key Features
- Samsungās All-in-One IAC 130" 2K Display includes everything you need: built-in control box, wall brackets, speakers and dĆ©cor bezels.
- Quick Build Technology offers simplified installation that can be completed in as little as two hours.
- LED HDR produces images with vivid colors, reduced noise, and full range of grays and blacks.
Technical Specifications
Pixel Pitch
1.5 mm
Pixel Configuration
1 red, 1 green, 1 blue
Diode Type
Surface Mount Device (SMD)
Configuration (LxH, per screen)
1920 x 1080 pixels
Dimensions (inch, per screen)
113.7 x 64.1 x 2.2 inches
2.4 inches total depth with wall mount
No. of Modules (WxH, per screen)
12 x 9
Weight (per screen)
275.6 lbs
Dimensions (inch, DiagonalxD, per screen)
130 x 2.2 inch
Brightness (Peak / Max)
1,000 nit / 500 nit
Contrast Ratio
6,000 : 1
HDR Compatibility
LED HDR / AI Picture
Viewing Angle - Horizontal
160Ā°
Viewing Angle - Vertical
160Ā°
Bit Depth
16 bit (Internal processing 20bit)
Color Temperature (Default)
6,500K Ā± 500K (Floating bin)
Color Temperature (Adjustable)
2,800K ~ 10,000K
Video Rate
50/60 Hz
Input Power Range
100~240 VAC, 50/60 Hz
Power Consumption (Max)
1700 (W/Screen)
Power Consumption (Typical)
685 (W/Screen)
Power Consumption - Standby
less than 0.5W
Heat Generation - Typ
2337 (BTU/Screen)
Refresh Rate
3,840 Hz
Heat Generation - Max
5800 (BTU/Screen)
Visual Refresh Rate
7,680 Hz
Working Temperature / Humidity
32Ā°~+104Ā° / 10%~80%RH
Storage Temperature / Humidity
-4Ā°~+113Ā° / 5%~95%RH
IP Rating
IP20
LED Lifetime
100,000 hours
Package Weight (per Cabinet)
463 lbs
Box Dimension (inches, WxHxD)
72.4 x 72.7 x 23.4 inches (without pallet)
72.8 x 78 x 32.1 inches (with pallet)
Safety
62368-1, 60950-1
EMC
Class A
Eye-protection
TUV Eye Comfort
Operating System
Tizen 6.5
MagicINFO
Yes
Sensor
Temperature, Humidity, Eco Sensor
Other
AI Picture, LED HDR, Dynamic Peaking
Other SW Features
Workspace (Microsoft365/VMWare/RDP), Auto Source Switching & Recovery, Dicom Simulation Mode, SmartView+
Connectivity / Sounds Controller
Built-in
Input (Video)
DP 1.2 (1), HDMI 1.4 (3), USB 2.0 (2)
Output
Audio (Stereo mini Jack) / eARC
WiFi / BT
Yes
External Control
RS232C(in), RJ45
Speaker
10W 2ch
Accessories
DĆ©cor Frame, Frame Kit, Buffer parts
Remote Control
IR Remote Cotroller
Special Installation
Side by Side Installation with additional frame kit (up to 4 screens)
