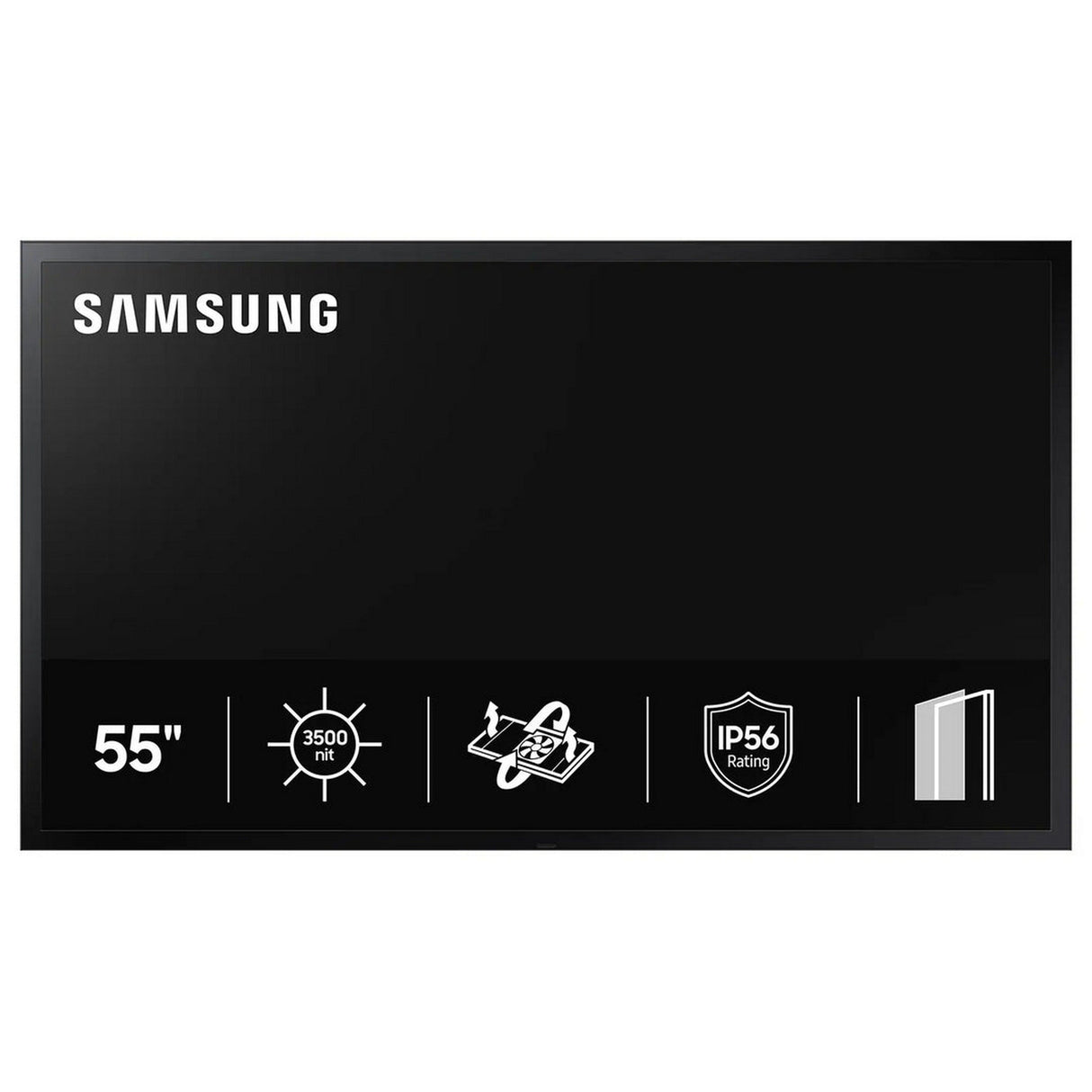

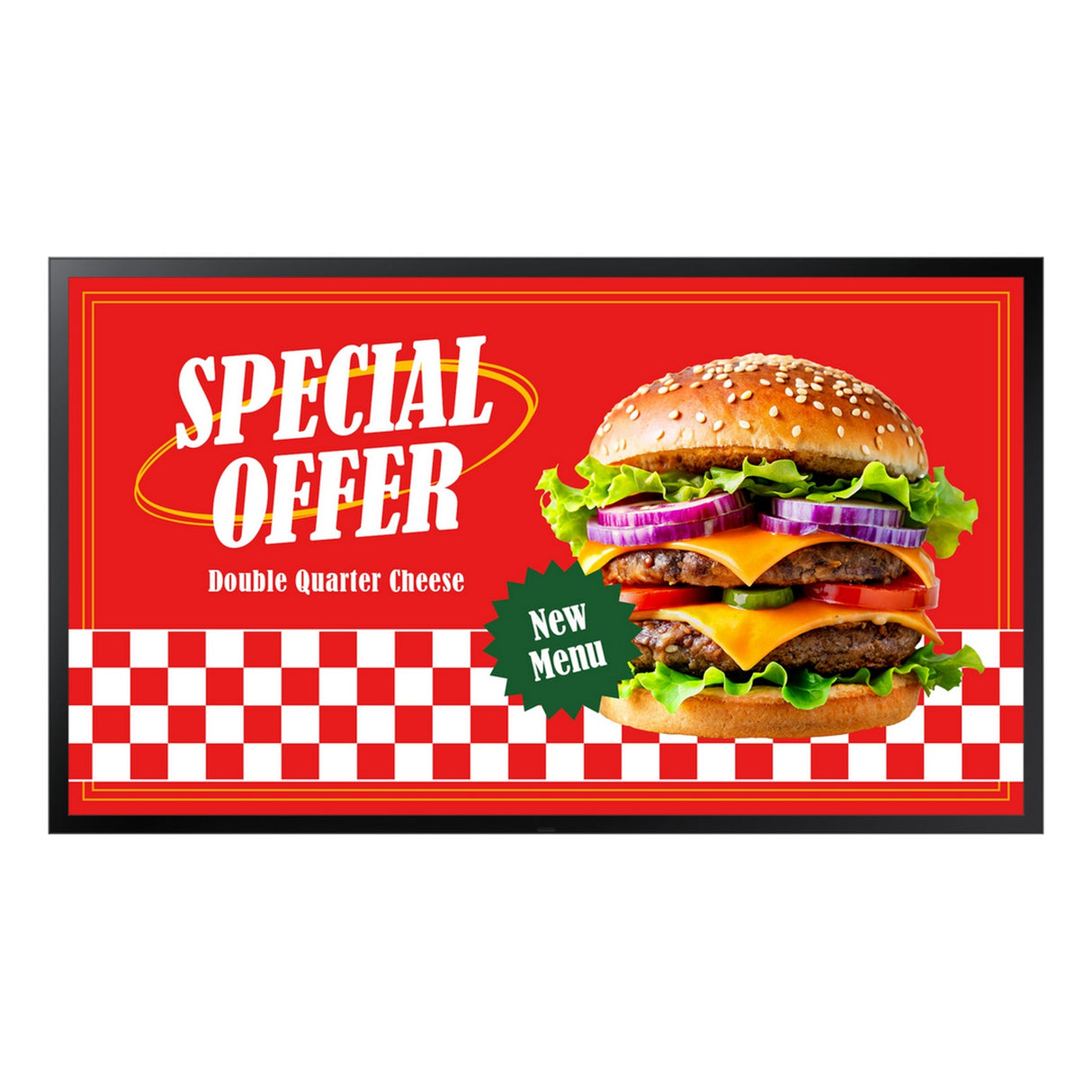

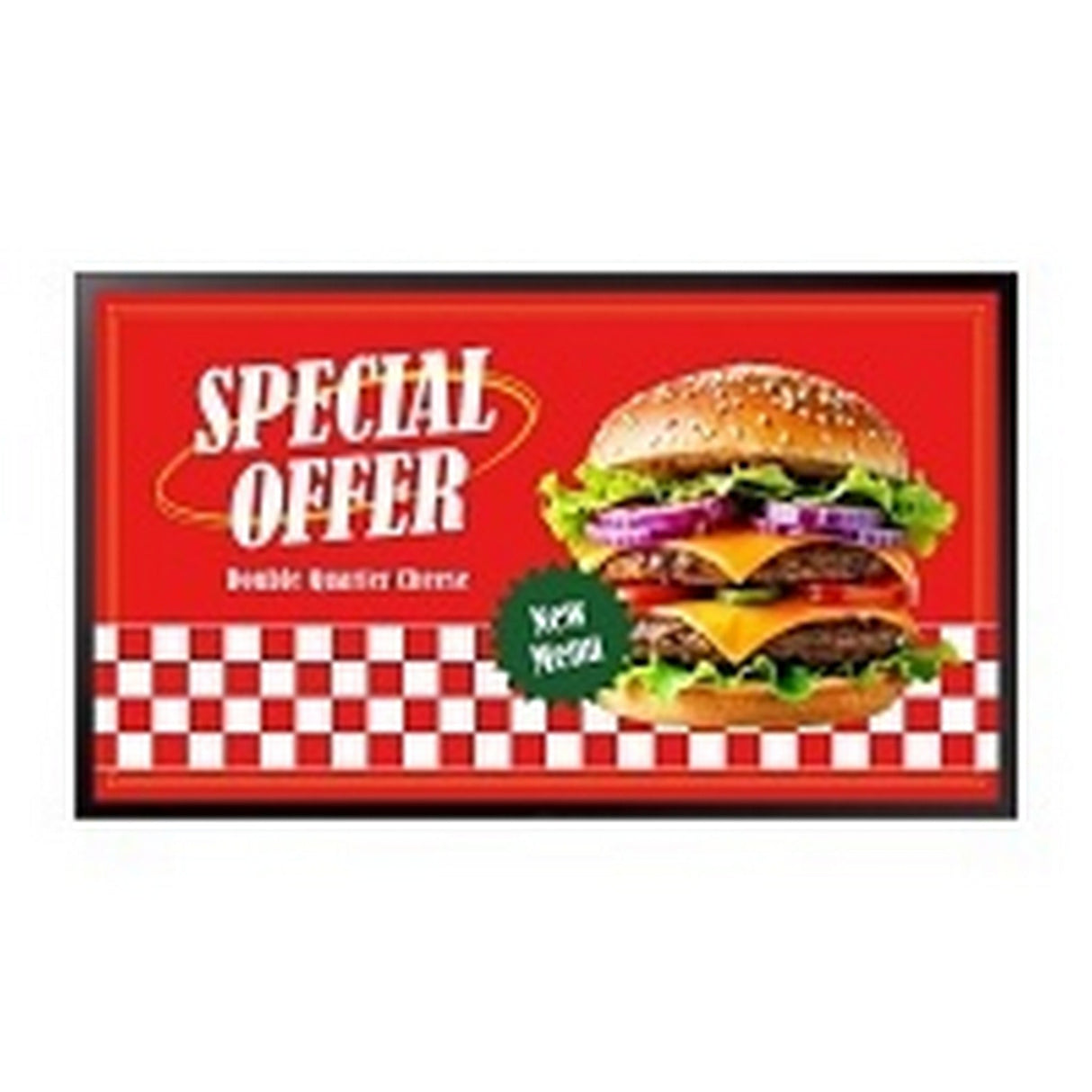

Samsung OHDX Series Outdoor Signage Display

The Samsung OHDX Series Outdoor Signage Display is engineered for high visibility and durability in demanding outdoor environments. Available in 55 inch and 46 inch configurations, it delivers bright, vivid full HD content that remains clear and readable even in direct sunlight. With a robust enclosure and all weather protection, it is designed for reliable 24/7 operation in front of storefronts and other public facing spaces.

Featuring a typical brightness of 3500 nit and peak brightness up to 4000 nit, the OHDX series ensures that your message stands out in a wide range of lighting conditions. Advanced heat dissipation helps protect internal components from thermal stress, while support for landscape or portrait orientation provides flexibility in installation. Integrated sensors and protection features help maintain stable performance over long duty cycles.

The OHDX series also supports SmartThings Pro and Samsung VXT for remote management and content control, allowing operators to manage displays, schedule content, and optimize power usage. With IP56 rated protection, IK10 impact resistance, and a polarized sunglasses viewable panel, these displays are built to deliver consistent, professional quality outdoor signage in commercial and retail environments.

Key Features

• High brightness outdoor display: 3500 nit typical brightness with up to 4000 nit peak output for clear viewing in direct sunlight.
• Rugged weather resistant design: IP56 rated enclosure with IK10 impact resistance for demanding outdoor environments.
• Advanced heat dissipation: Optimized internal structure and airflow help reduce heat related stress for stable long term operation.
• Flexible installation options: Supports both landscape and portrait orientation to suit different signage layouts.
• Smart management and control: Compatible with SmartThings Pro and Samsung VXT platform for device, power, and content management.
• Integrated sensors and protection: Brightness and temperature sensors plus Kensington Lock support for enhanced usability and security.
• Built in media platform: Onboard player with Tizen operating system for signage applications and network control.

Technical Specifications

• Models: OH55DX S (55 inch), OH46DX (46 inch)
• Screen size class: 55 inch and 46 inch
• Resolution: 1920 x 1080 full HD, 16:9
• Brightness (typical): 3500 nit (peak 4000 nit)
• Contrast ratio (typical): 6000:1
• Panel type: VA

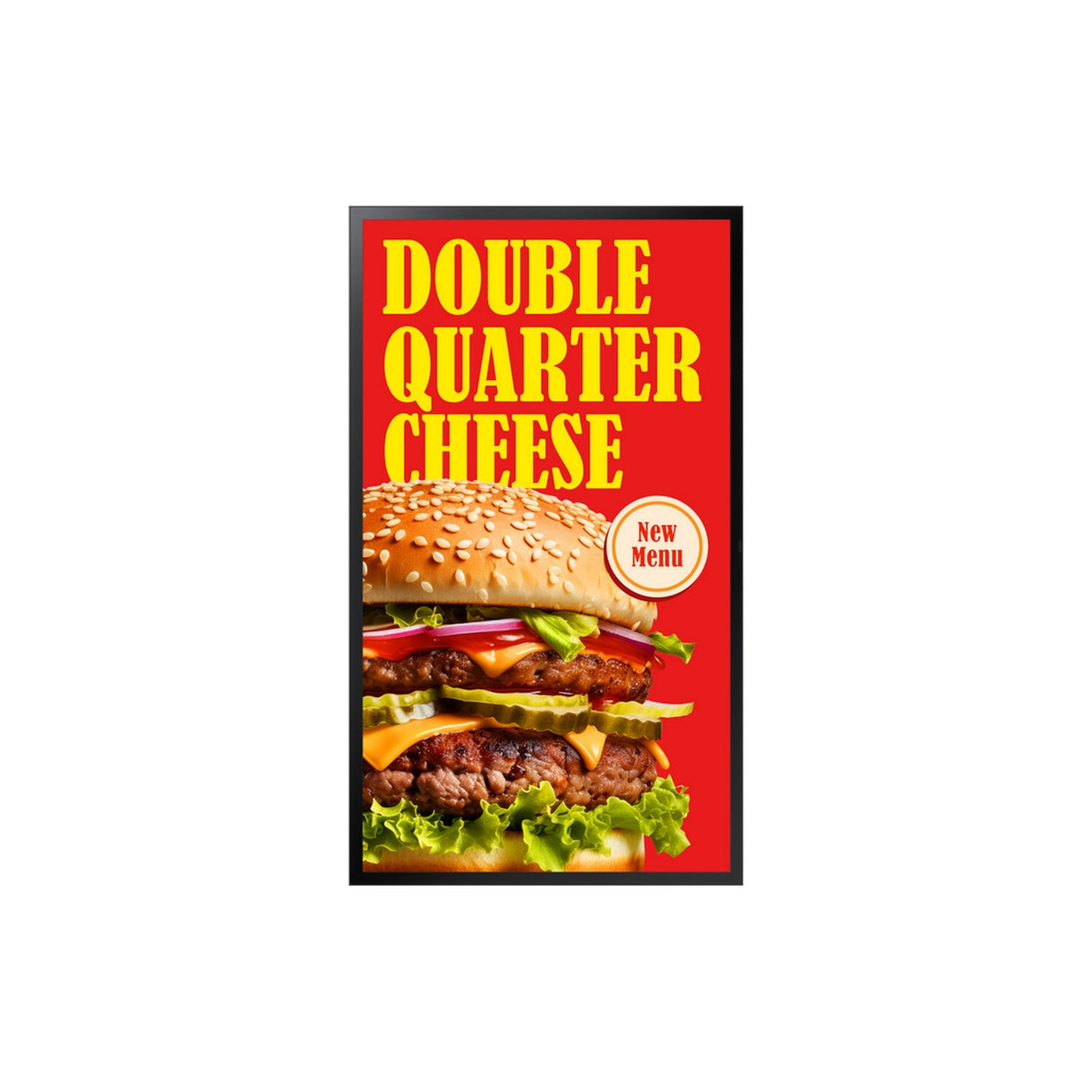

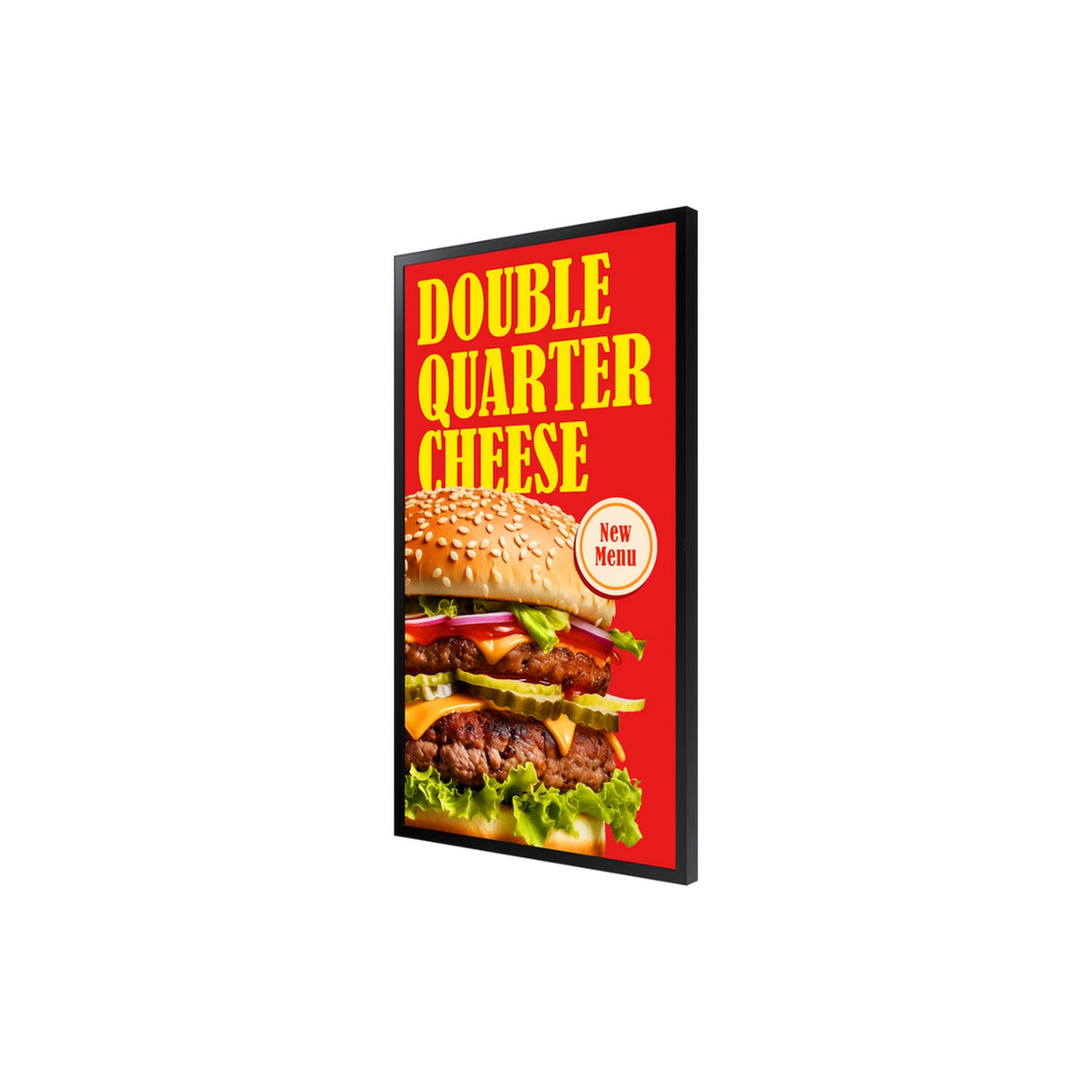

• Orientation: Landscape or portrait
• Active display area 55 inch: 1209.60 mm x 680.40 mm
• Active display area 46 inch: 1018.08 mm x 572.67 mm
• Pixel pitch 55 inch: 0.630 mm x 0.630 mm
• Pixel pitch 46 inch: 0.53 mm x 0.53 mm
• Color gamut: 72 percent (typical)
• Operation hours: Rated for 24/7 operation

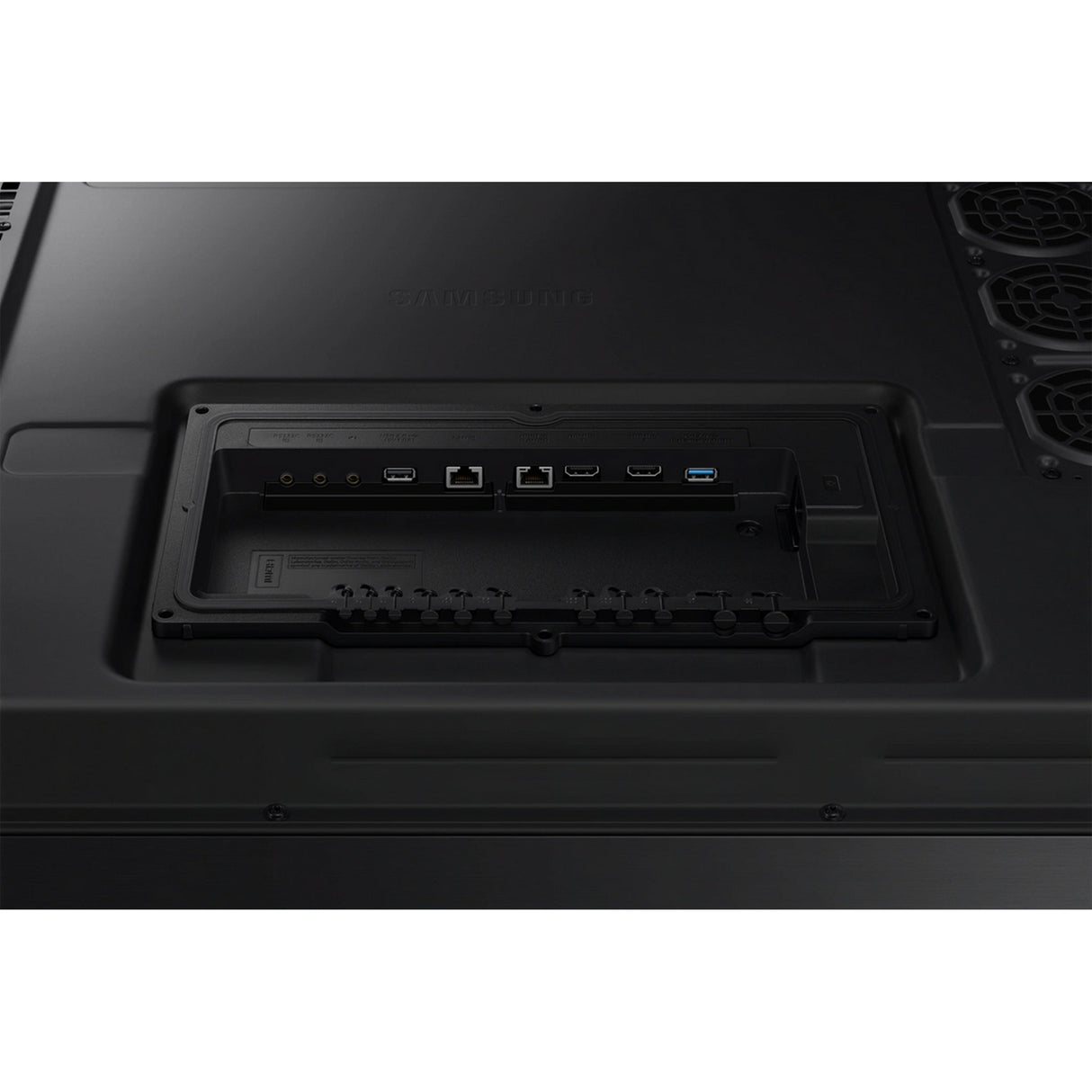

• Video inputs: HDMI 2.0 x 2, HDBaseT (shared with LAN)
• USB ports: 2 x USB
• Audio output: Stereo mini jack
• External control: RS232C in and out, RJ45 in and out, HDBaseT
• WiFi and Bluetooth: Supported via external module
• Integrated speakers: Not included
• IP rating: IP56 rated outdoor design
• Impact protection: IK10 rated front glass
• Special hardware features: Polarized sunglasses viewable, brightness sensor, temperature sensor, Kensington Lock
• Special software features: Auto source switching and recovery, RJ45 MDC control, support for MS365 and Vmware
• Internal player OS: Tizen 6.5 or Tizen 8.0 (model dependent)
• Storage: 8 GB (approximately 4.12 GB available for content)
• Power supply: AC 100 to 240 V, 50 to 60 Hz
• Sleep mode power: 0.5 W (typical)
• Bezel color: Black
• Bezel width: 24.9 mm
• VESA mount pattern 55 inch: 1186 mm x 560 mm, M8 screws, 9 to 11 mm depth
• VESA mount pattern 46 inch: 995 mm x 500 mm, M8 screws, 9 to 11 mm depth

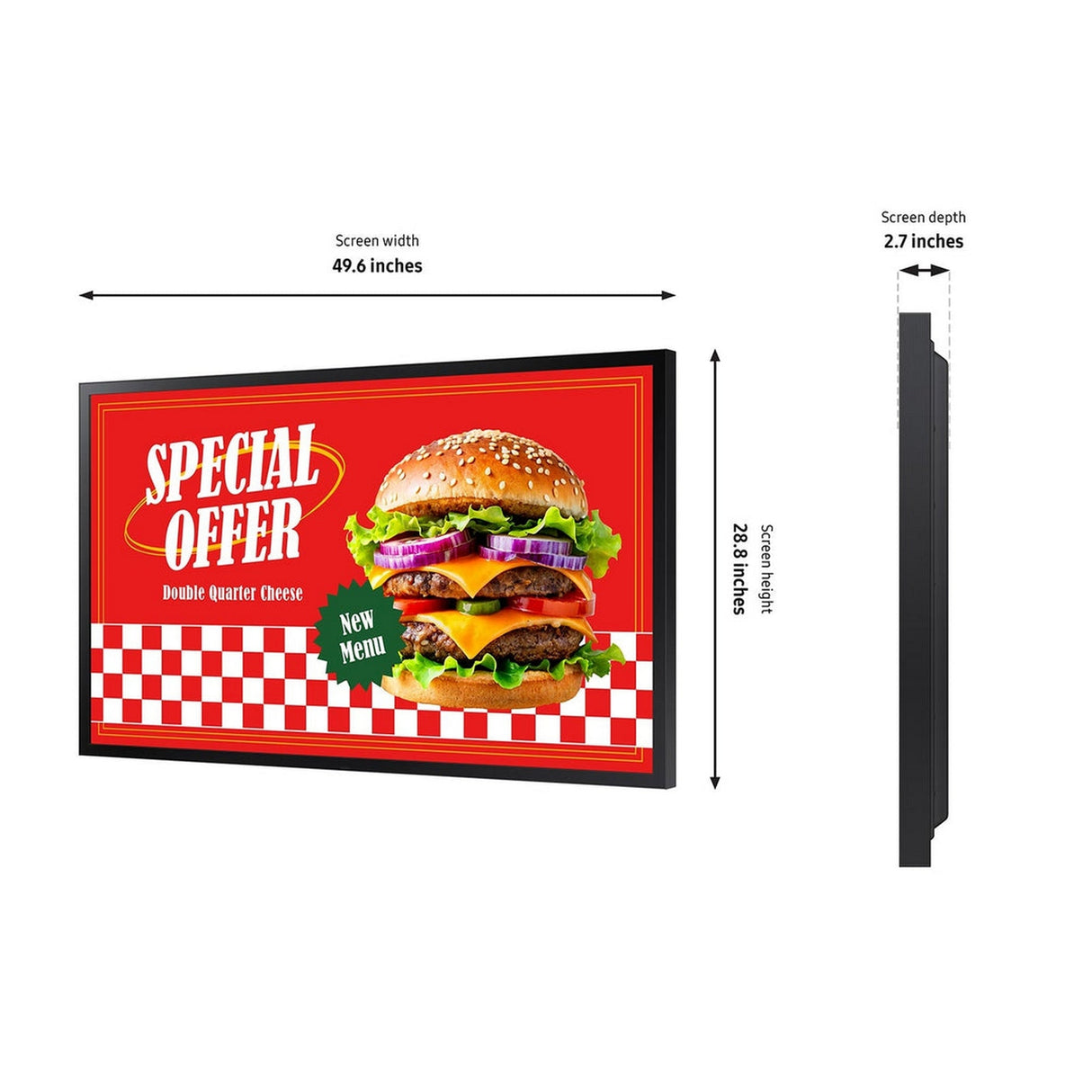

• Set dimensions 55 inch (W x H x D): 1260.6 mm x 731.4 mm x 69.0 mm
• Set dimensions 46 inch (W x H x D): 1069 mm x 623.6 mm x 69.0 mm
• Operating humidity: 10 percent to 80 percent non condensing
• Safety certifications: 60950 1, 62368 1
• EMC rating: Class A
